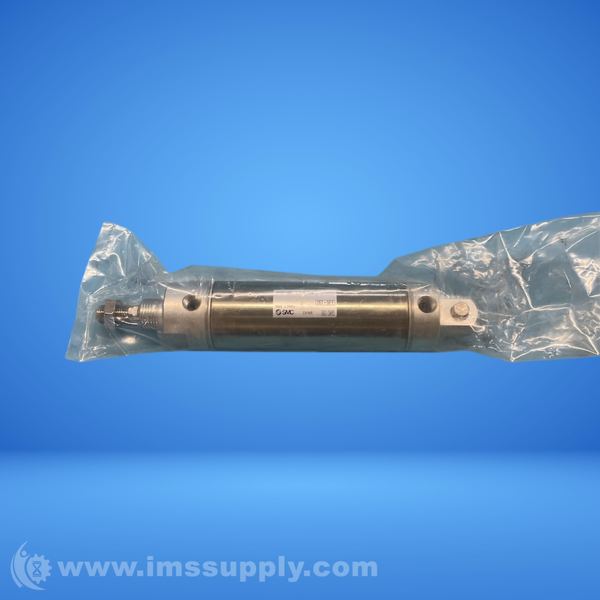

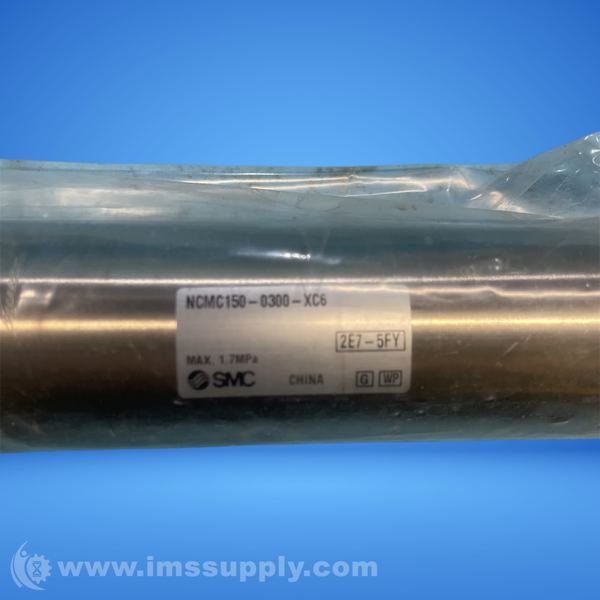

SMC NCMC150-0300-XC6 STAINLESS STEEL AIR CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: NCMC150-0300-XC6
IMS Product Code: 1405512
Packaging: Sold Individually
Description:
SMC NCMC150-0300-XC6 Stainless Steel Air Cylinder
Double-acting single rod air cylinder with stainless steel body and rod, 1.5 inch bore diameter, 3 inch stroke, rear pivot mount.
Specifications
- Series: NCM
- Bore Diameter: 1.5 in
- Stroke: 3 in
- Piston Action: Double-Acting
- Rod Type: Single Rod
- Rod Size / Thread: 7/16-20 Male UNF
- Cushion Type: None
- Port Size: 1/8 NPT
- Operating Pressure Range: 8 psi to 250 psi
- Push Force At 100 Psi: 176.7 lbf
- Pull Force At 100 Psi: 161.7 lbf
- Operating Temperature Range: 40 F to 140 F
- Overall Length: 8.5 in
- Overall Width: 1.56 in
- Body Material: Stainless Steel
- Port Thread Standard: NPT
- Mounting Type: Rear Pivot Mount
- Rod Gender: Male
- Rod Size: 0.4375 in
- Rod Thread Standard: UNF
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 4 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
