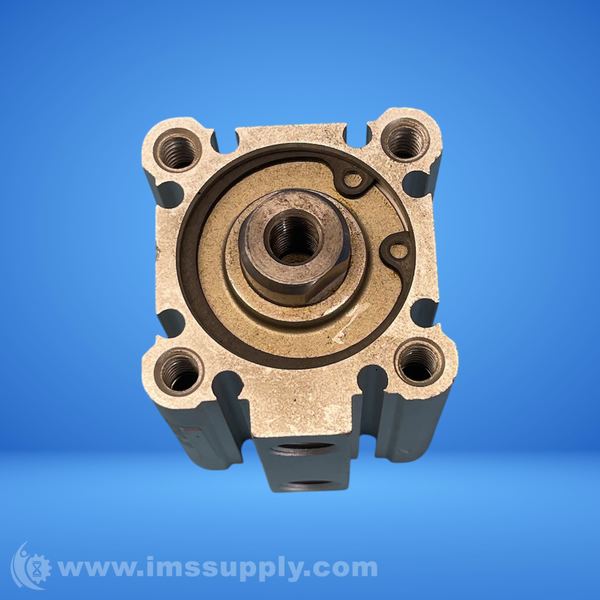

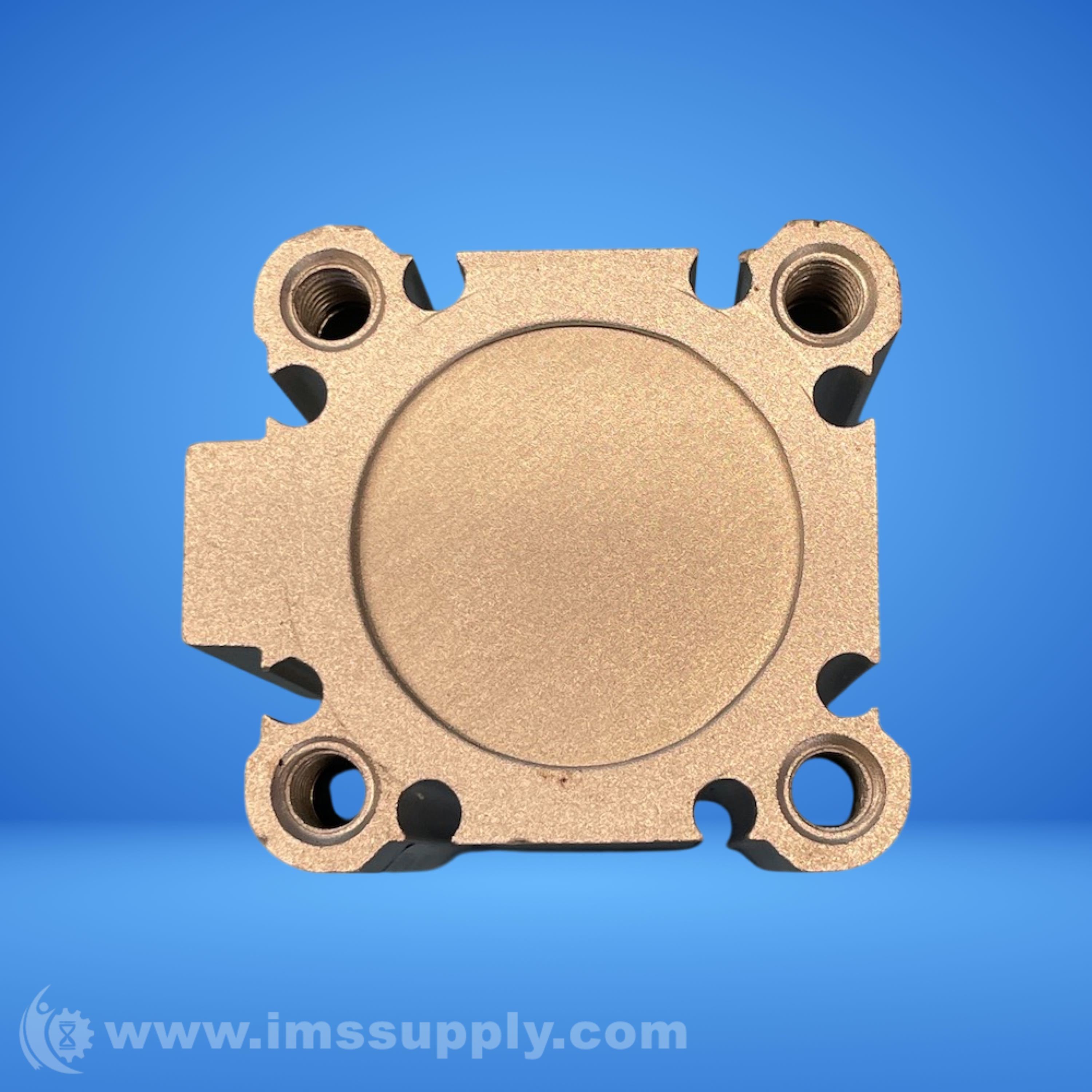

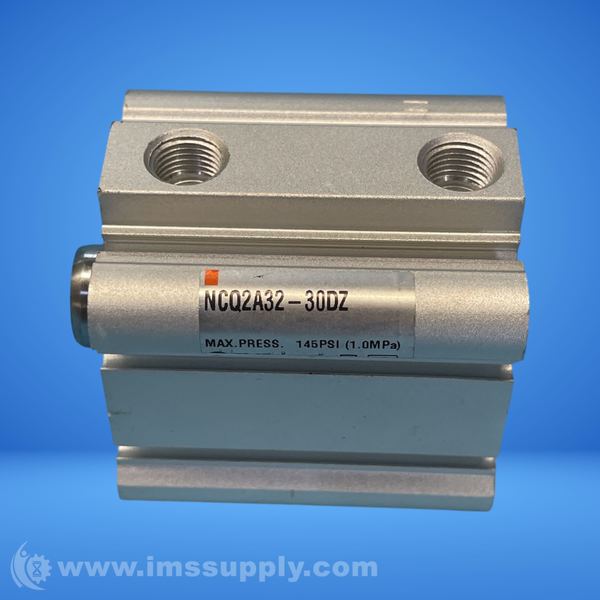

SMC NCQ2A32-30DZ COMPACT CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: NCQ2A32-30DZ
IMS Product Code: 2129851
Packaging: Sold Individually
Description:
SMC NCQ2A32-30DZ Compact Cylinder
Double-acting, single rod, compact pneumatic cylinder with 32 mm bore size and 30 mm stroke.
Specifications
- Bore Diameter: 32 mm
- Stroke: 30 mm
- Piston Action: Double-Acting
- Rod Type: Single Rod
- Rod Size / Thread: 5/16-24 Female UNF
- Port Size: 1/8 NPT
- Cushion Type: None
- Operating Pressure Range: +7.25 to +145 psi
- Push Force At 100 Psi: 112.5 lbf
- Pull Force At 100 Psi: 93.5 lbf
- Operating Temperature Range: +15 to +160 °F
- Standards Met: JIS Class 2
- Overall Length: 60 mm
- Overall Width: 49.5 mm
- Overall Height: 45 mm
- Cylinder Series: NCQ2
- Maximum Operating Pressure: +145 psi
- Minimum Operating Pressure: +7.25 psi
- Port Gender: Female
- Port Thread Standard: NPT
- Rod Gender: Female
- Type: Pneumatic
- Body Option: Standard (Rod end female thread)
- Mounting Type: Both Ends Tapped
- Rod Thread Standard: UNF
- Series: NCQ2-Z
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
