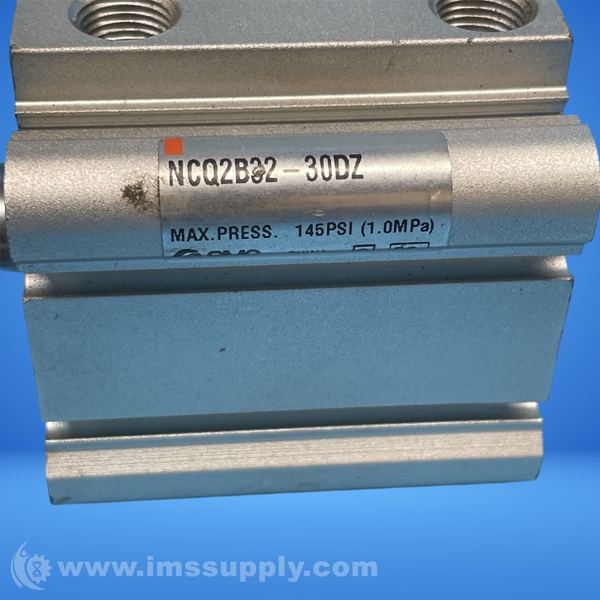

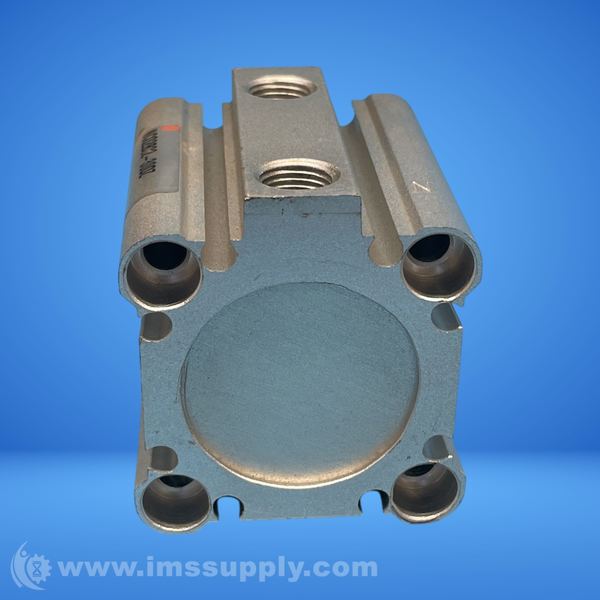

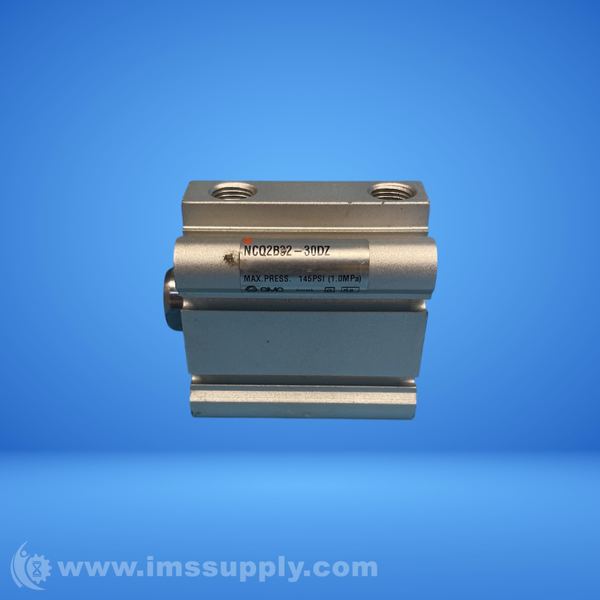

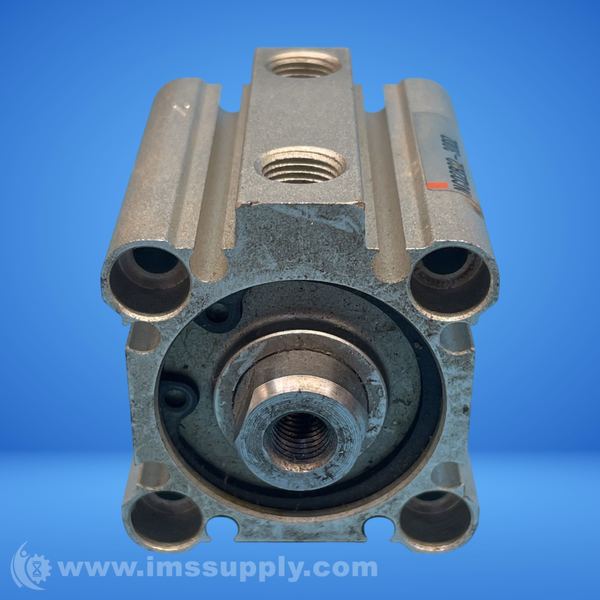

SMC NCQ2B32-30DZ COMPACT CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: NCQ2B32-30DZ
IMS Product Code: 2129848
Packaging: Sold Individually
Description:
SMC NCQ2B32-30DZ Compact Cylinder
Standard double acting, single rod version of the NCQ2 compact cylinder. The NCQ2 is available in bore sizes from 12mm to 100mm. It comes standard with male or female piston rod threads. For mounting flexibility, it is possible to mount auto switches on any of the 4 surfaces.
Specifications
- Series: NCQ2-Z
- Action: Double acting, Single rod
- Cylinder Type: Compact Cylinder
- Bore Diameter: 32 mm
- Stroke Length: 30 mm
- Mounting Style: Through Hole
- Body Material: Aluminum
- Body Material Finish: Anodized
- Piston Material: Aluminum
- Piston Material Finish: Chromate Coated
- Piston Rod Material: Carbon Steel
- Piston Rod Material Finish: Chrome Plated
- Maximum Operating Pressure: 145 psi
- Minimum Operating Pressure: 7.25 psi
- Maximum Operating Temperature: 21.11 degrees C
- Minimum Operating Temperature: -12.22 degrees C
- Overall Height: 45 mm
- Overall Width: 45 mm
- Rod Gender: Female
- Rod Rotation: Rotating Rod
- Auto Switch: No switch
- Auto Switch Groove: Z (Auto Switch Mounting Grooves)
- Body Option: Standard (rod end female thread)
- Rod Type: Standard
- Weight: 0.49383 lb
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
