SMC NCQ2B50-20TZ COMPACT CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: NCQ2B50-20TZ
IMS Product Code: 2123371
Packaging: Sold Individually
Description:

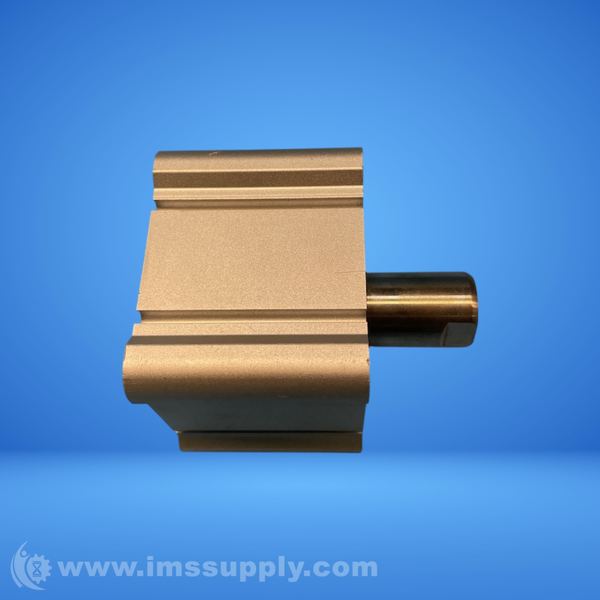

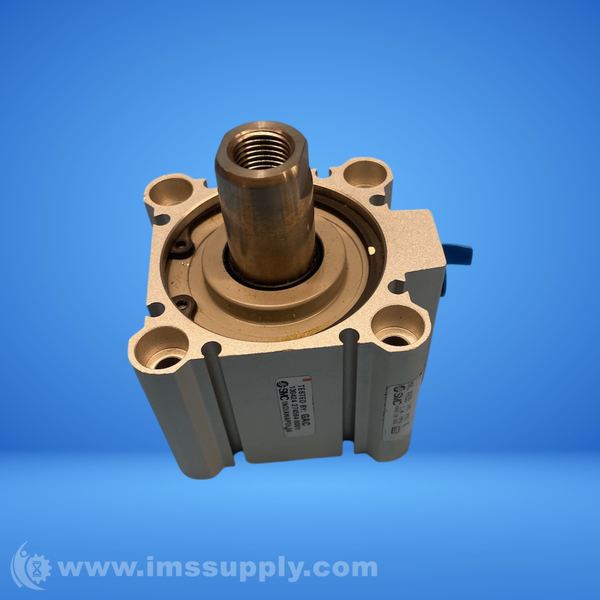

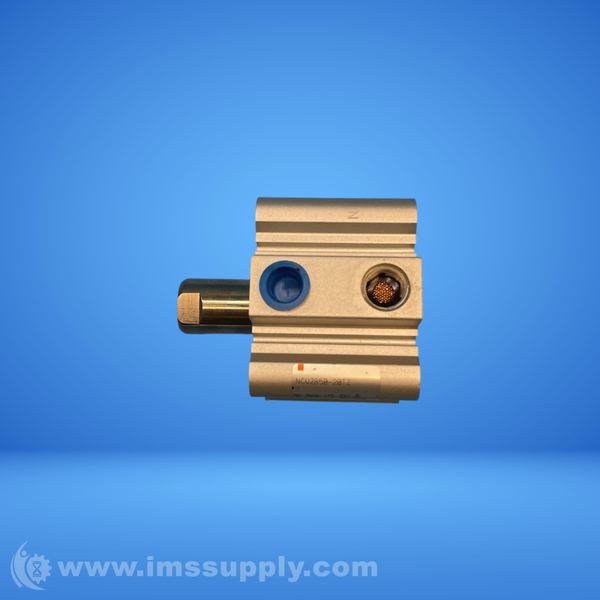

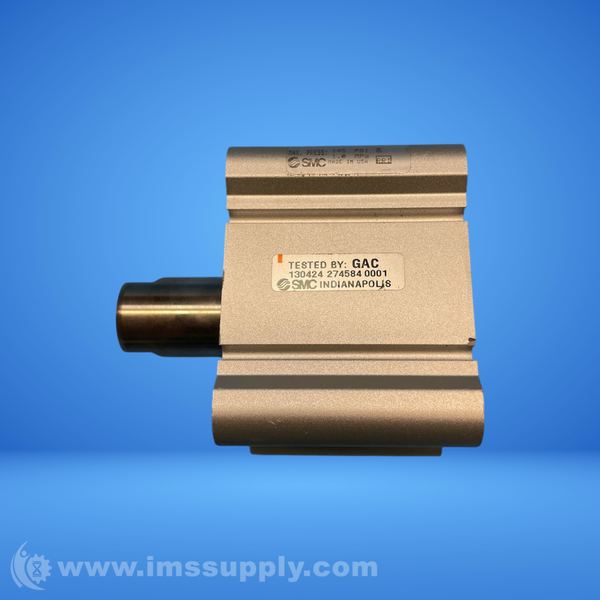

SMC NCQ2B50-20TZ Compact Cylinder
Pneumatic compact cylinder with 50 mm bore diameter and 20 mm stroke, single acting with spring return, without built-in magnet, through-hole mounting.
Specifications
- Series: NCQ2-Z
- Action: Single Acting/Spring Extended
- Bore Diameter: 50 mm
- Stroke: 20 mm
- Body Option: Standard (Rod end female thread)
- Mounting Type: Through Hole
- Port Thread Standard: Rc
- Weight: 429 g
- Length: 68.5 mm
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
