SMC NCY3B40-2000 MAGNETICALLY COUPLED RODLESS CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: NCY3B40-2000
IMS Product Code: 2141504
Packaging: Sold Individually
Description:

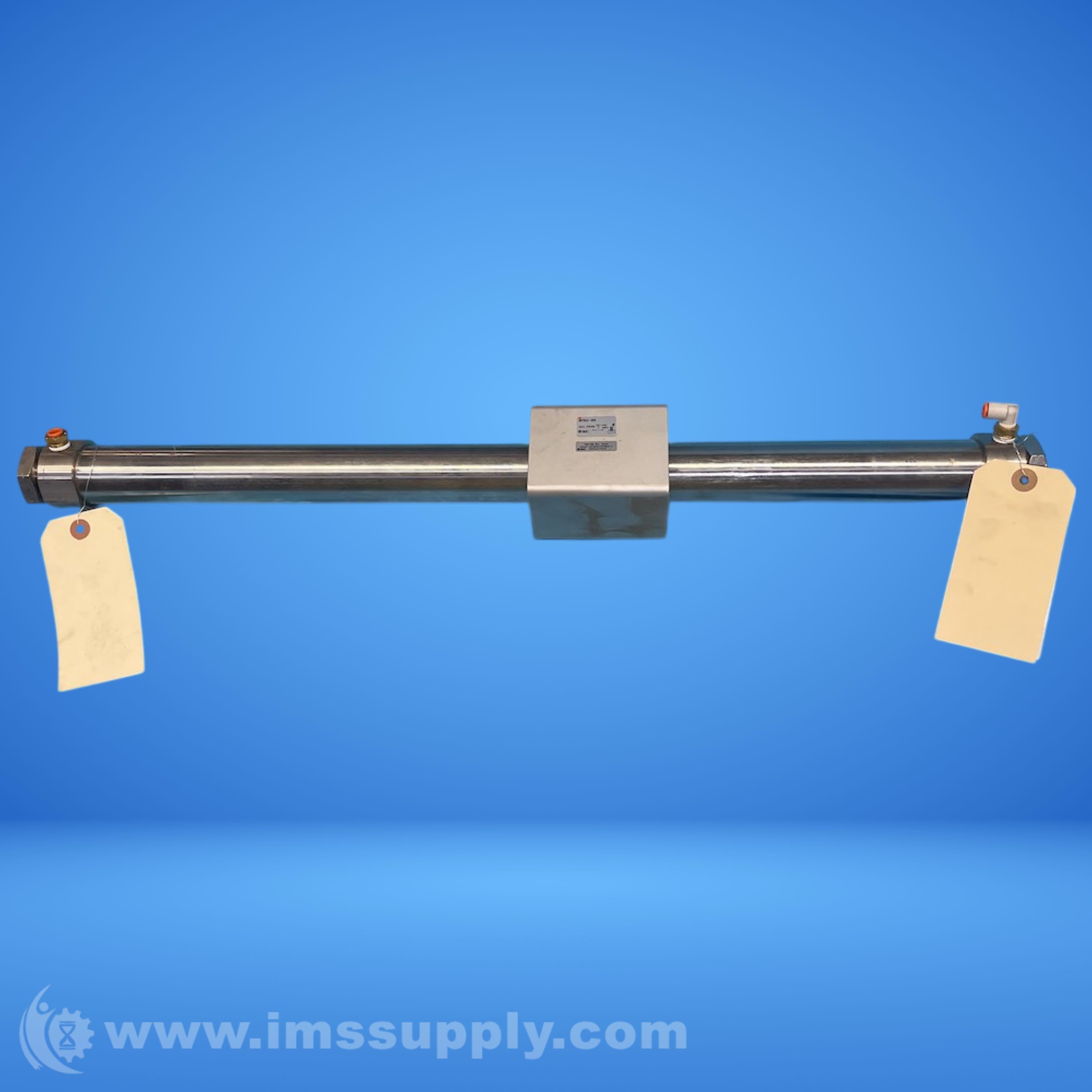

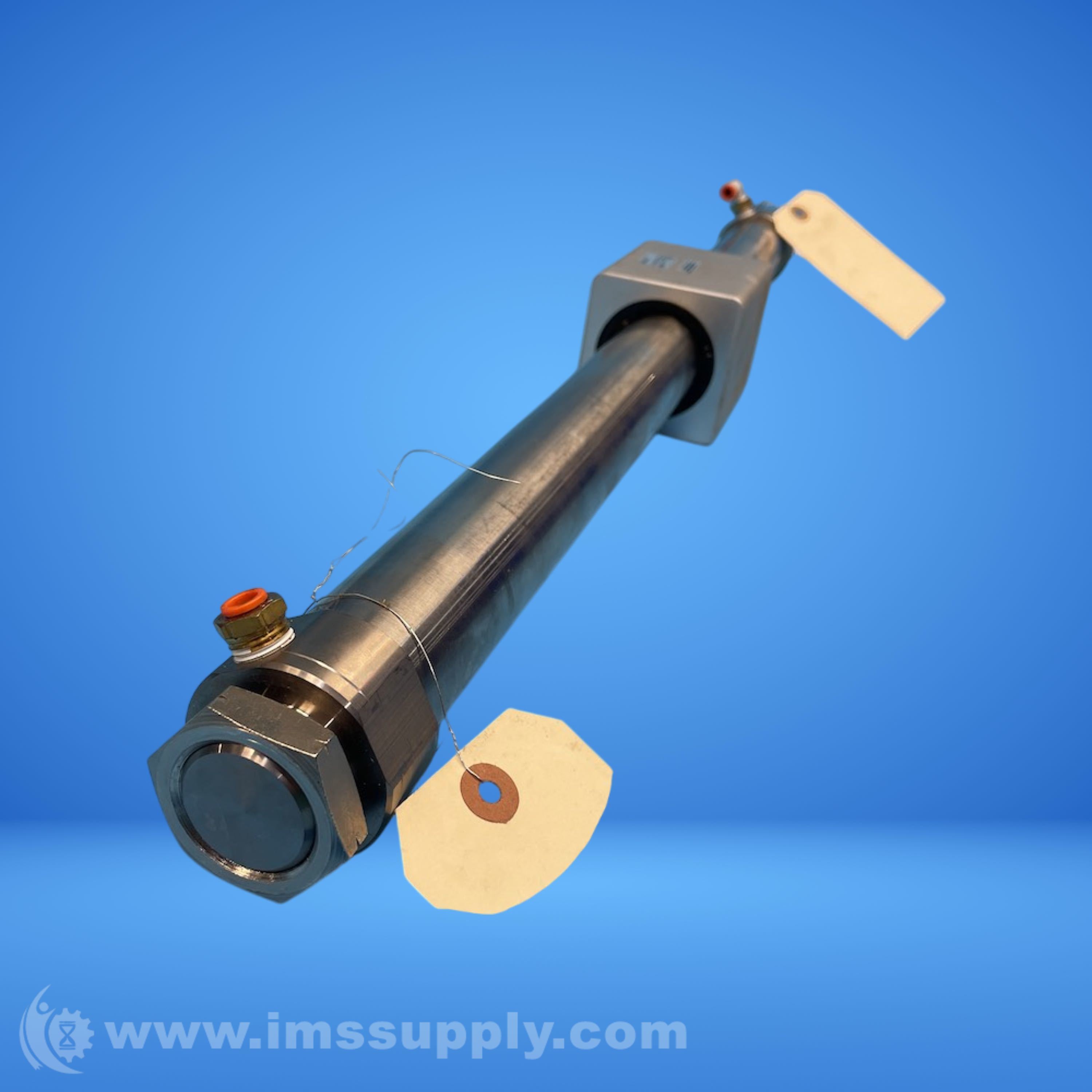

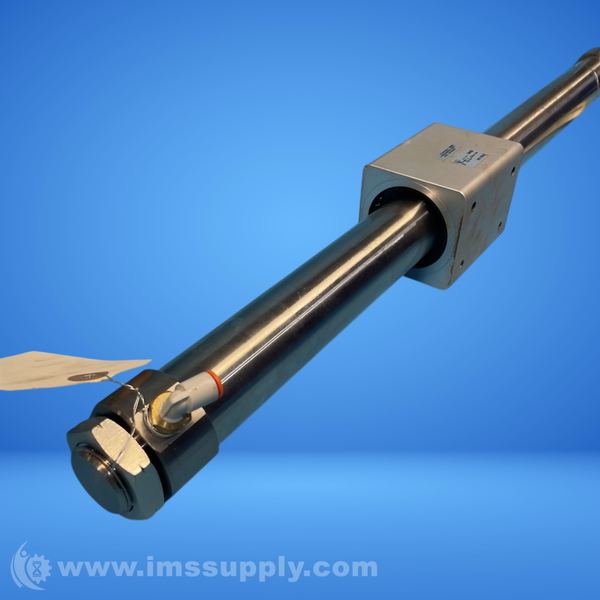

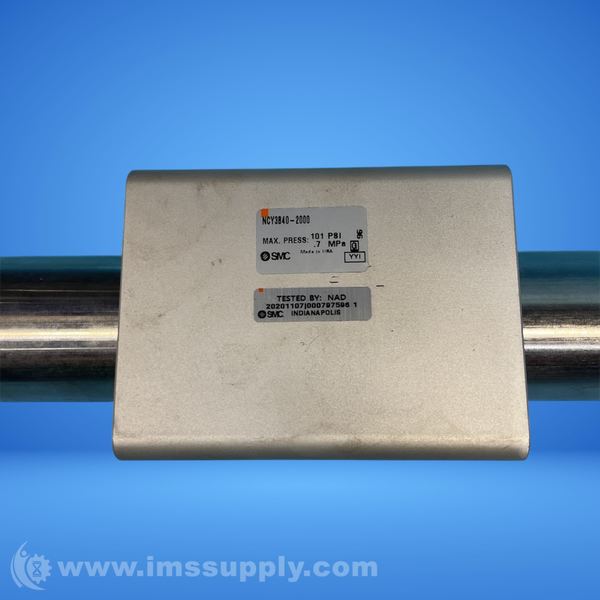

SMC NCY3B40-2000 Magnetically Coupled Rodless Cylinder
Magnetically coupled rodless cylinder with basic guide, 40mm bore diameter, 20 inch stroke, double-acting, NPT ports.
Specifications
- Diameter: 40MM
- Action: DOUBLE-ACTING
- Weight: 5.81266 lb
- Series: NCY3
- Cylinder Style: Magnetically Coupled
- Guide Type: Basic Guide - Standard
- Bore Diameter: 1.5000 in
- Stroke: 20.000 in
- Cushion Type: Rubber Bumper
- Piston Action: Double-Acting
- Port Thread Standard: NPT
- Port Size: 1/4 NPT
- Port Gender: Female
- Stroke Adjuster Type: None
- Options Included: Magnetized
- Mounting Orientation: Horizontal, Inclined, Vertical
- Operating Temperature Range: 14 to 140 degrees F
- Overall Height: 2.76 in
- Overall Width: 2.76 in
- Overall Length: 27.14 in
- Operating Pressure Range: 17 to 101 psi
- Minimum Operating Pressure: 17 psi
- Maximum Operating Pressure: 101 psi
- Proof Pressure: 152 psi
- Seal Kit: CY3B40-PS
- Mounting Type: Basic
