SMC NZSE1-T1-15 VACUUM SWITCH
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: NZSE1-T1-15
IMS Product Code: 1862719
Packaging: Sold Individually
Description:

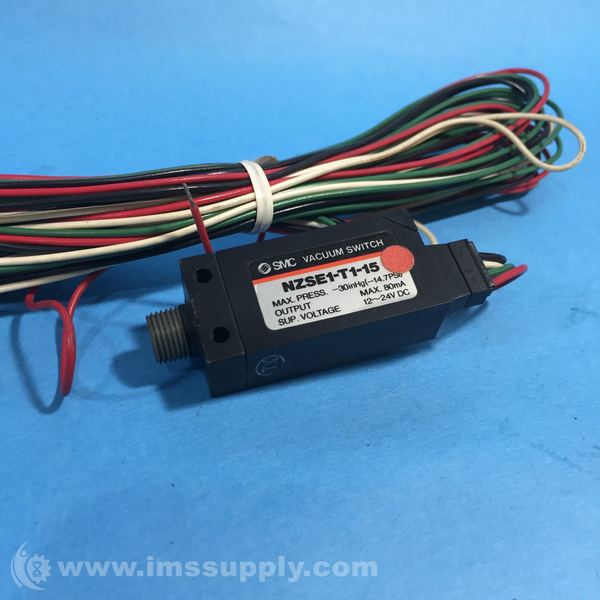

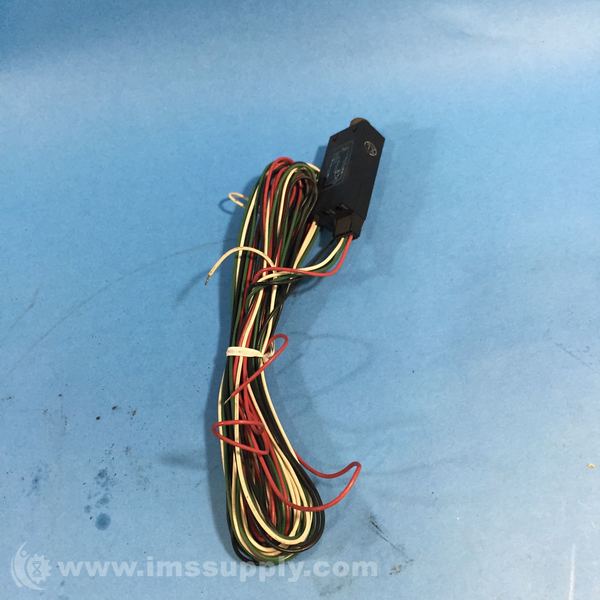

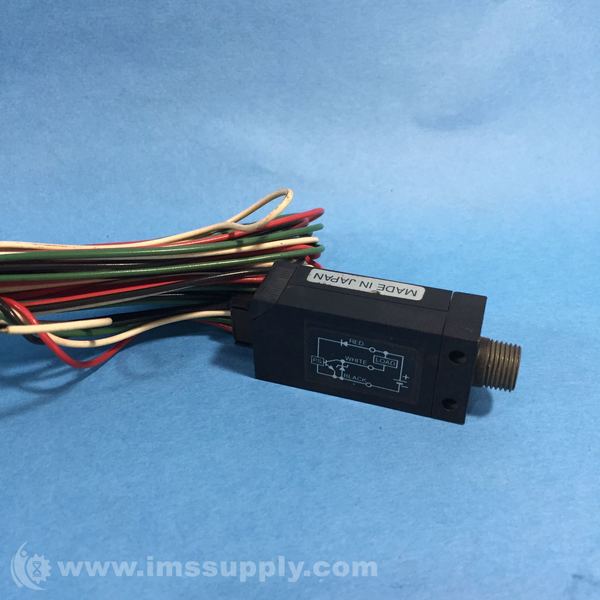

SMC NZSE1-T1-15 Vacuum Switch
Vacuum switch with NPN output and 0.6m lead wire
Specifications
- Power Supply Voltage: 12 to 24 VDC ±10%, Ripple (P-P)10% or less (With power supply polarity protection)
- Current Consumption: 17 mA or less at 24 VDC
- Response Time: 5 ms or less
- Repeatability: ±1% F.S. or less
- Fluid: Air/Non-corrosive, non-flammable gas
- Port Size: 1/8 NPTF w/ M5 x 0.8 Female
- Proof Pressure: +500 kPa
- Operating Temperature Range: 0 to +60 degrees C
- Maximum Load Current: 80 mA
- Signal Response Time: 5 ms
- Standards Met: CE
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 10 hours and 12 minutes.
