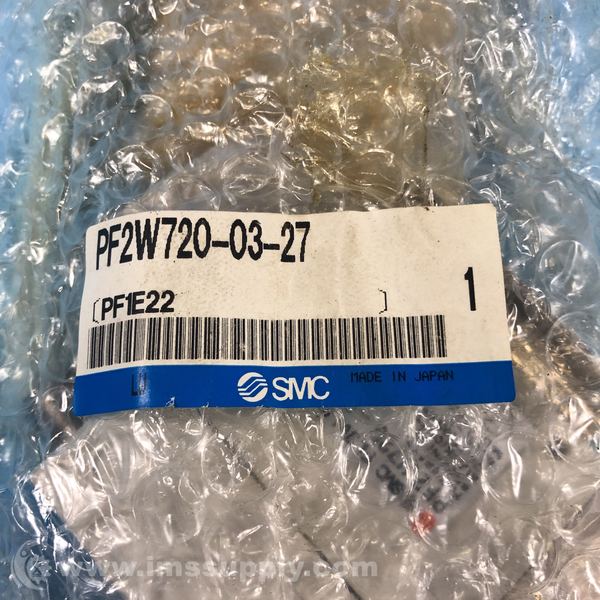

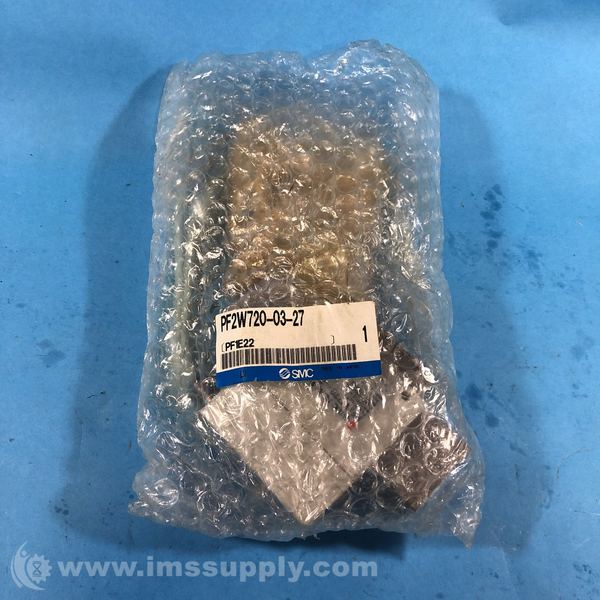

SMC PF2W720-03-27 DIGITAL FLOW SWITCH
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: PF2W720-03-27
IMS Product Code: 1921901
Packaging: Sold Individually
Description:

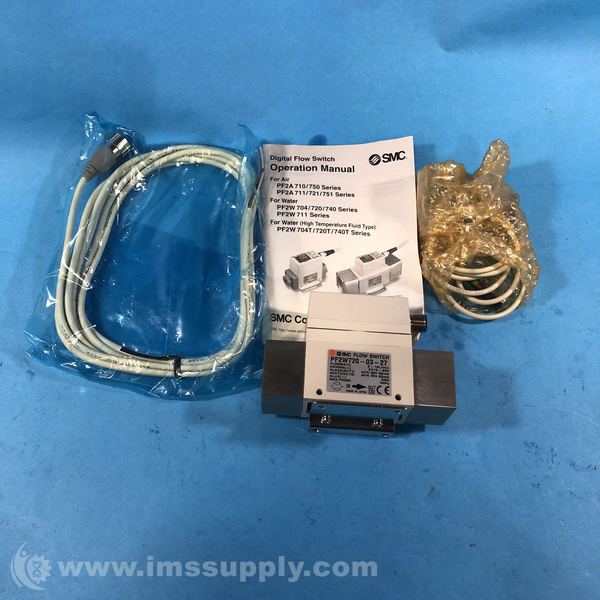

SMC PF2W720-03-27 Digital Flow Switch
Digital flow switch for water with integrated sensor, using Karman vortex detection type, 2 to 16 l/min flow rate range, NPN or PNP open collector output, 12 to 24 VDC power supply voltage, IP65 resistance.
Specifications
- Measured fluid: Water
- Flow rate measurement range: 1.7 to 17.0 l/min
- Flow rate: 2 to 16 l/min
- Minimum set unit: 0.1 l/min
- Operating fluid temperature: 0 to 50C
- Linearity: ±5% F.S. or less
- Repeatability: ±3% F.S. or less
- Temperature characteristics: ±5% F.S. or less (0 to 50C, based on 25C)
- Current consumption (No load): 70 mA or less
- Weight: 520 g
- Port size: 3/8, 1/2
- Detection type: Karman vortex
- Indicator light: 3-digit, 7-segment LED
- Operating pressure range: 0 to 1 MPa
- Proof pressure: 1.5 MPa
- Accumulated flow range: 0 to 999999 l
- Ambient temperature range: Operating: 0 to 50C, Stored: -25 to 85C (with no freezing and condensation)
- Output specifications: NPN or PNP open collector
- Response time: 1 sec. or less
- Hysteresis: Variable or 3-digit fixed
- Power supply voltage: 12 to 24 VDC
- Resistance: IP65
- Withstand voltage: 1000 VAC for 1 min. between external terminal and case
- Insulation resistance: 50M or more (500 VDC Mega) between external terminal and case
- Vibration resistance: 10 to 500 Hz with a 1.5 mm amplitude or 98 m/s2 acceleration
- Impact resistance: 490 m/s2 in X, Y, Z directions 3 times each
- Noise resistance: 1000 Vp-p, Pulse width 1 µs, Rise time 1 ns
