SMC RSDQA20-20DK COMPACT STOPPER CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: RSDQA20-20DK
IMS Product Code: 2135144
Packaging: Sold Individually
Description:

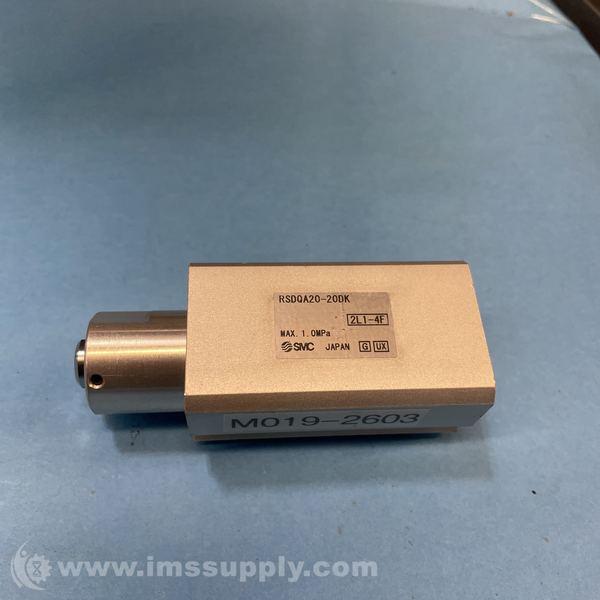

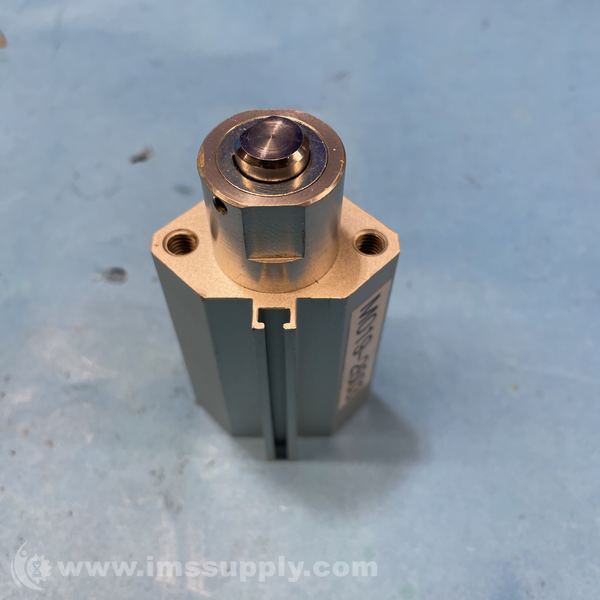

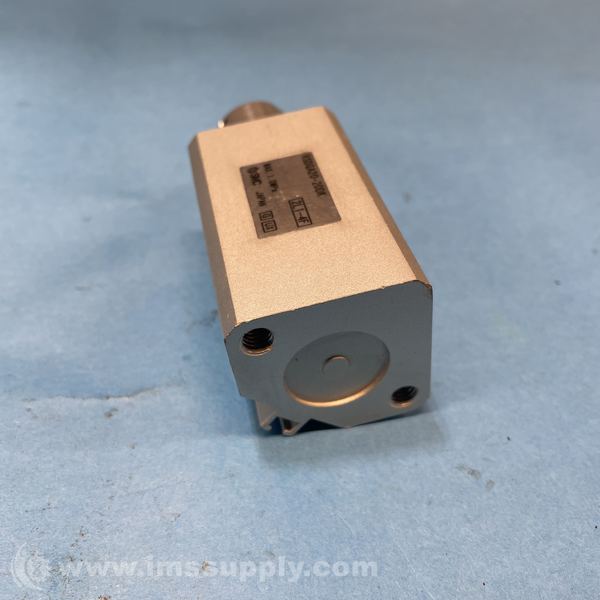

SMC RSDQA20-20DK Compact Stopper Cylinder
Double-acting compact stopper cylinder with fixed mounting height and built-in magnet. Features a chamfered rod end and rubber bumper cushioning. Available with female BSPT port threads.
Specifications
- Bore Diameter: 20 mm
- Stroke: 20 mm
- Rod Size: 12 mm
- Mounting Type: Both Ends Tapped
- Port Size: 1/8 BSPT
- Operating Pressure Range: Maximum of +1 MPa
- Operating Temperature Range: -10 to +60 degrees C
- Overall Length: 107 mm
- Overall Width: 36 mm
- Overall Height: 36 mm
- Weight: 0.25 kg
- Series: RSQ
- Piston Action: Double-Acting
- Cushion Type: Rubber Bumper
- Options Included: Magnetized, Switch Ready
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
