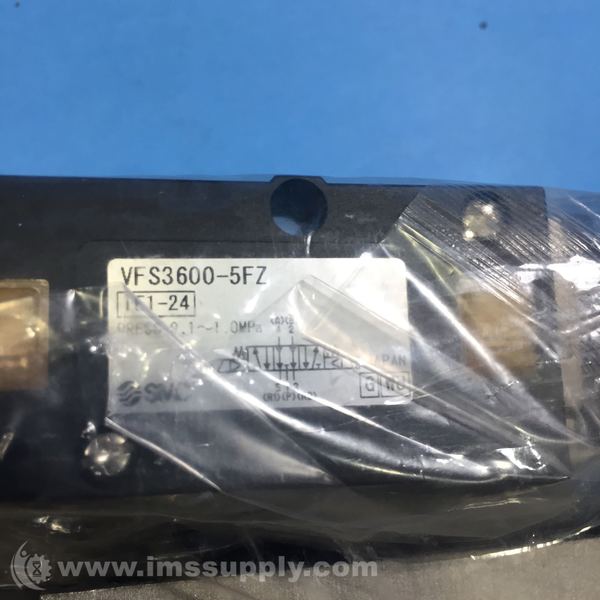

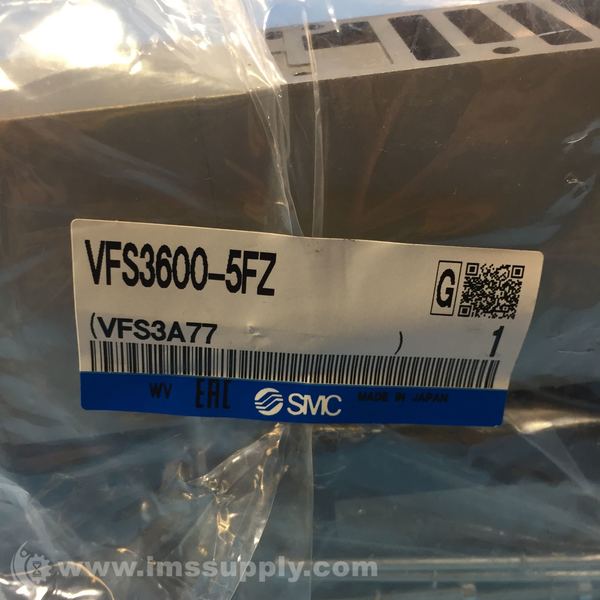

SMC VFS3600-5FZ 5 PORT PILOT OPERATED SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VFS3600-5FZ
IMS Product Code: 1814885
Packaging: Sold Individually
Description:
SMC VFS3600-5FZ 5 Port Pilot Operated Solenoid Valve
5 port pilot operated solenoid valve with metal seal, plug-in type. Base mounted with internal pilot and non-locking manual override. 24V DC coil with light/surge voltage suppressor. Rc thread type with 1/4 NPT port size.
Specifications
- Series: VFS3000
- Type: PNEUMATIC SOLENOID VALVE
- Port Size: 1/4 NPT
- Maximum Pressure: 145 PSI
- Rated Voltage: 24 VDC
- Type Of Actuation: 3 Position Double Check
- Pilot Type: Internal Pilot
- Body Option: Standard
- Pilot Valve Manual Override: Non-locking Push Type (Flush)
- Porting Specifications: Side Ported or None
- Thread Type: Rc
- Weight: 2.10279 lb
- Number Of Ports: 5
- Number Of Positions: 3 (Double Check)
- Solenoid Supply Voltage: 24 V dc
- Solenoid Electrical Entry: Plug-in
- Manual Operation Type: Non-Locking Push
- Operating Temperature Range: 14 to 140 °F
- Proof Pressure: 218 psi
- Seal Material: Metal
- Operating Medium: Air
- Flow Direction: 4-Way
- Actuation: Piloted Solenoid
- Function: 3 position perfect
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
New - Missing Box (Special):

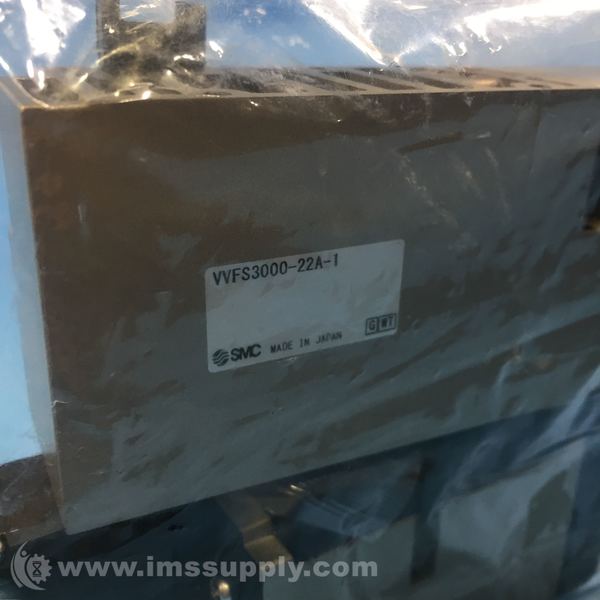

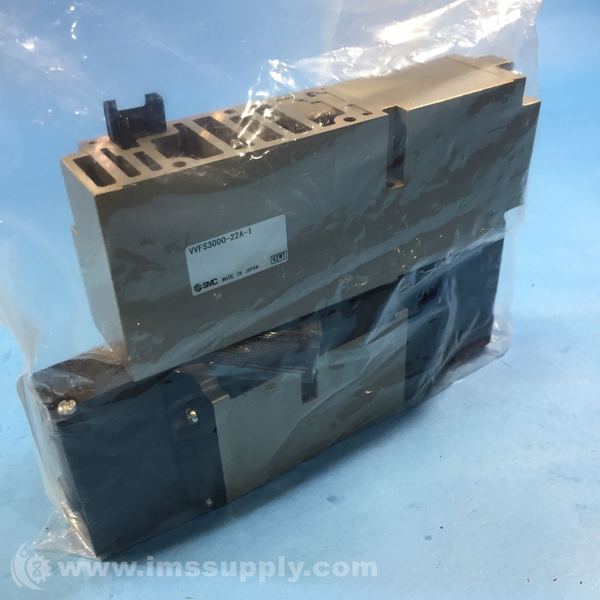

SMC VVFS3000-22A attached
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
For Parts or Repair (Special):
IS MISSING OTHER VALVE TO MAKE THE WHOLE PART.
