SMC VH211-02 HAND VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VH211-02
IMS Product Code: 1758245
Packaging: Sold Individually
Description:
SMC VH211-02 Hand Valve
SMC Manual pneumatic control valve, VH series, 4/3 functions, Rc 1/4 Threaded interface
Specifications
- Series: VH
- Body Port: 1/4NPT
- Weight: 1.00109 lb
- Port Connection: 1/4 in BSPT
- Body Style: Panel-Mounted; Side-Ported
- Actuator Type: Lever
- Operating Pressure - Maximum: 1 MPa
- Number of Positions: Three-Position
- Center Position: Exhaust
- Base Size: 1/4 in
- Operating Temperature - Minimum: -5 degrees C
- Operating Temperature - Maximum: 60 degrees C
- Overall Height: 90 mm
- Overall Length: 125 mm
- Overall Width: 62 mm
- Valve Port Connection Type: BSPT
- Valve Port Connection Size: 1/4 in
- Coefficient of Volume (Cv): 0.38
- For Media: Air
- Standards: RoHS Compliant
- Seal Material: Buna-N
- Valve Type: Rotary
- Body Material: Aluminum
- Lubrication: Lubrication Not Required
- Piping/Mounting: Piping:Side
- Type Of Actuation: 3 Position Exhaust Center
- Thread Type: Rc
- Port Size: 1/4

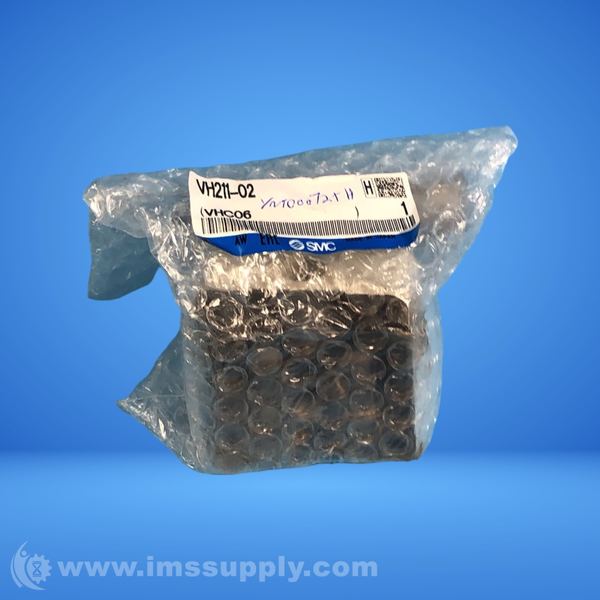

New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 8 hours and 5 minutes.

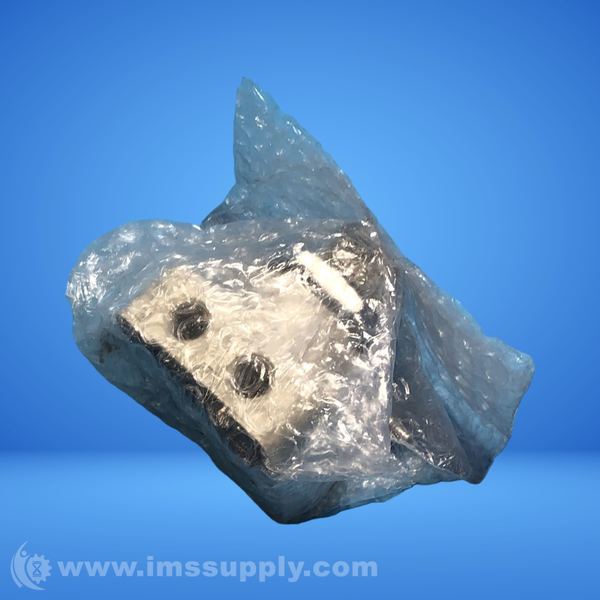

For Parts or Repair (Special):
Missing handle and nut
Availability: 1 In Stock
Ships today if ordered in the next 8 hours and 5 minutes.
