SMC VHS40-N06-Z 3-PORT LOCKOUT VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VHS40-N06-Z
IMS Product Code: 1445524
Packaging: Sold Individually
Description:

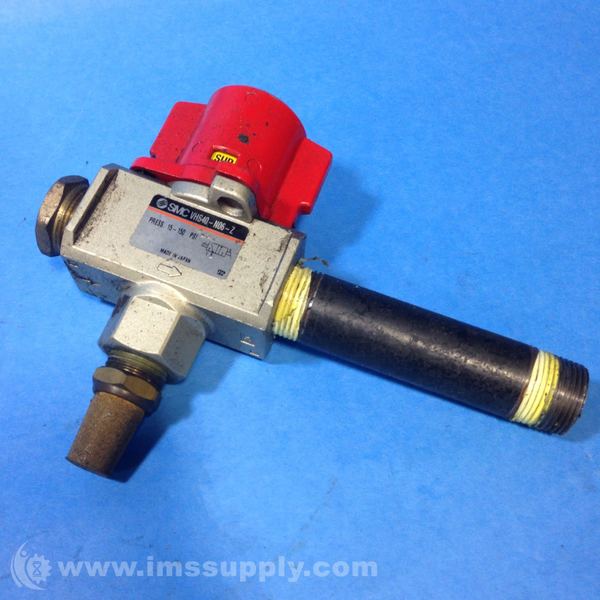

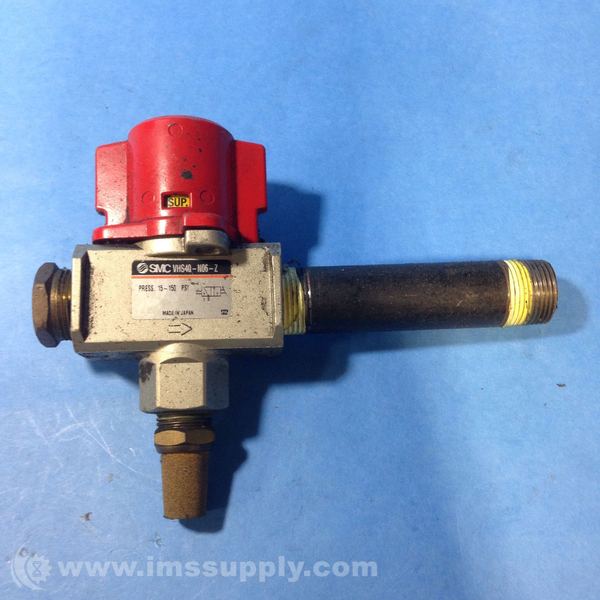

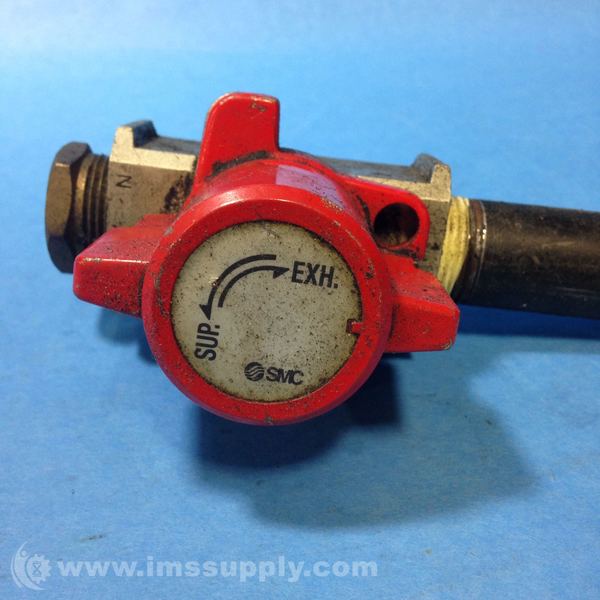

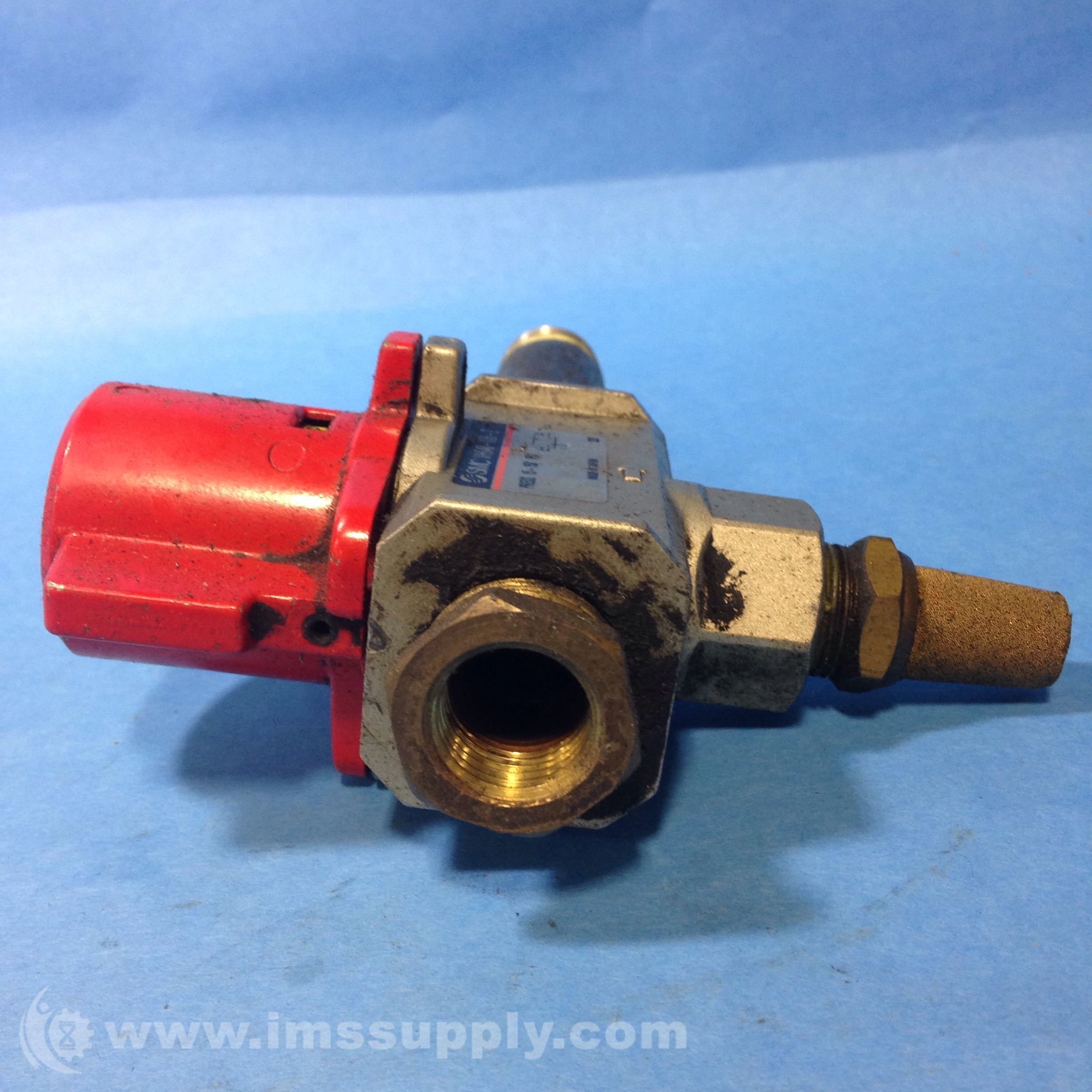

SMC VHS40-N06-Z 3-Port Lockout Valve
3-port lockout valve with lever operation, aluminum body, and nitrile seal. 3/4 NPT (F) body port size, operating pressure range of 15-150 PSI, and temperature range of -5 to 60 degrees C.
Specifications
- Series: VHS
- Body Port Size: 3/4 NPT (F)
- Manual Operation Type: Lever
- Standards Met: JIS, OSHA
- Knob Color: Red (Handle)
- Operating Pressure Range: 15-150 PSI
- Operating Temperature Range: -5 to 60 degrees C
- Overall Width: 44 mm
- Overall Height: 75 mm
- Overall Length: 110 mm
- Flow Coefficient Cv Flow Factor Kv: 2.12 (Out to Exhaust) C, 4.17 (In to Out) C
- Seal Material: Nitrile
- Body Material: Aluminum
- Country/Region of Manufacture: Japan
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 3 In Stock
