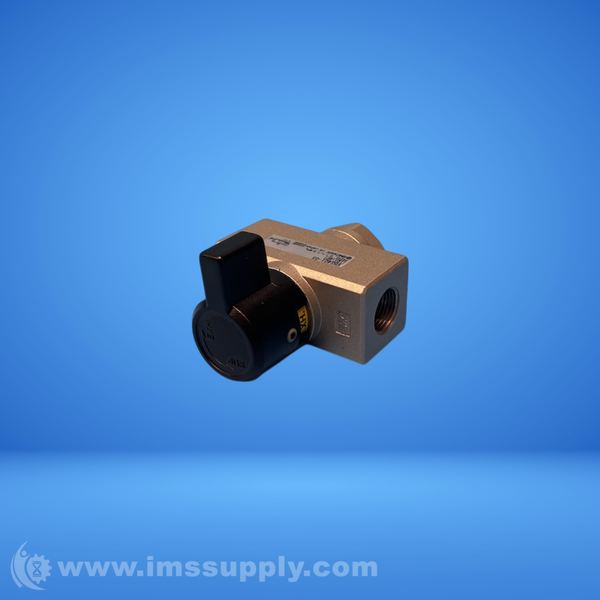

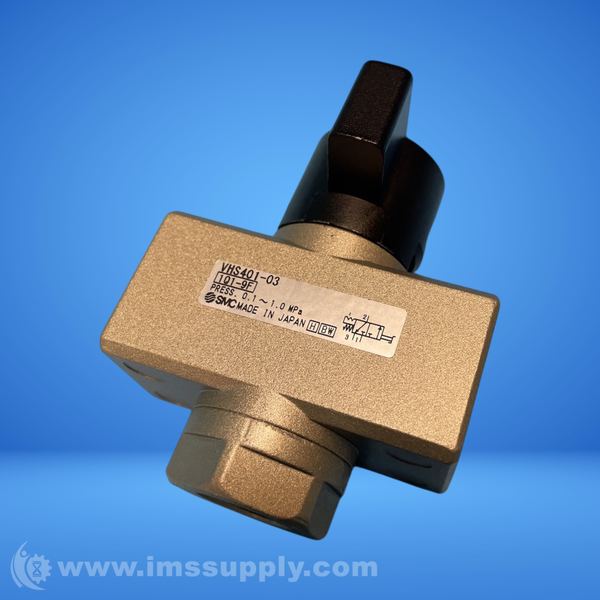

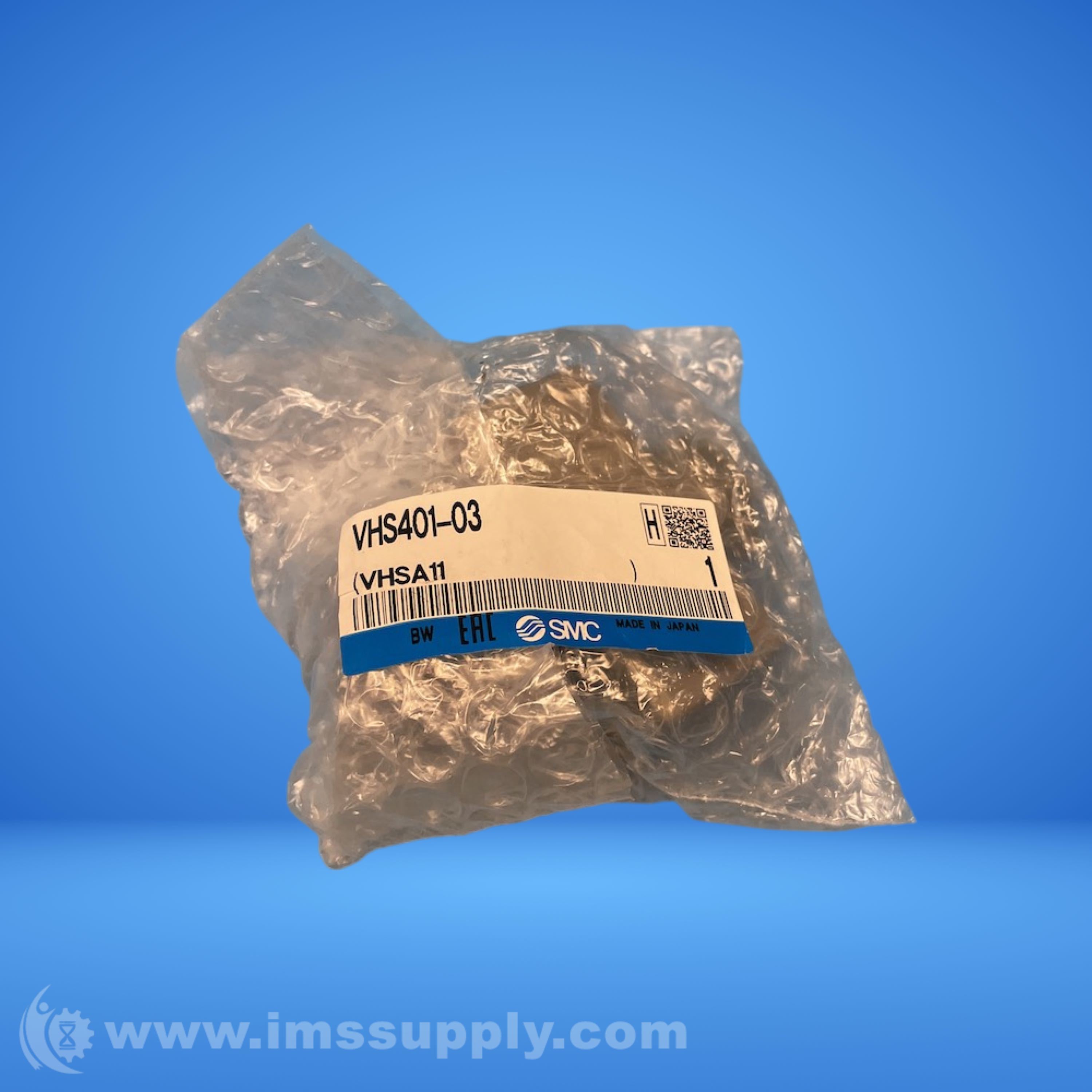

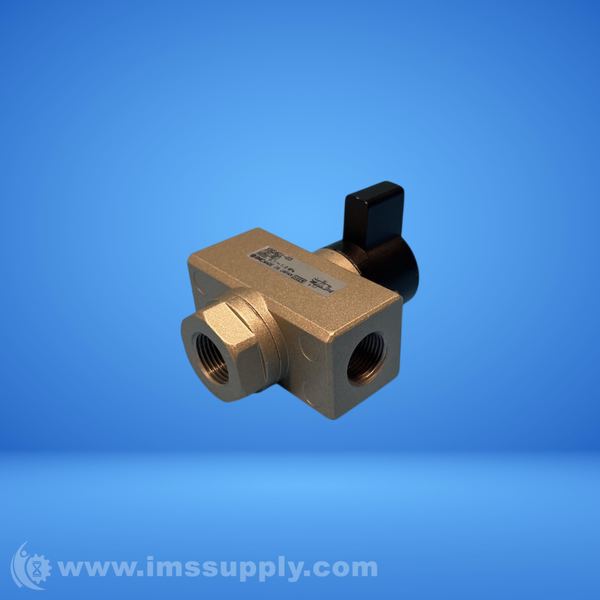

SMC VHS401-03 HAND VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VHS401-03
IMS Product Code: 2123789
Packaging: Sold Individually
Description:
SMC VHS401-03 Hand Valve
3-port hand valve with lever operation, 3/8" port size.
Specifications
- Series: VHS
- Port Size: 3/8
- Fluid: air
- Operating Pressure Range: 0.1 to 1.0 MPa
- Effective Area: 21-93 mm˛ (1(P)-2(A)), 35-105 mm˛ (2(A)-3(R))
- Ambient & Fluid Temperature: -5 to 60 degrees C
- Required Switching Force: 7.5 kgf (at 1.0 MPa)
- Manual Operation Type: Lever
- Body Material: Aluminum
- Seal Material: Nitrile (O-Ring), PVC
- Overall Dimensions: 63 mm (L) x 30 mm (W) x 75 mm (H)
- Weight: 250 g
