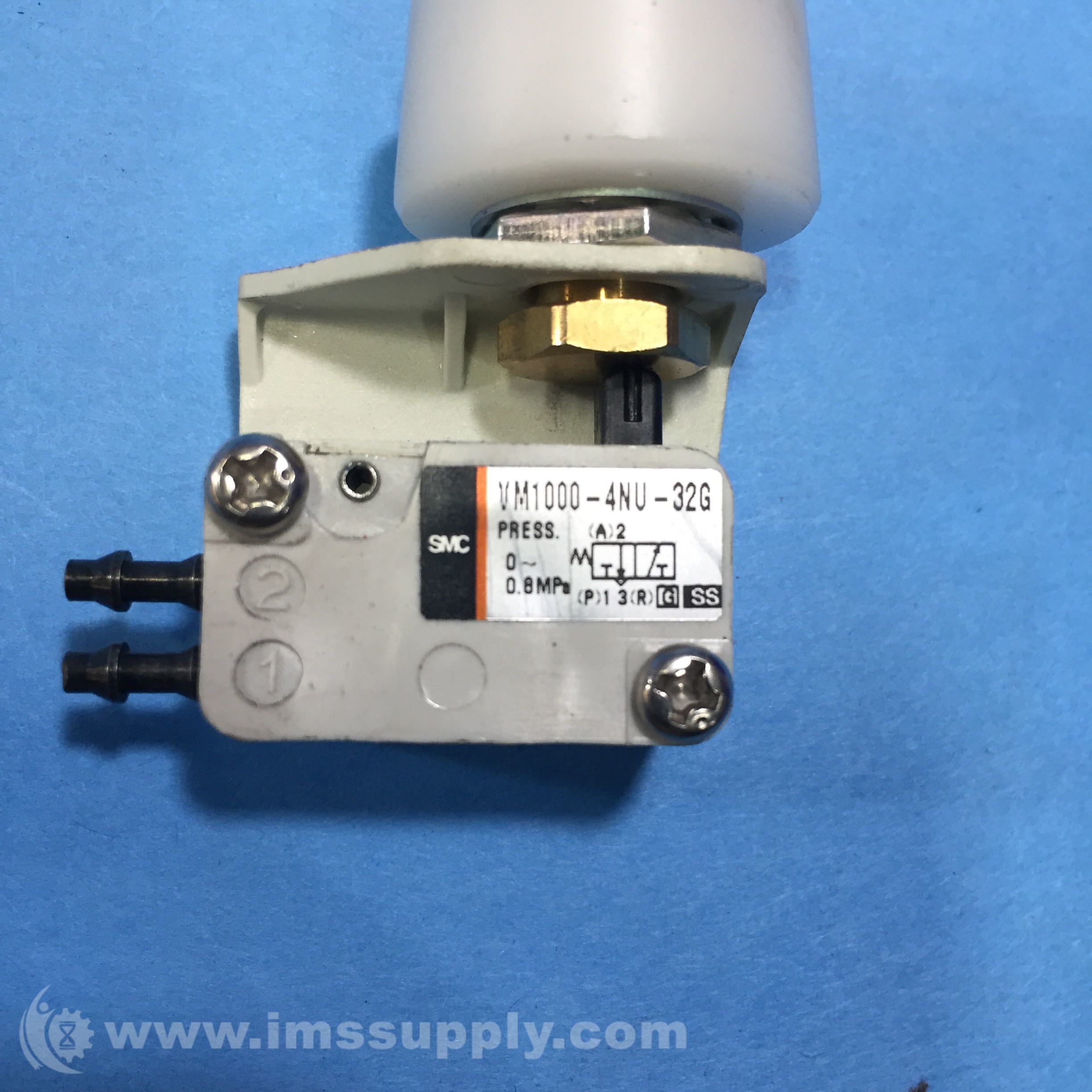

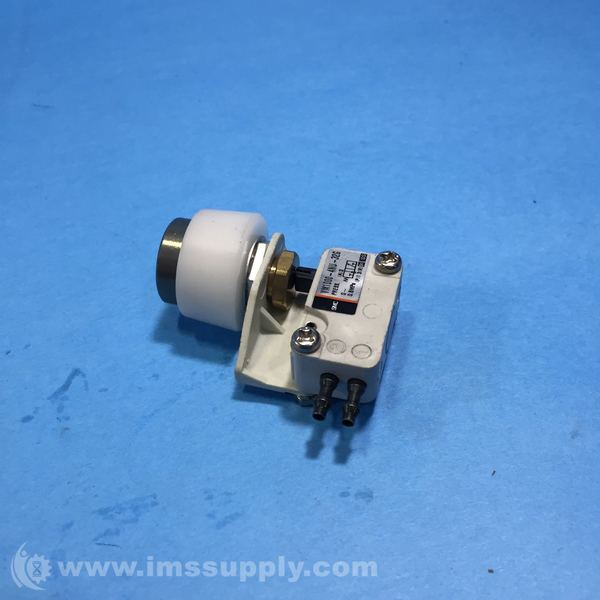

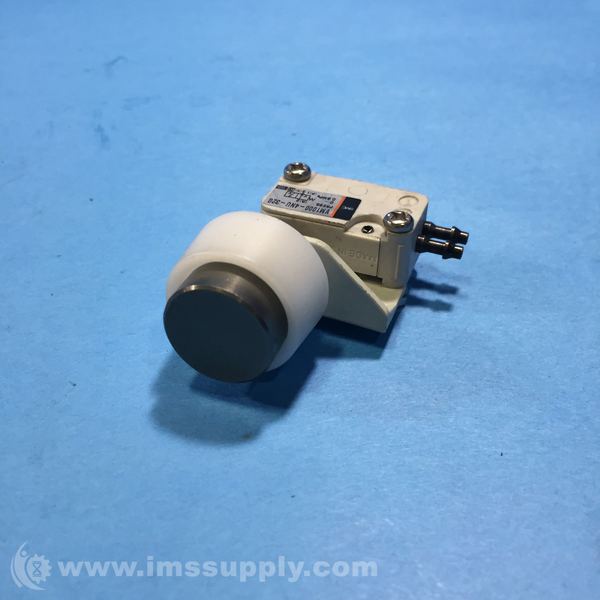

SMC VM1000-4NU-32G 3-PORT MECHANICAL VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VM1000-4NU-32G
IMS Product Code: 1861110
Packaging: Sold Individually
Description:
SMC VM1000-4NU-32G 3-Port Mechanical Valve
Compact, button-activated poppet valve for air control. 3-port, 2-position configuration with side piping and 2.5/3mm hose barb connections. Normally closed operation with effective area of 1mm˛ (Cv 0.055). Operates at pressures up to 0.8 MPa.
Specifications
- Actuator Type: Push Button
- Body Material: PBT
- Flow Direction: 2-Way
- Maximum Operating Pressure: 0.8 MPa
- Minimum Operating Pressure: 0 MPa
- Number Of Ports: 3
- Number Of Positions: 2
- Operating Medium: Air, Inert Gas
- Operating Temperature Range: -5 to +60 degrees C
- Piping Type: Body Ported
- Port 1 Size/Type: 2.5 mm (Tube ID) Barbed
- Port 2 Size/Type: 3 mm (Tube ID) Barbed
- Seal Material: Nitrile
- Valve Function: Poppet
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 4 In Stock
