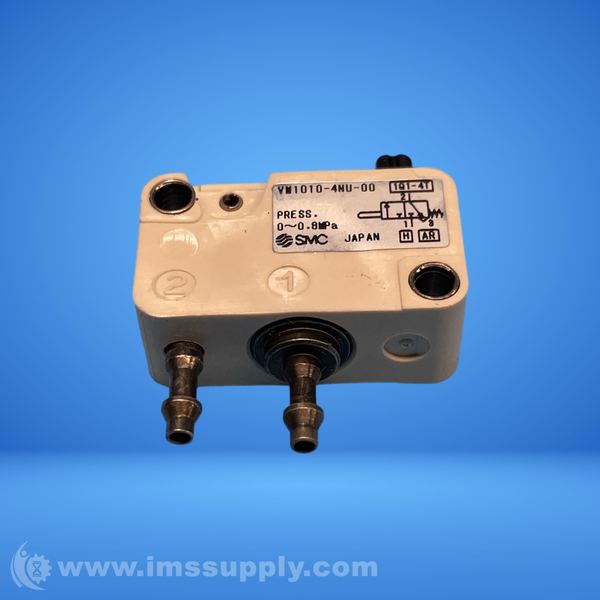

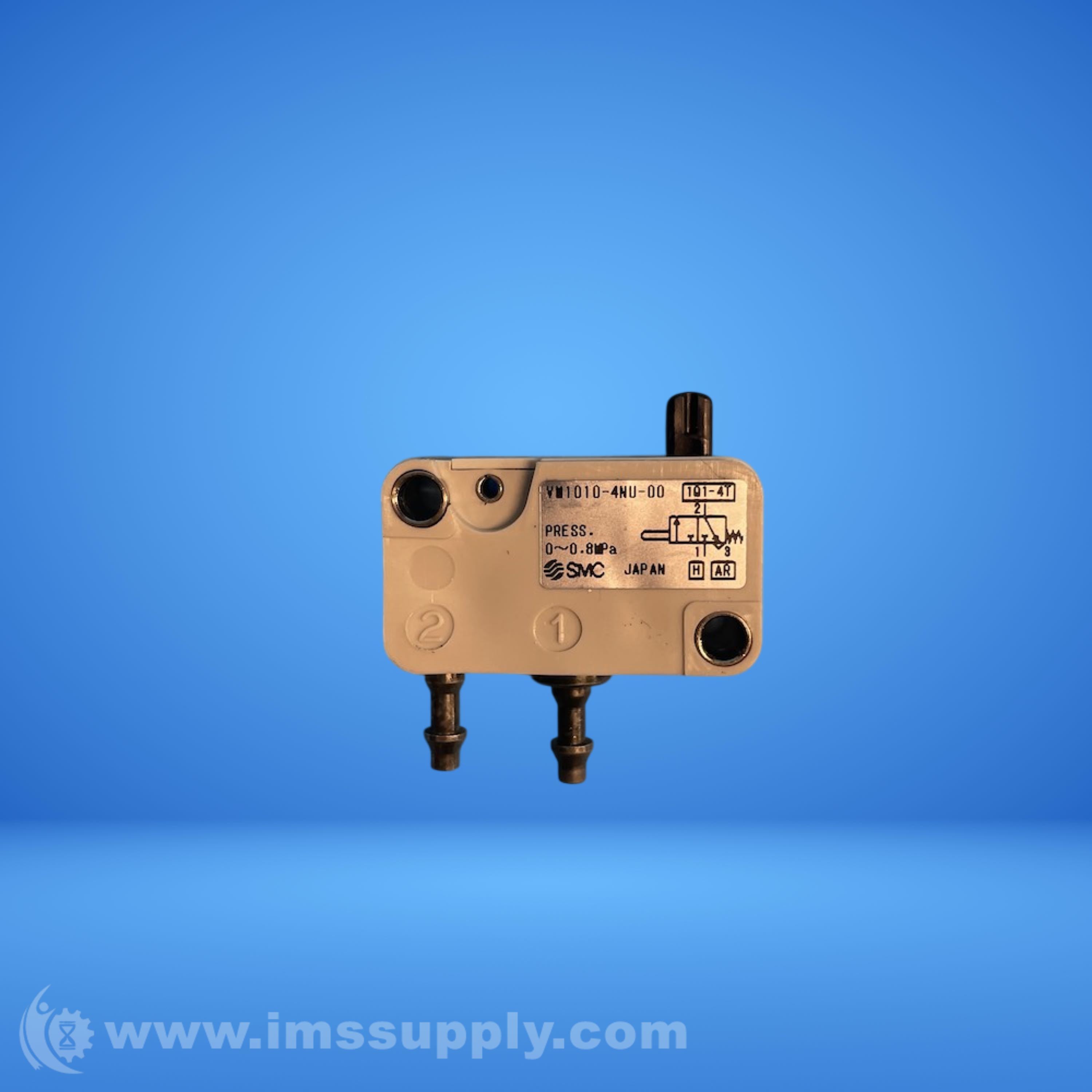

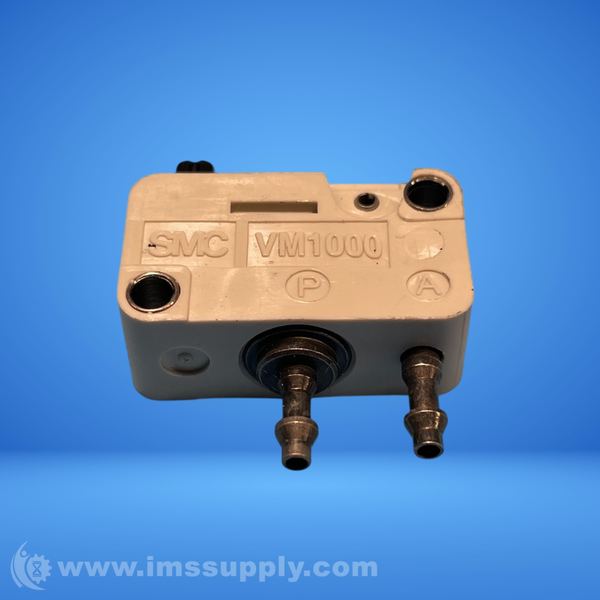

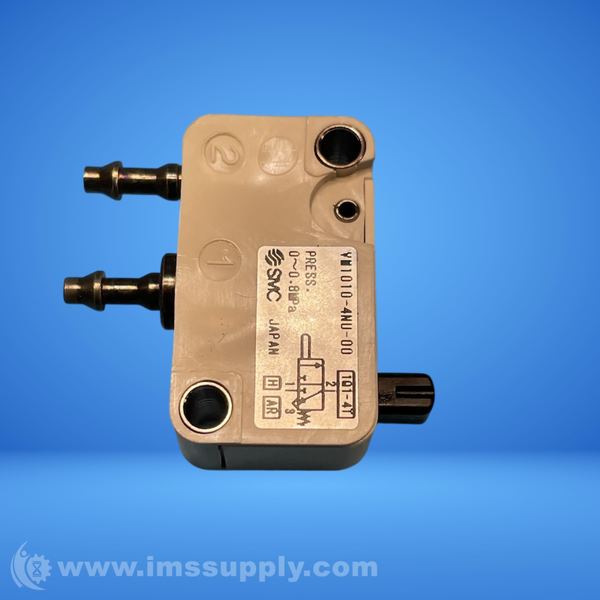

SMC VM1010-4NU-00 MECHANICAL VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VM1010-4NU-00
IMS Product Code: 2151040
Packaging: Sold Individually
Description:
SMC VM1010-4NU-00 Mechanical Valve
Compact mechanical poppet valve with basic actuation and bottom ported configuration. 3-port design with 2-position operation. Suitable for air and inert gas applications.
Specifications
- Series: VM
- Piping Type: Body Ported
- Number Of Ports: 3
- Number Of Positions: 2
- Actuator Type: Basic
- Minimum Operating Pressure: 0 MPa
- Maximum Operating Pressure: +0.8 Mpa
- Operating Pressure Range: 0 to +0.8 Mpa
- Operating Temperature Range: -5 to +60 degrees C
- Seal Material: Nitrile
- Operating Medium: Air, Inert Gas
- Normal State: Normally Open
- Port 1 Size/Type: 2.5 mm (Tube ID) Barbed
- Port 2 Size/Type: 3 mm (Tube ID) Barbed
- Valve Function: Poppet
- Body Material: PBT
- Overall Length: 30.4 mm
- Overall Width: 11 mm
- Overall Height: 27.8 mm
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
