SMC VM130-N01-07A 3-PORT MECHANICAL VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VM130-N01-07A
IMS Product Code: 1845452
Packaging: Sold Individually
Description:

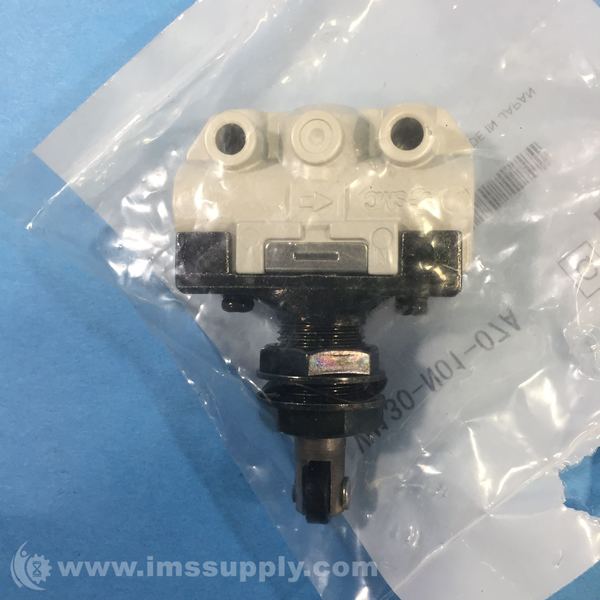

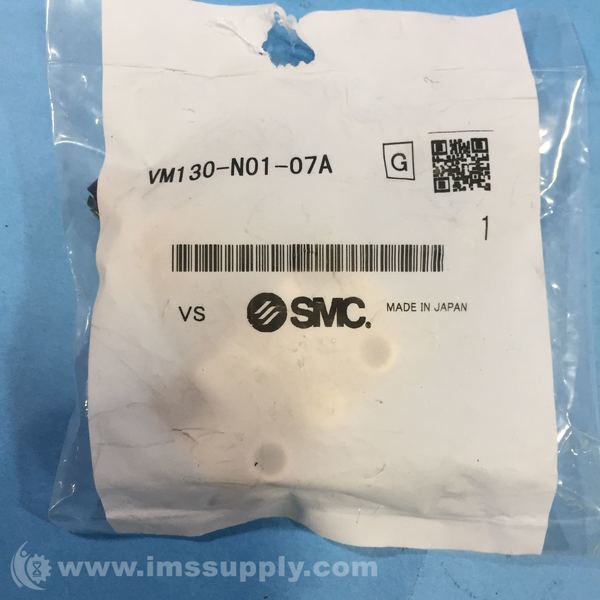

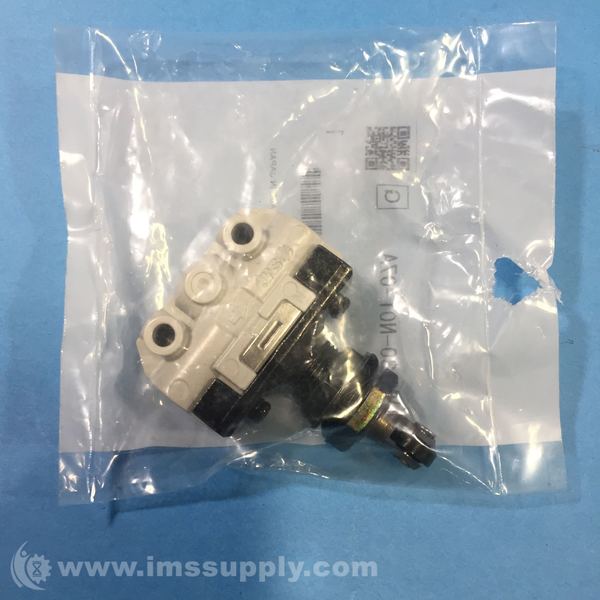

SMC VM130-N01-07A 3-Port Mechanical Valve
3-port mechanical valve with cross roller plunger actuator, 1/8" NPT ports, side-ported body
Specifications
- Fluid: air
- Piping: side ported
- Number of Ports: 3
- Valve Design: 3-Way 2-Position
- Actuator Type: Cross Roller Plunger
- Inlet Size: 1/8"
- Thread Type: NPT
- Cv Rating: 0.11
- Body Material: Aluminum
- Operating Pressure: -100 kPa to 1 MPa
- Operating Temperature: -5 to 60 degrees C
- Dimensions: 44 mm x 17 mm x 63 mm
- Lubrication: Not Required
- Standards: RoHS Compliant
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 13 hours and 49 minutes.
