SMC VM430-01-08 3-PORT MECHANICAL VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VM430-01-08
IMS Product Code: 1859438
Packaging: Sold Individually
Description:

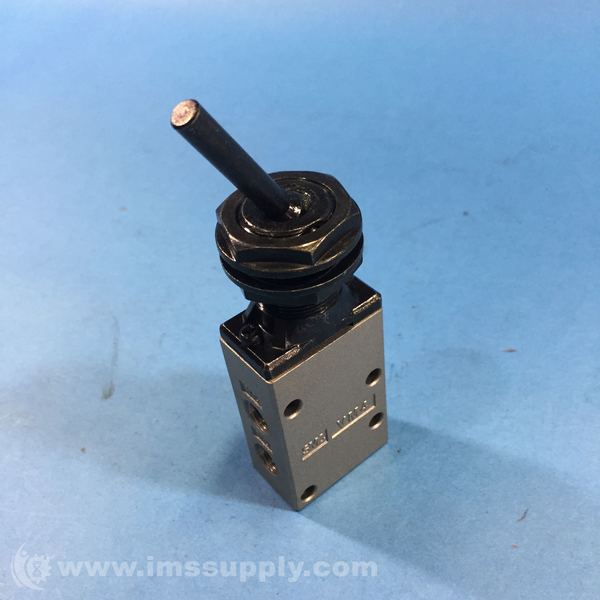

SMC VM430-01-08 3-Port Mechanical Valve
3-port mechanical valve with Rc(PT) thread and flip-toggle actuator
Specifications
- Series: VM400
- Port Number: 3
- Operation: Mechanical
- Type: Switching Valve
- Actuator Type: 08 (Flip Toggle)
- Thread: Rc(PT)
- Fluid: air
- Operating Pressure: -100kPa to 1.0MPa
- Effective Area (Cv): 7mm2 (0.38)
- Ambient and Fluid Temperature: -5 to 60 degrees C (no freezing)
- Port Size (Nominal Size): Rc(PT) 1/8 (6A)
- Height: 113.5 mm
- Length: 57 mm
- Width: 40 mm
- Weight: 200 g
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 3 hours and 18 minutes.
