SMC VM830-01-13 MECHANICAL VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VM830-0113
IMS Product Code: 1845004
Packaging: Sold Individually
Description:

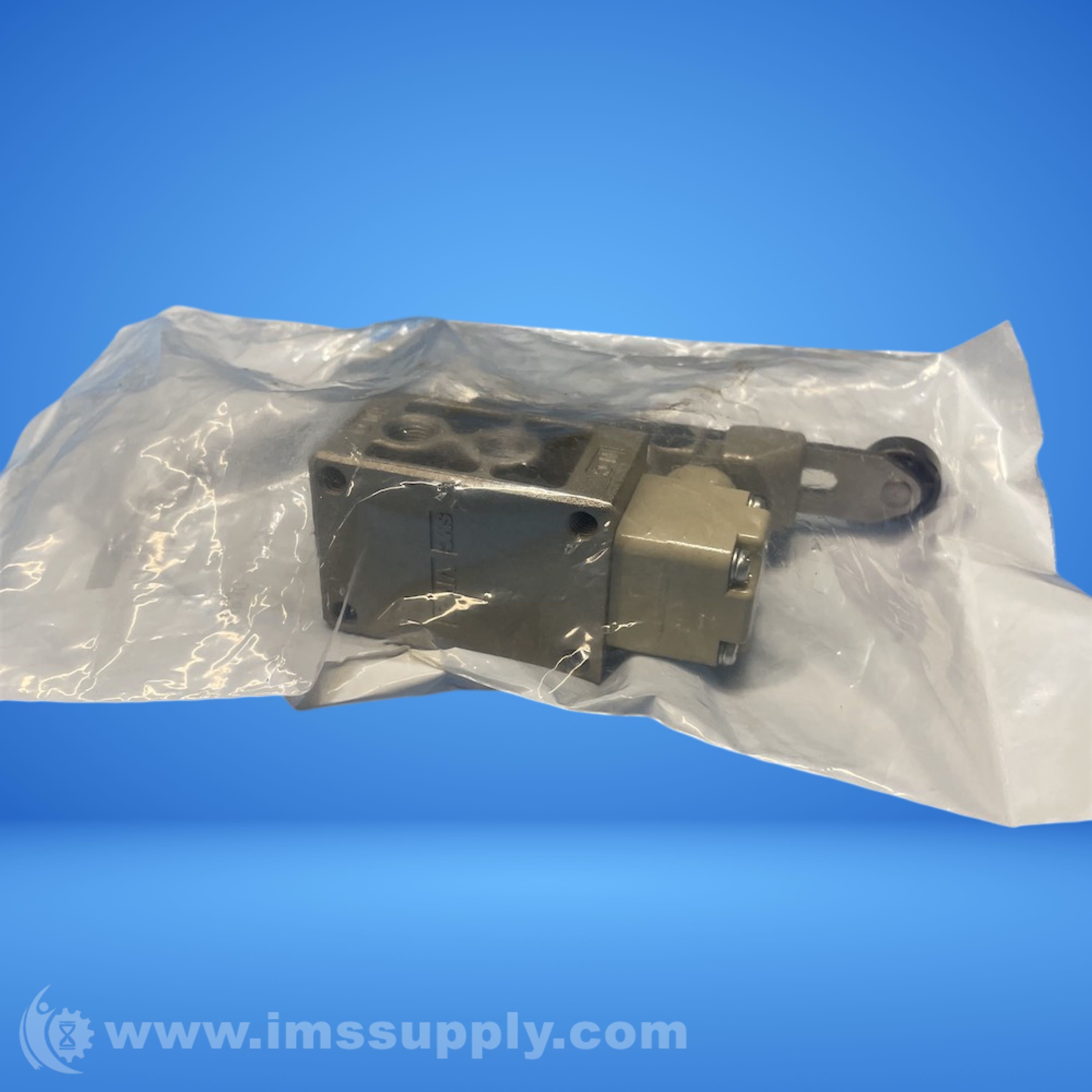

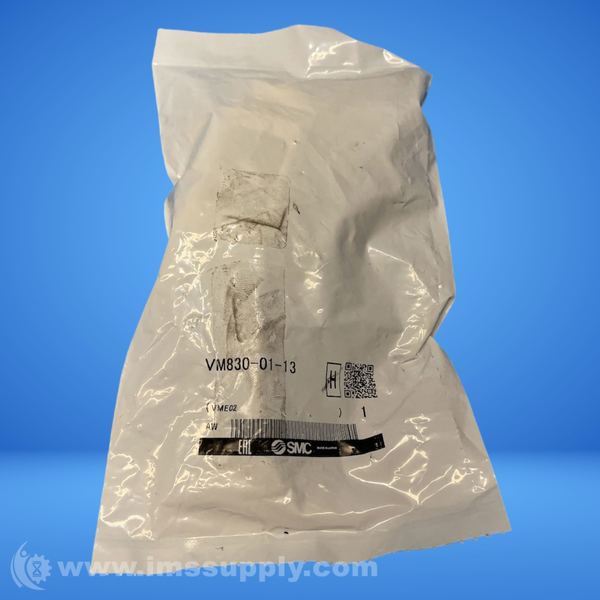

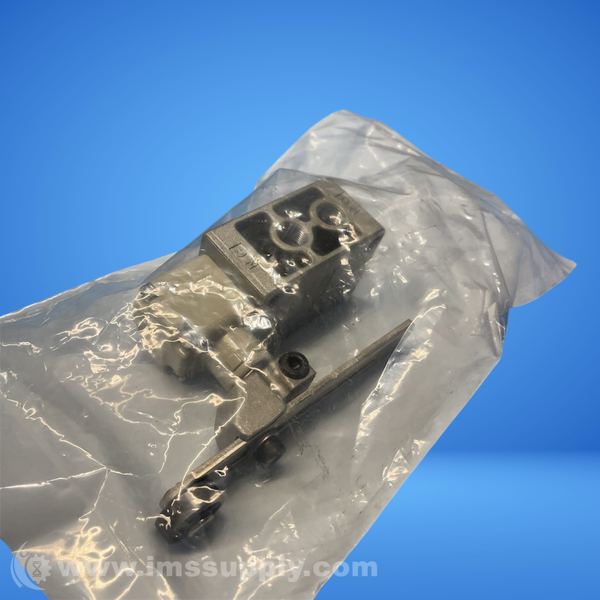

SMC VM830-01-13 Mechanical Valve
3-Port Mechanical Valve with Roller Lever Actuator
Specifications
- Series: VM
- Body Port: 1/8
- Fluid: Air
- Operating Pressure: -100kPa to 1.0MPa
- Effective Area (Cv): 6mm² (0.33)
- Ambient and Fluid Temperature: -5 to 60°C (no freezing)
- Port Size: Rc(PT) 1/8 (6A)
- Piping Type: Body Ported
- Flow Direction: 2-Way
- Number of Ports: 3
- Number of Positions: 2
- Actuator Type: Roller Lever
- Seal Material: Nitrile
- Operating Medium: Air, Inert Gas
- Normal State: Normally Open
- Port 1 Size/Type: 1/8 BSPT
- Valve Function: Spool
- Body Material: Aluminum
- Overall Length: 67 mm
- Overall Height: 40 mm
- Width: 67 mm
- Weight: 300 g
- Standards Met: JIS
- Port Gender: Female
- Port Connection Type: Threaded
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
