SMC VM830-F01-13 3 PORT MECHANICAL VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VM830-F01-`13
IMS Product Code: 2130135
Packaging: Sold Individually
Description:

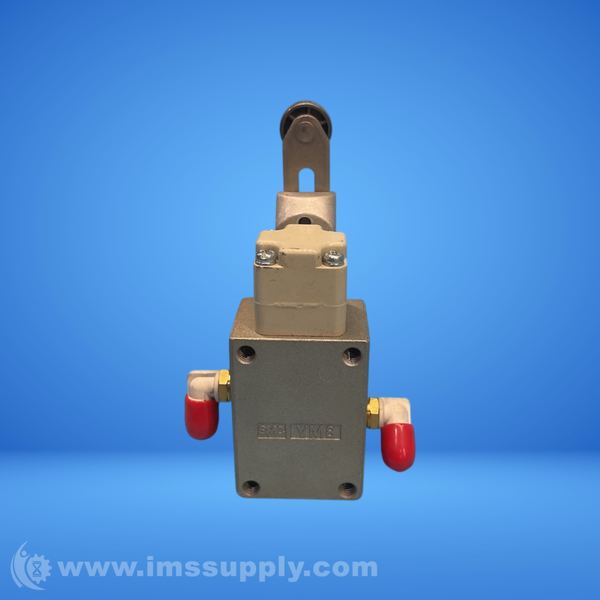

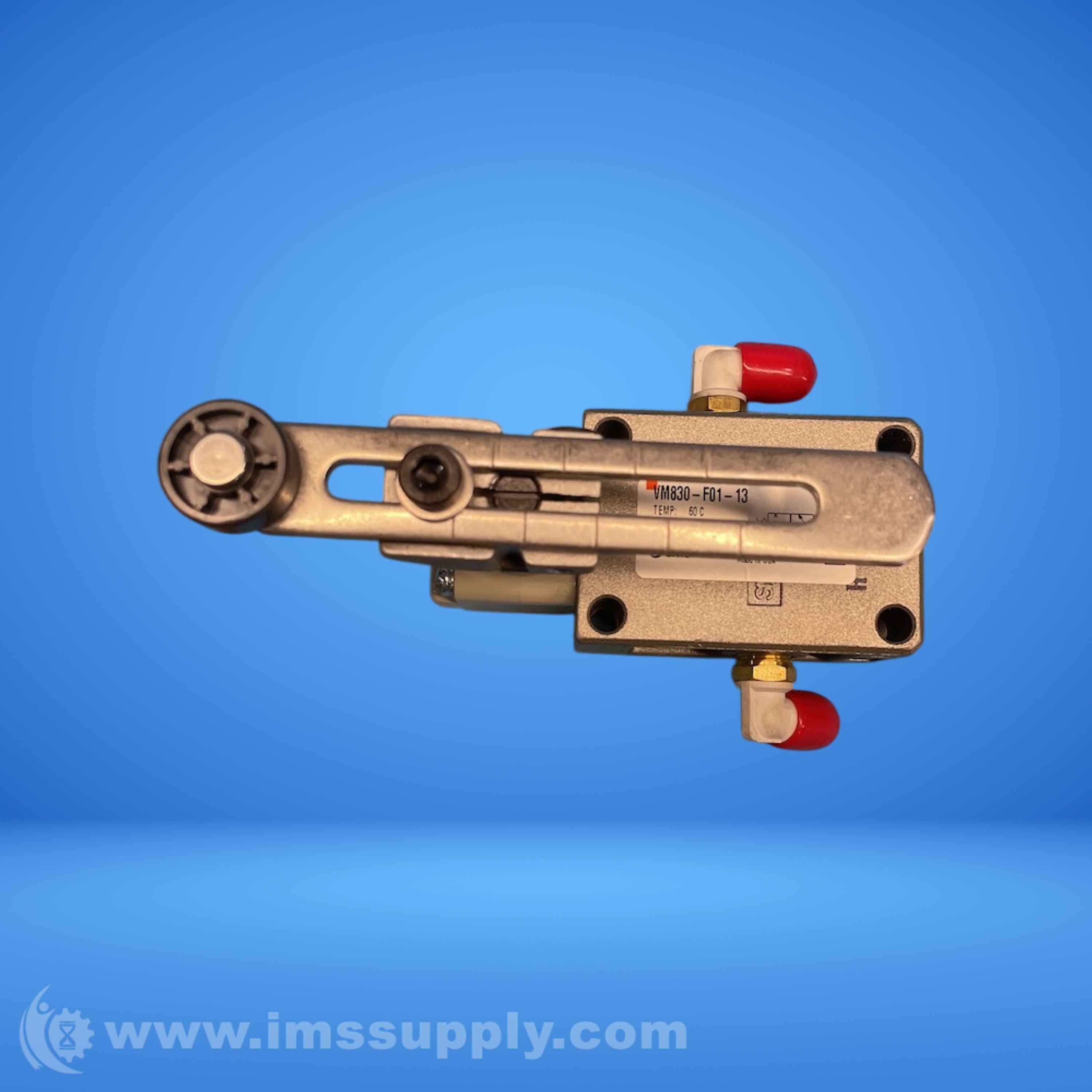

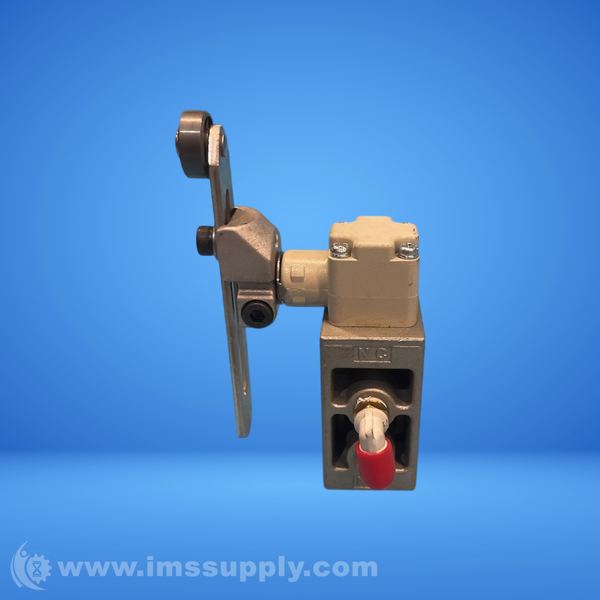

SMC VM830-F01-13 3 Port Mechanical Valve
3 port mechanical valve, heavy duty type VM800 series, for air, with adjustable roller lever actuator and 1/8 NPT port size.
Specifications
- Series: VM800
- Type: 3 Port Mechanical Valve
- Port Type: Rc (R)/NPT/G
- Arm Type: Spring Rod/Wire Rod/Adjusting Roller Arm
- Plunger Type: Roller Lever
- Switching Operation: Plunger/Rod Arm
- Fluid: air
- Operating Pressure: -100kPa to 1.0MPa
- Effective Area (Cv): 6mm 2 (0.33)
- Ambient and Fluid Temperature: -5 to 60 degrees C (no freezing)
- Port Size (Nominal Size): Rc(PT) 1/8 (6A)
- Number Of Ports: 3
- Weight: 0.56749 lb
- Actuator Type: Adjustable Roller Lever
