SMC VNA201A-15A PROCESS VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VNA201A-15A
IMS Product Code: 2123808
Packaging: Sold Individually
Description:

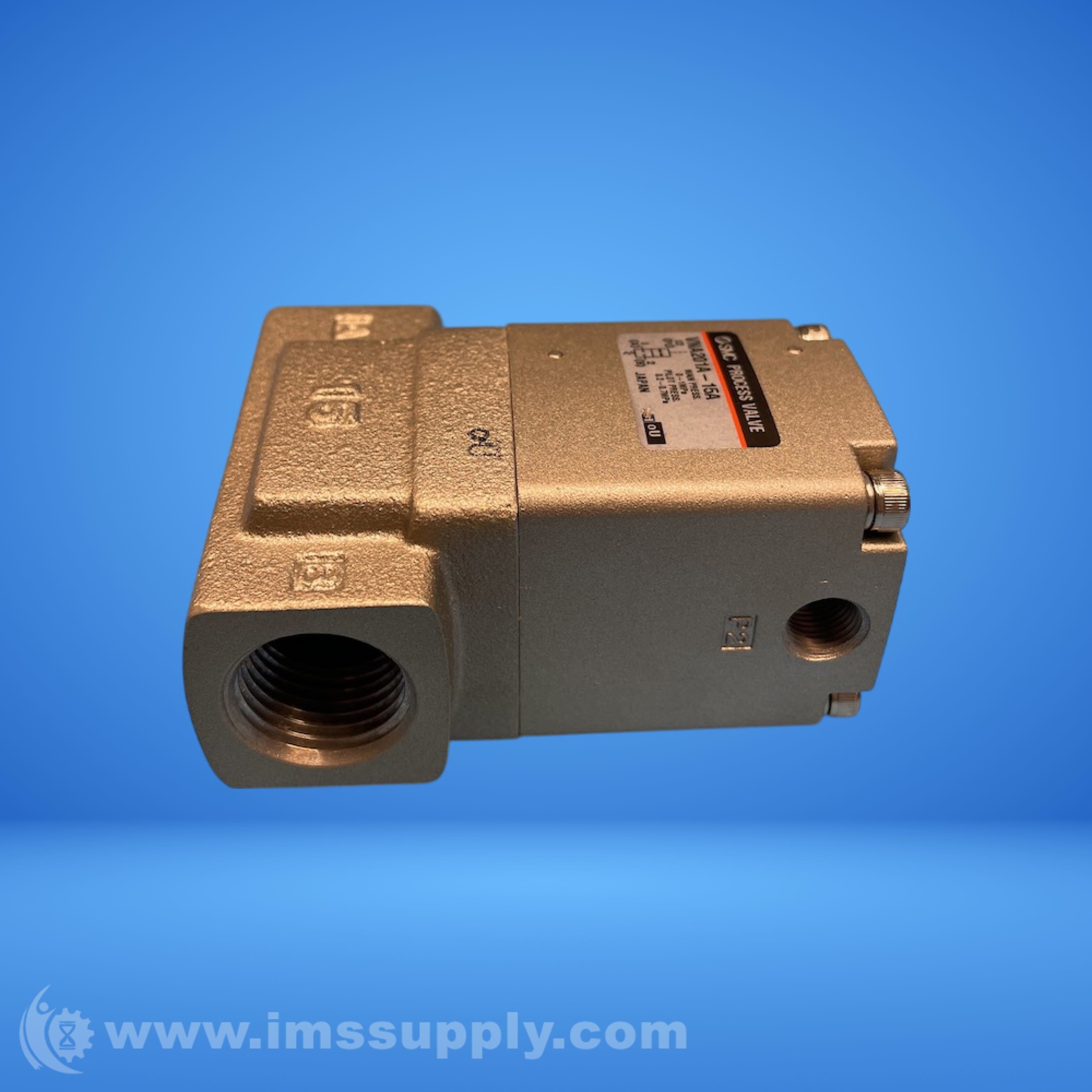

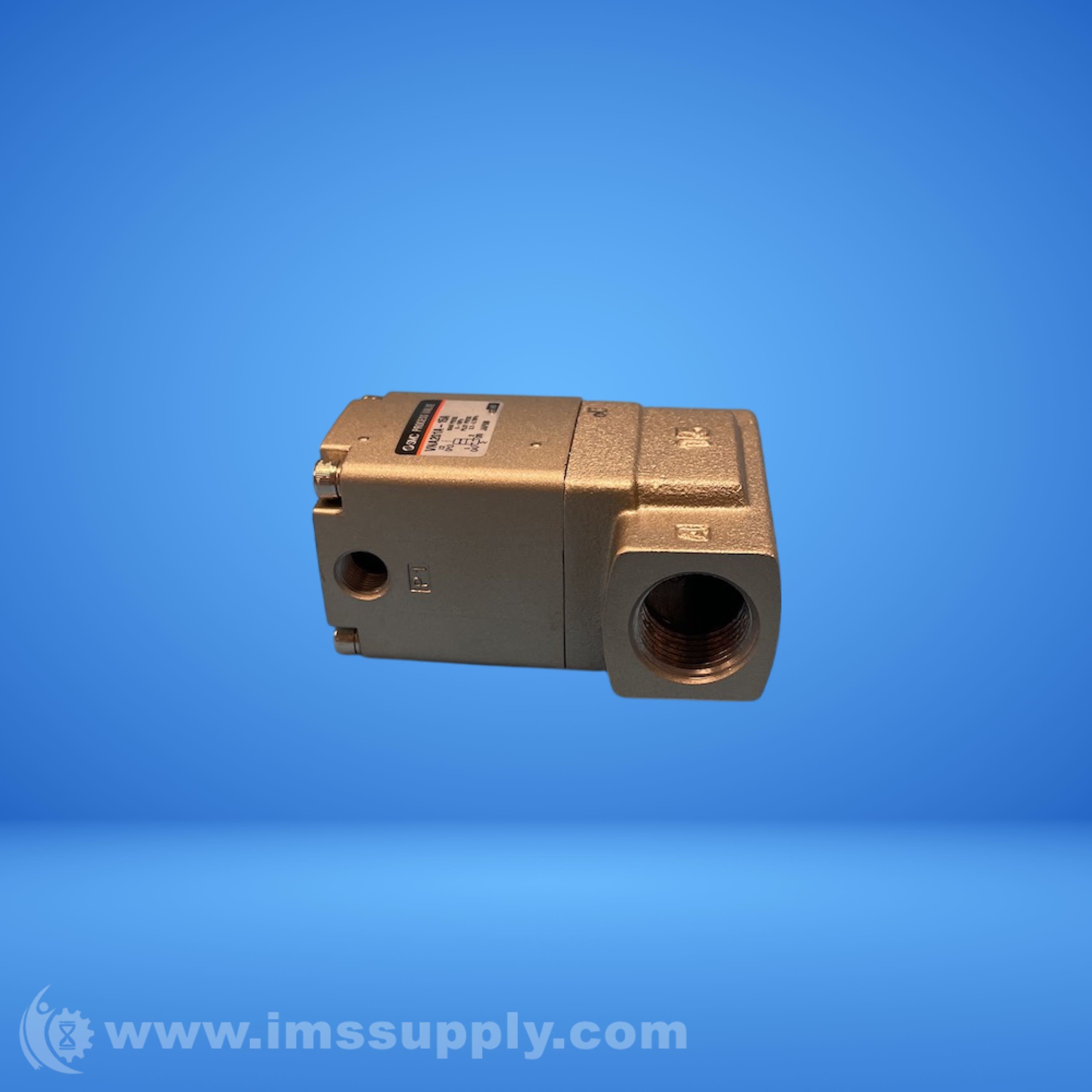

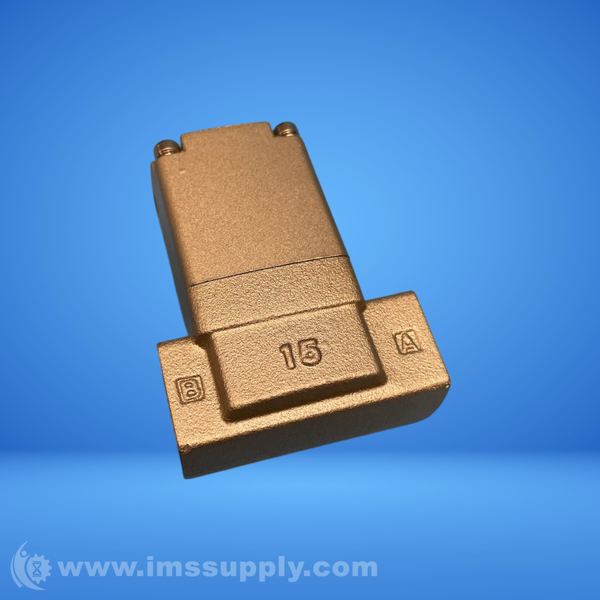

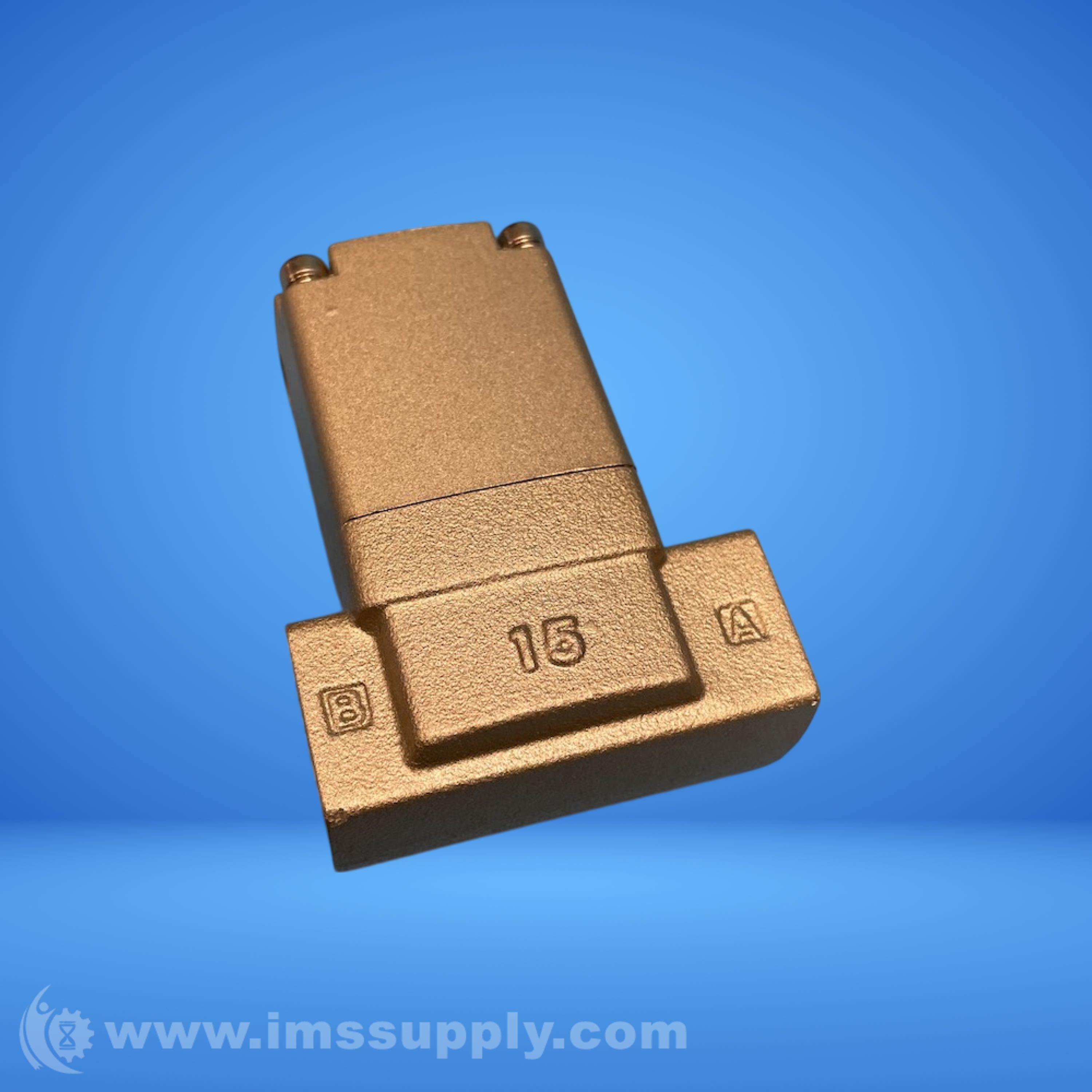

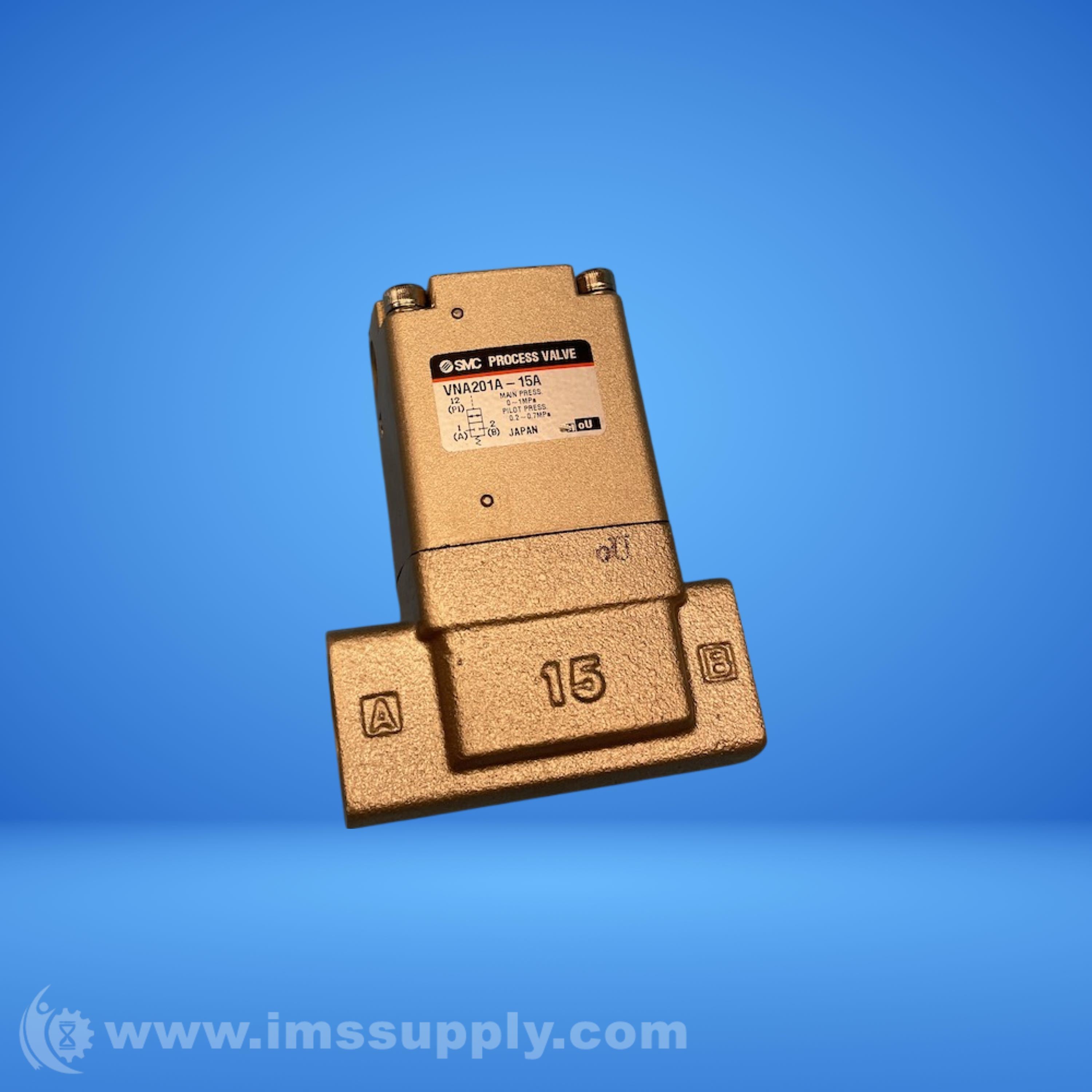

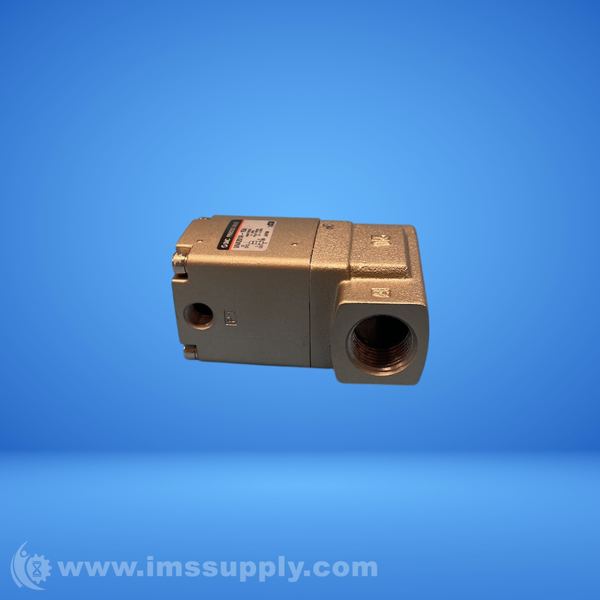

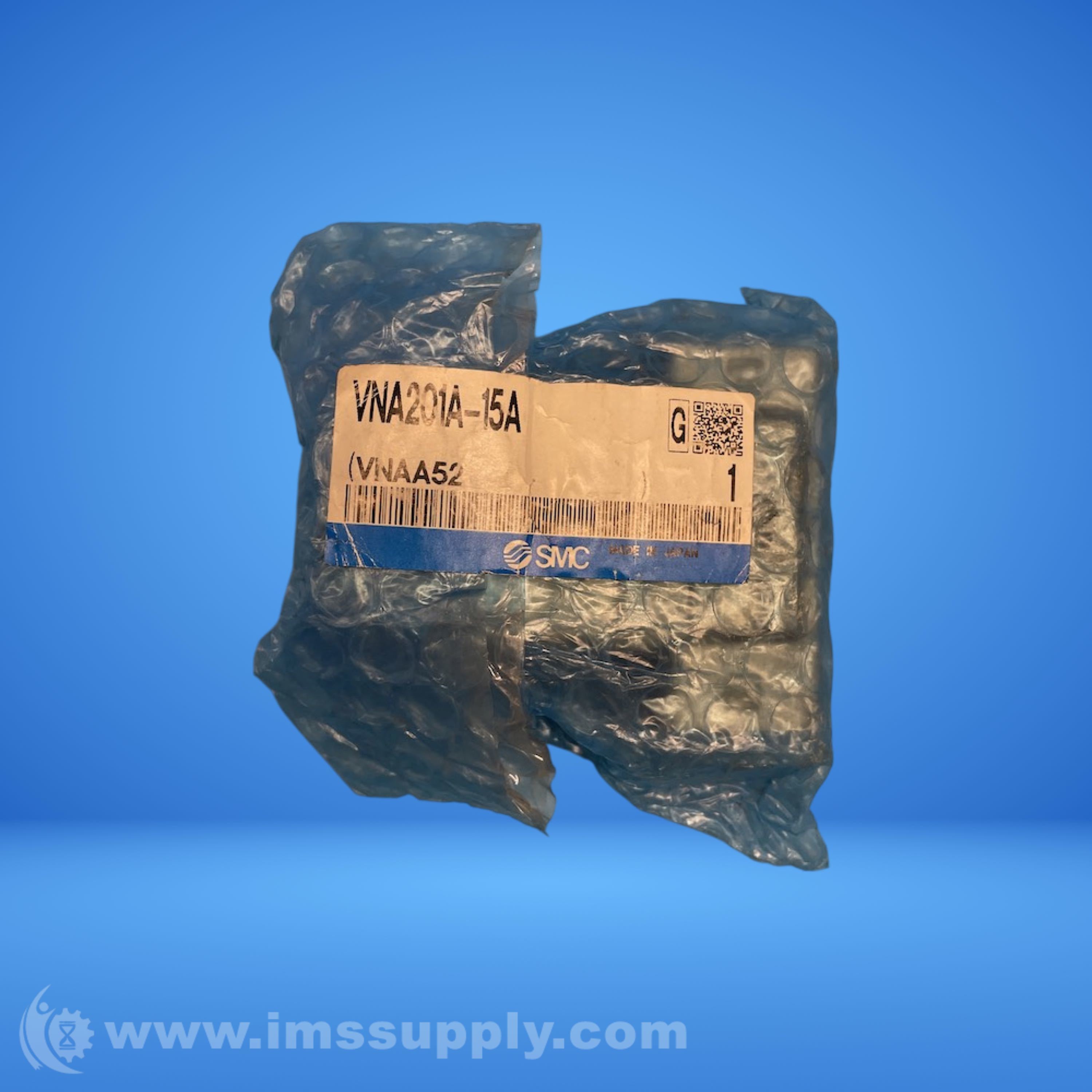

SMC VNA201A-15A Process Valve
2-port process valve for compressed air and air-hydro circuit control
Specifications
- Body Port Size: 1/2
- Weight: 0.324 kg
- Pressure Range: 0 to 1 MPa
- Flow Rate: 4.8 Cv
- Body Material: Aluminum Alloy
- Seal Material: Buna-N
- Fluid: air; CO2; nitrogen gas; freon 11, 113, 114; turbine oil, hydraulic fluid, argon, helium
- Proof pressure: 1.5MPa
- Operating pressure range: 0 to 1MPa
- Effective area: 13 to 770mm2
- Ambient temperature: -5 to 60C (no freezing)
- Size: 2 (ø15)
- Valve Type: 1 [NC (Operating Pressure 1 MPa)]
- Sealant: A (Nitrile Rubber)
- Thread: Rc
- Port Size: 15A (1/2)
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
