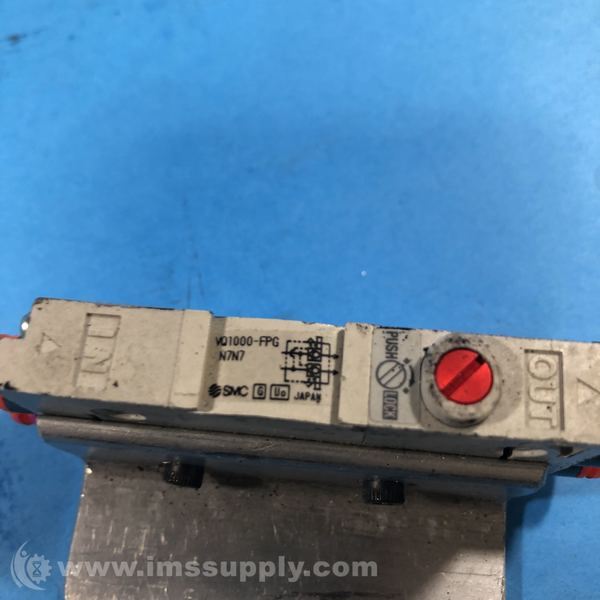

SMC VQ1000-FPG-N7N7 DOUBLE CHECK BLOCK
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VQ1000-FPG-N7N7
IMS Product Code: 1939774
Packaging: Sold Individually
Description:
SMC VQ1000-FPG-N7N7 Double Check Block
Double check block for separated type VQ1000 & VQ2000
Specifications
- Manifold pitch: 10.5 mm
- Flow-rate characteristics C (Metal seal): 0.72 dm3/(s*bar)
- Flow-rate characteristics C (Rubber seal): 1.0 dm3/(s*bar)
- Applicable cylinder bore size: Up to ?50
- Weight: 0.132 lb
- Piping Type: Manifold
- Country of Origin: JP
- Operating Temperature Range: -5 to 50 degrees C
- Maximum Operating Pressure: 0.15 MPa
- Flow Direction: 4-Way
- Port Size: One-touch fitting for 1/4 in
- Fluid: Air
- Series: VQ
- Max operating pressure: 0.8 MPa
- Min. operating pressure: 0.15 MPa
- Ambient & fluid temperature: -5 to 50 degrees C
Used (Special):

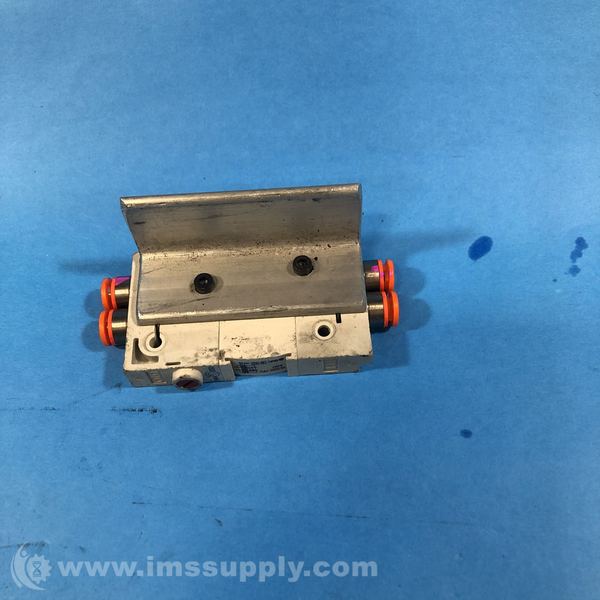

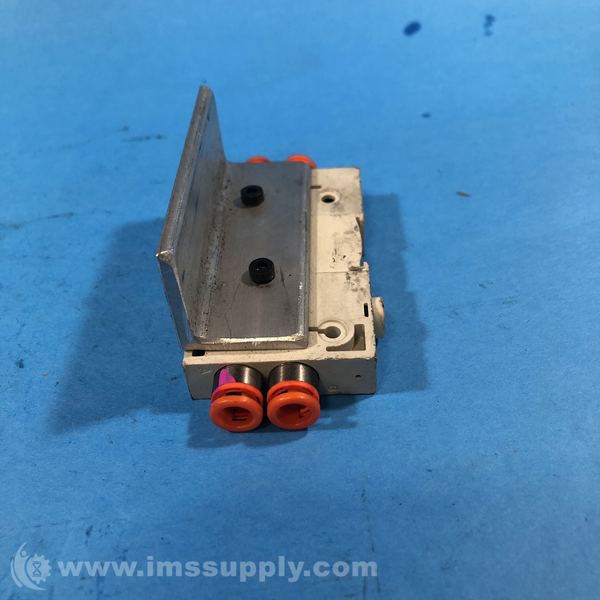

Right Angle Steel Bracket attached.
Availability: 1 In Stock
Ships today if ordered in the next 13 hours and 48 minutes.
