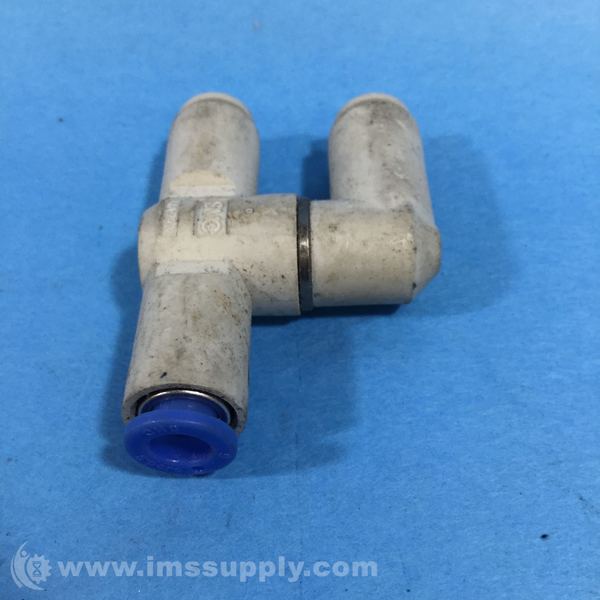

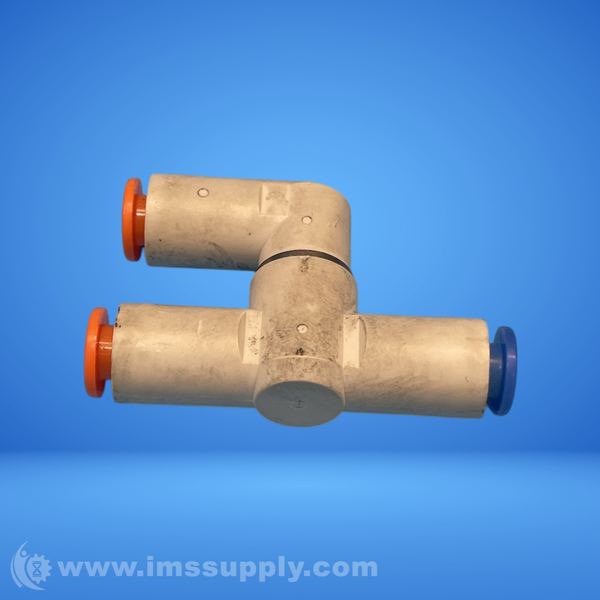

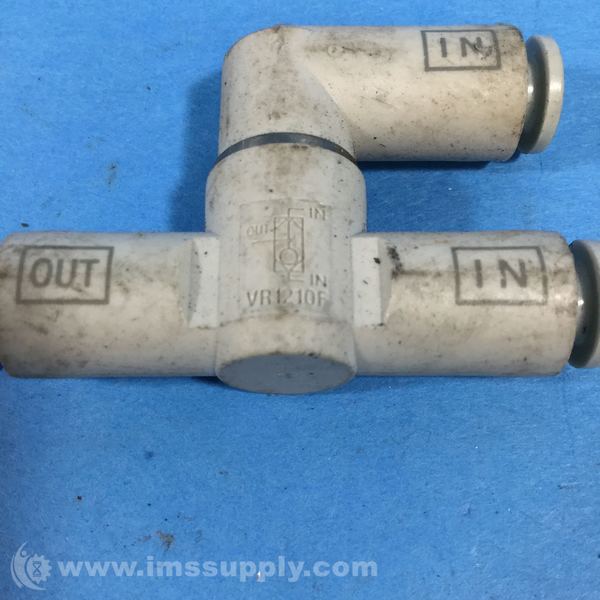

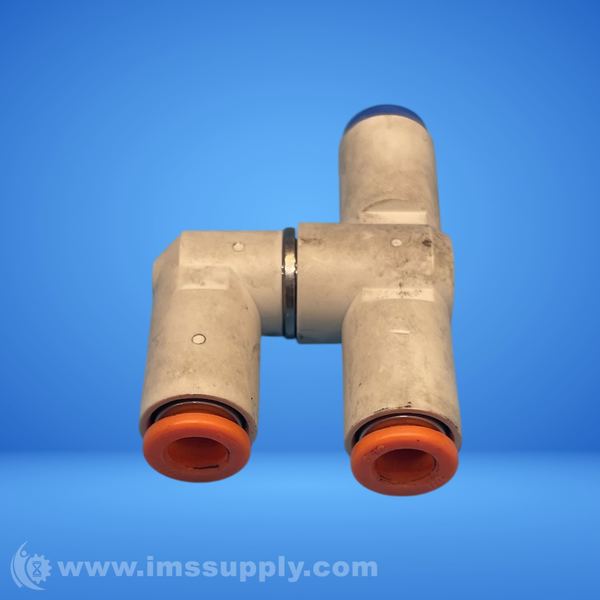

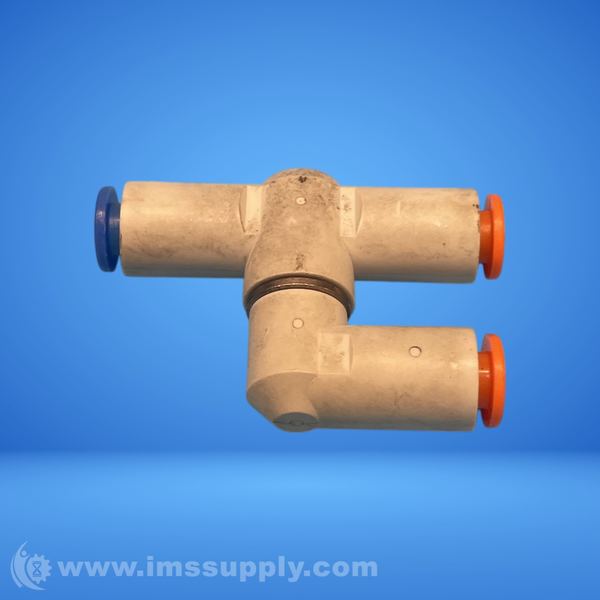

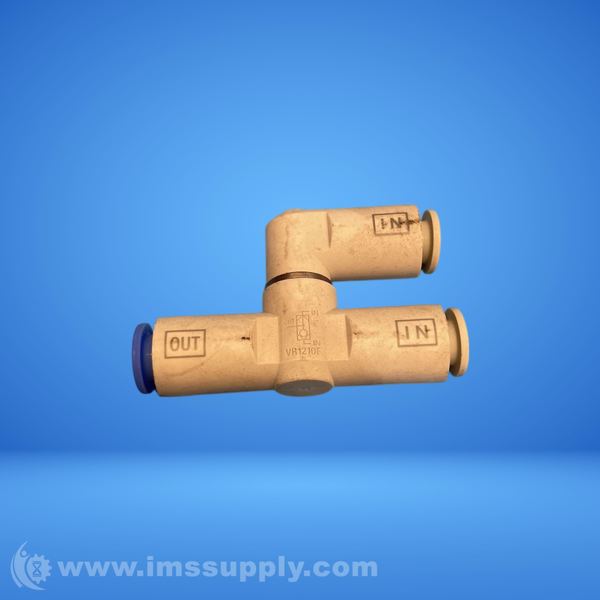

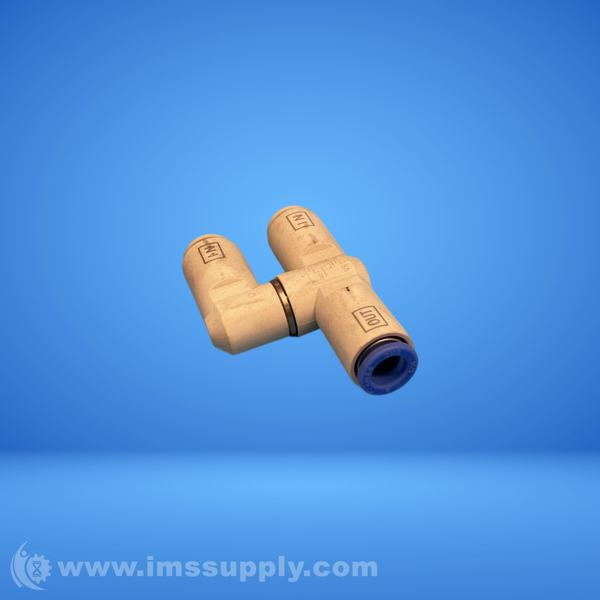

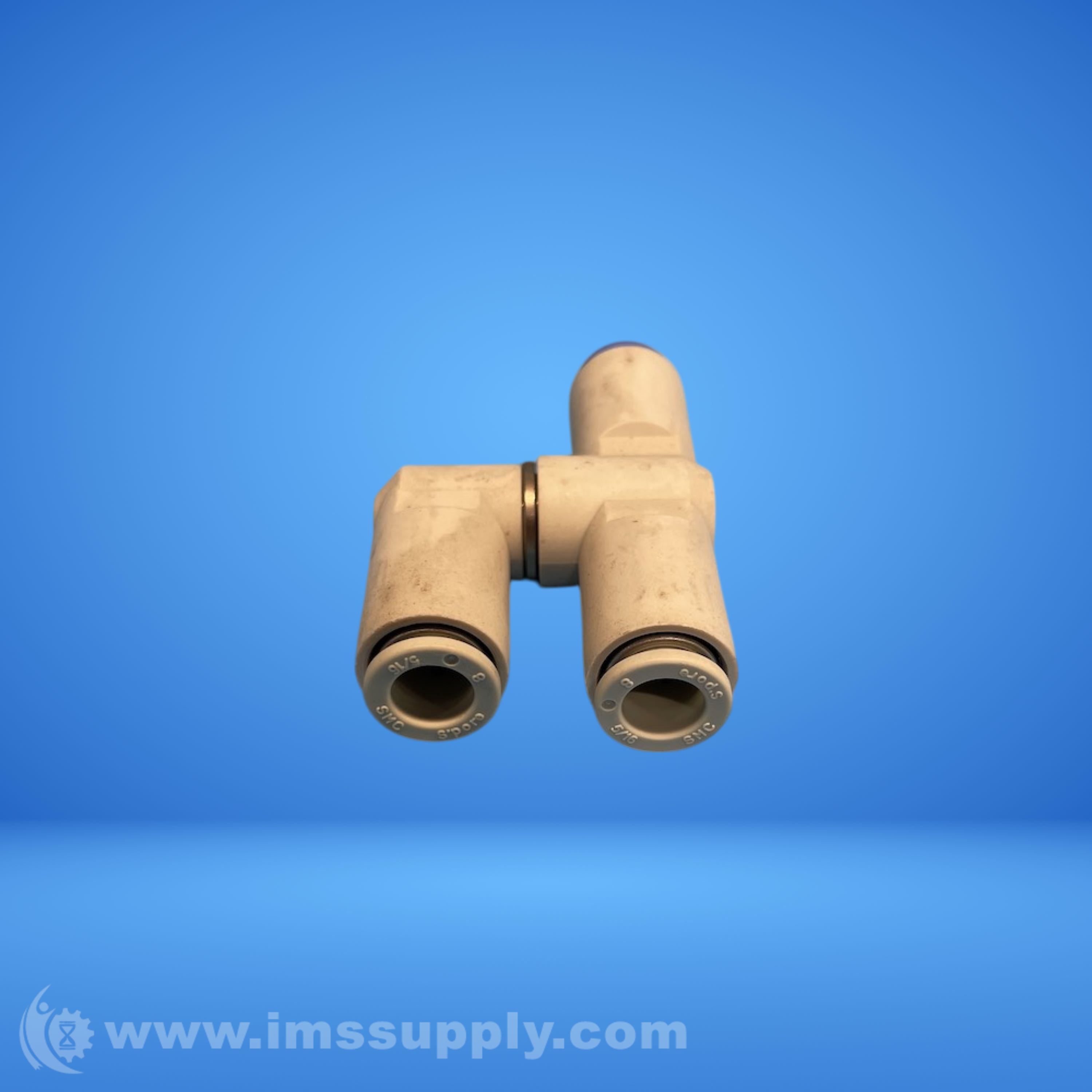

SMC VR1210F SHUTTLE VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VR1210F
IMS Product Code: 1758291
Packaging: Sold Individually
Description:
SMC VR1210F Shuttle Valve
Shuttle valve with one-touch fitting, 3-ported valve with one output and 2 pneumatic signal and input ports. Output is always supplied by high pressure inlet.
Specifications
- Maximum Operating Pressure: 1MPa (145 psi)
- Minimum Operating Pressure: 0.05MPa (7 psi)
- Proof Pressure: 1.5MPa (218 psi)
- Ambient and Fluid Temp: -5 to 60C (23 to 140F)
- Port Size: 5/32 in
- Operating Pressure Range: +0.05 to +1 Mpa
- Operating Temperature Range: -5 to +60 degrees C
- Overall Height: 32.2 mm
- Flow Coefficient Cv Flow Factor Kv: 3.2 mm
- Port Connection Type: Push To Connect
- Overall Length: 56 mm
- Port Gender: Female
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships today if ordered in the next 2 hours and 50 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships today if ordered in the next 2 hours and 50 minutes.
Used (Special):
Has 3 extra end bits attached to each part opening.
Availability: 1 In Stock
Ships today if ordered in the next 2 hours and 50 minutes.
