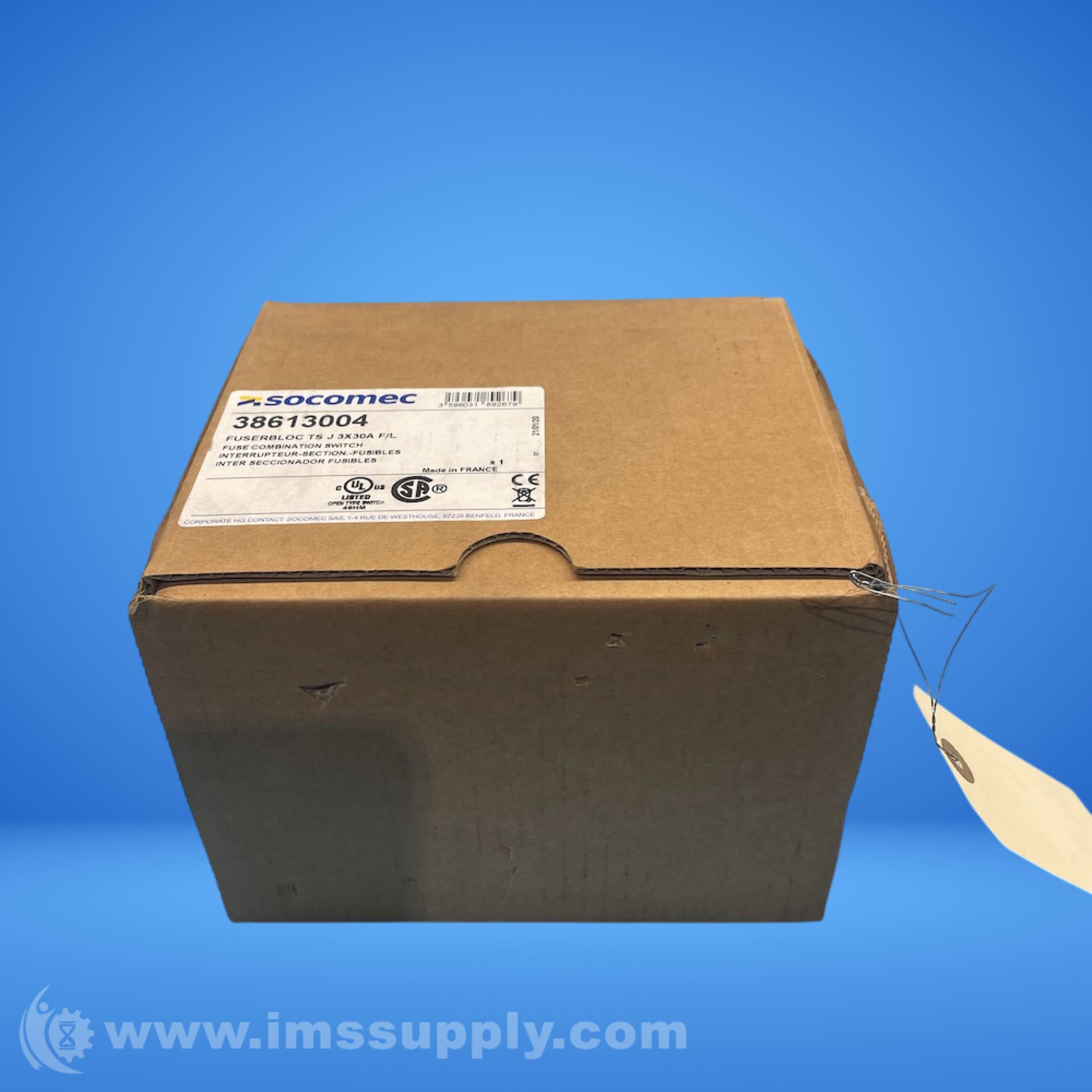

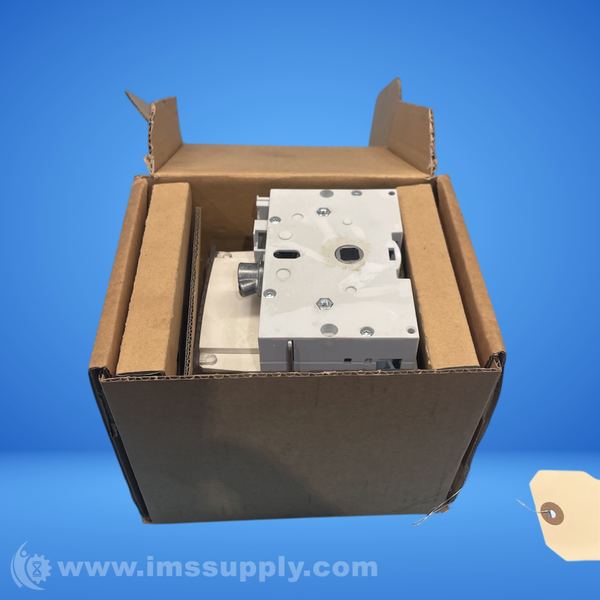

SOCOMEC 38613004 FUSIBLE DISCONNECT SWITCH
Quick Overview
Manufactured By: SOCOMEC
Manufacturer Part Number: 38613004
IMS Product Code: 2133488
Packaging: Sold Individually
Description:
Socomec 38613004 Fusible Disconnect Switch
3-pole, 30A fusible disconnect switch from the FUSERBLOC series, rated for 600 VAC/250 VDC with 200kA SCCR. Suitable for DIN rail or panel mounting.
Specifications
- Type: Fusible
- Series: FUSERBLOC
- Number of Poles: 3
- Voltage Rating: 600 VAC/250 VDC
- Current Rating: 30A
- SCCR: 200kA
- Mounting Type: DIN rail or panel mount
- UL Rating: UL 98
- Operation: Front or side operated
- Shaft Size: 10 x 10mm
- Length: 136 mm
- Width: 149.3 mm
- Depth: 123 mm
- Weight: 1.71 kg
- Fuse Size: J
- Operating Temperature: -20 ... +50 degrees C
- Storage Temperature: -40 ... +70 degrees C
- Endurance: 10000 cycles
- Operating Torque: 8 Nm
