SOLA E050E 0.05KVA CONTROL TRANSFORMER
Quick Overview
Manufactured By: SOLA
Manufacturer Part Number: E050E
IMS Product Code: 1765783
Packaging: Sold Individually
Description:

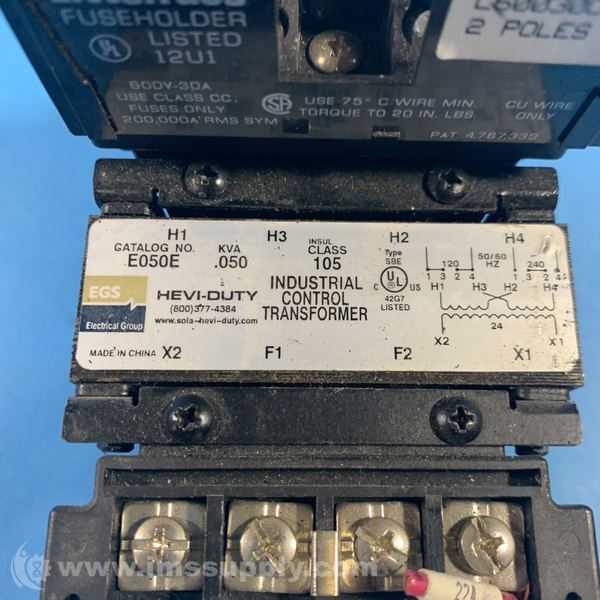

Sola E050E 0.05KVA Control Transformer
SolaHD Control Transformer, Encapsulated, 120/240 VAC Primary, 24 VAC Secondary, 0.05 kVA Power, 50/60 Hz Frequency, 1 ph, Wire Lead Connection, Surface Mounting, 105 deg C Insulation. Epoxy encapsulated to seal transformer windings against moisture, dirt and industrial contaminants.
Specifications
- VA Rating: 0.050KVA
- Primary Voltage: 120X240
- Secondary Voltage: 24
- Frequency: 50/60 Hz
- Insulation System: 55°C Rise, 105°C insulation system
- Construction: Epoxy encapsulated
- Dimensions: 7.36 in L x 6.38 in W x 5.56 in H
- Enclosure Type: IP20
- Phase: 1
- Series: SBE
- Temperature Rating (Degrees F): 131
- Type: Encapsulated
- Connection type: Lead Wire
- Mounting type: Surface
- RoHS: Compliant
Used (Special):

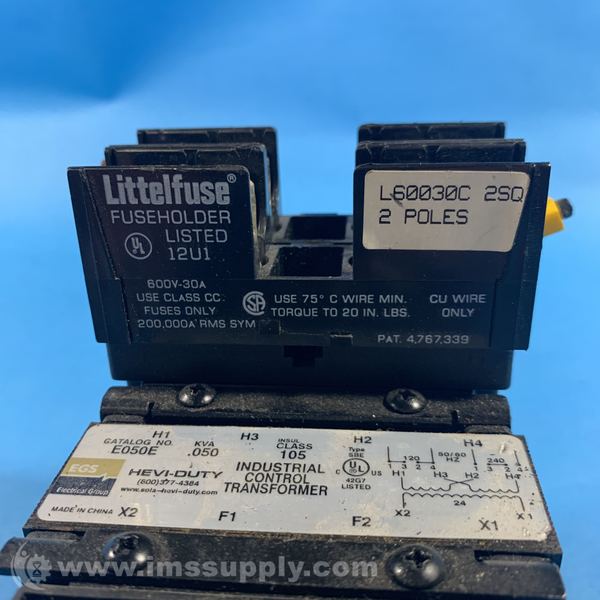

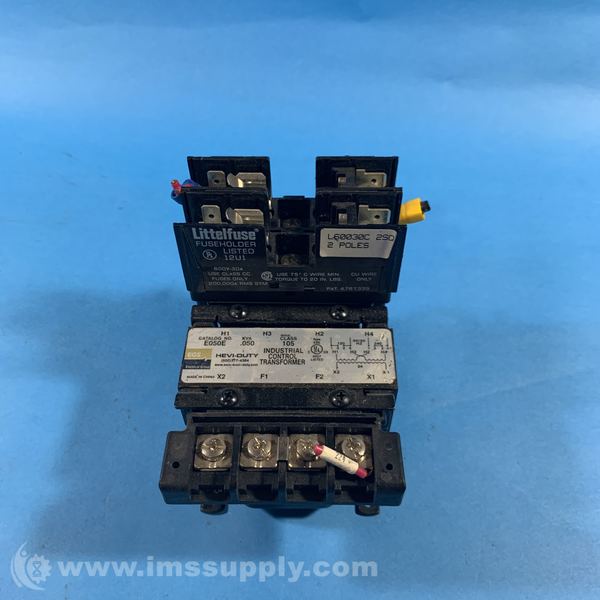

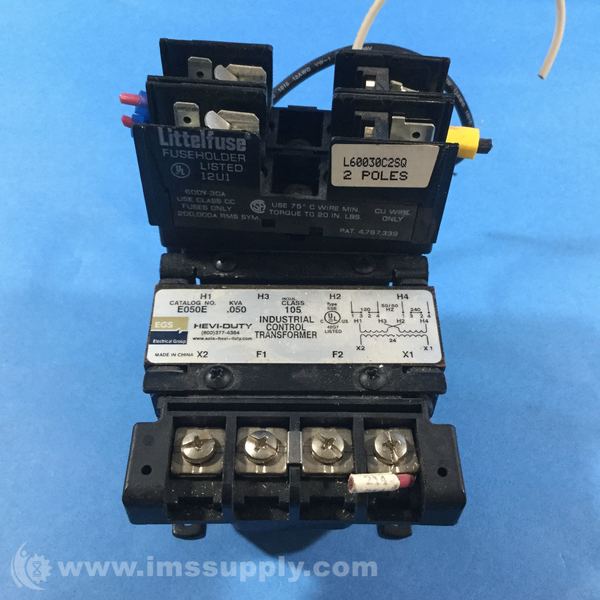

LittelFuse fuseholder part number L60030C-2SQ attached.
Availability: 1 In Stock
Ships today if ordered in the next 5 hours and 17 minutes.
Used (Special):
Littelfuse L60030C-2SQ fuseholder attached
Availability: 2 In Stock
Ships today if ordered in the next 5 hours and 17 minutes.
