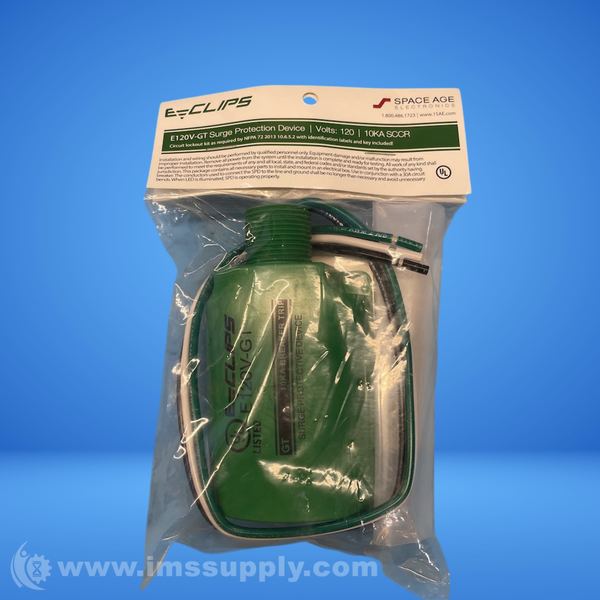

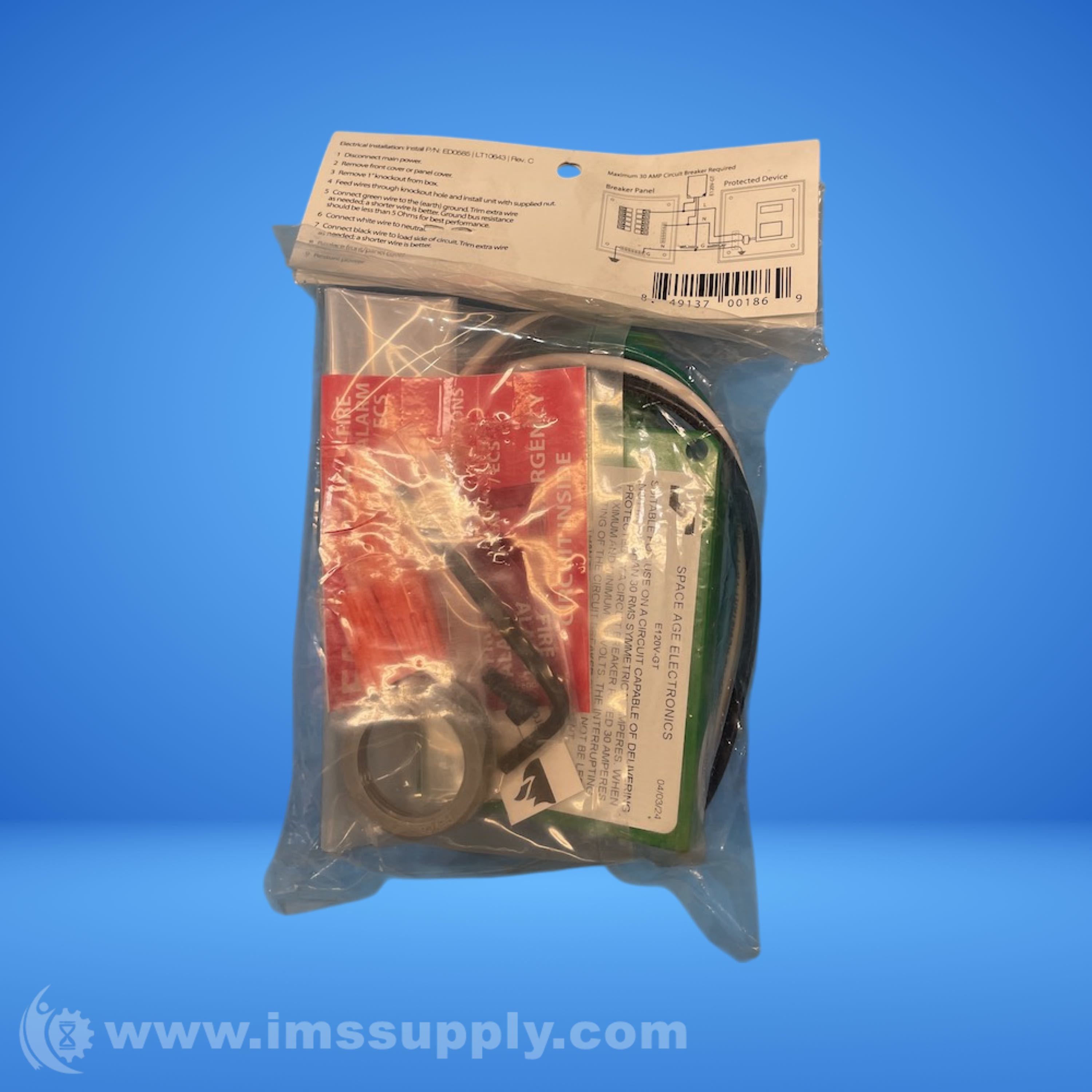

SPACE AGE ELECTRONICS E120V-GT SURGE PROTECTION DEVICE
Quick Overview
Manufactured By: SPACE AGE ELECTRONICS
Manufacturer Part Number: E120V-GT
IMS Product Code: 2127350
Packaging: Sold Individually
Description:
Space Age Electronics E120V-GT Surge Protection Device
120V AC surge protection device with hybrid surge protection, hardwired connection, and LED indication.
Specifications
- Operating Voltage: 120 V
- Maximum Surge Current: 25,000 Amps
- Energy Dissipation: 500 Joules
- Clamping Response Time: <5 nano seconds
- Circuits Protected: L-N L-G N-G
- Connection Type: Hardwired
- Installation Configuration: Parallel
- Dimensions: 4.4" x 2.6" W x 1.5" (11.2 x 6.6 x 3.8 cm)
- Weight: 0.33 lb (0.15 kg)
- Enclosure Material: UL94 QMFZ2/8 (green)
- Short Circuit Current Rating: 5KA
- Survivability: UL rated X2 @5000 Amps to open series external circuit breaker
- Mount: Hub
- Service Voltage: 120 Single Phase
- Capacitance: <2000 pf
- Current: Non-load bearing
- Operating Temperature: -40° to 185°F (-40° to 85°C)
- Diagnostic Indicator: LED
- ELOCK Circuit Breaker Lockout Kit: Included
- Country of Manufacture: Made in USA
- Approvals: UL File #E319370
