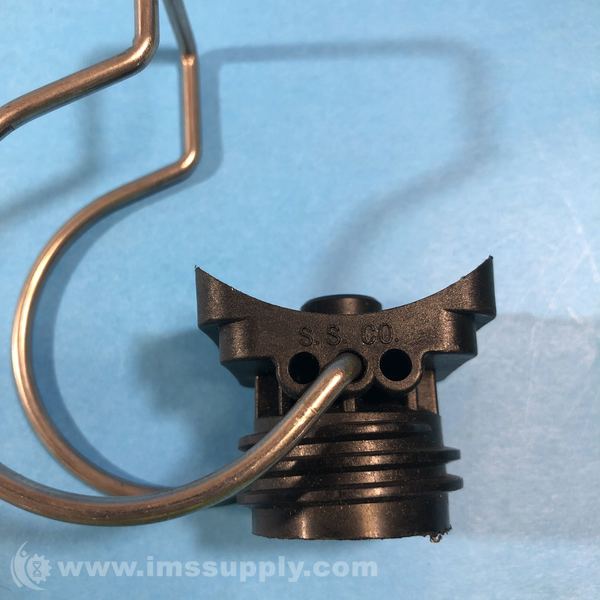

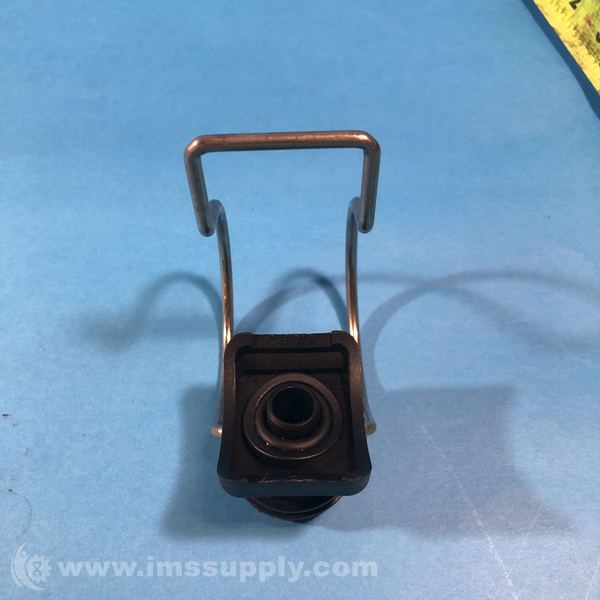

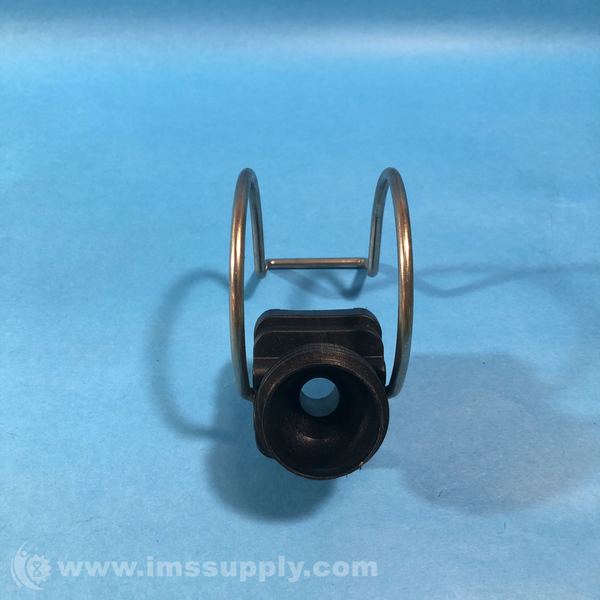

SPRAYING SYSTEMS MFG 20570 CLIP-EYELET NOZZLE BODY
Quick Overview
Manufactured By: SPRAYING SYSTEMS MFG
Manufacturer Part Number: 20570
IMS Product Code: 1935746
Packaging: Sold Individually
Description:
Spraying Systems Mfg 20570 Clip-Eyelet Nozzle Body
Snap-on pipe connection for use on 1", 1-1/4", 1-1/2" or 2" pipe. Spring-grade stainless steel single- and double-clamp versions. Chemical- and corrosion-resistant materials withstand high temperatures. Inlet sizes for 9/16" (14.5 mm) or 21/32" (17 mm) dia. drill holes, retrofit seals are available for 27/32" (21 mm) dia. drill holes. For use with Clip-Eyelet ball-type spray tips, optional threaded ball allows for use with conventional nozzles, blank spray tip available to prevent liquid flow. Ball-type tips allow quick adjustment of spray direction without disturbing pipe connection. Ideal for cleaning, coating and rinsing applications.
Specifications
- Pipe Connection: Snap-on for 1", 1-1/4", 1-1/2", or 2" pipe
- Inlet Sizes: 9/16" (14.5 mm) or 21/32" (17 mm) dia. drill holes
- Material: Spring-grade stainless steel
- Application: Cleaning, coating, and rinsing
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 3 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
New - Missing Box (Special):
missing metal clamp.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
