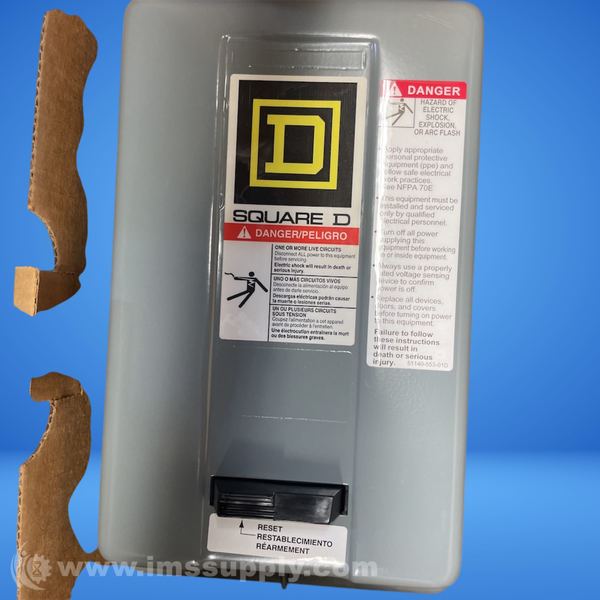

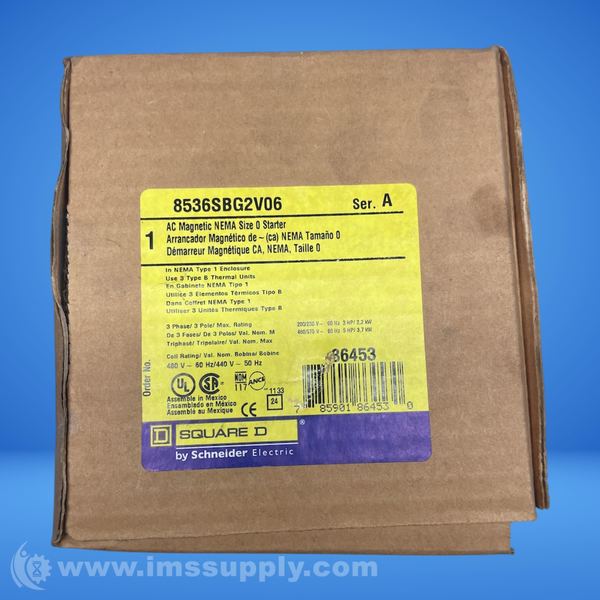

SQUARE D 8536SBG2V06 SERIES A MAGNETIC MOTOR STARTER
Quick Overview
Manufactured By: SQUARE D
Manufacturer Part Number: 8536SBG2V06
IMS Product Code: 2142133
Series: A
Unspecified
Series: A
Packaging: Sold Individually
Description:
Square D 8536SBG2V06 Series A Magnetic Motor Starter: Non-Reversing, 3 Poles, NEMA Size 0, 18 A, 480V AC Coil
- Brand: SQUARE D
- Manufacturer Part Number: 8536SBG2V06
- Starter Style: NEMA
- Overload Protection Type: Thermal
- Thermal Units Required: 3 Melting Alloy Units (Not Included)
- Reversing Capability: Non-Reversing
- Number of Poles: 3
- Phase: Three
- NEMA Size: 0
- Max Current (AC): 18 A
- Coil Voltage: 480V AC
- Frequency: 50/60 Hz
- Nominal Coil Voltage @ 60Hz: 480V AC
- Maximum Voltage Rating: 600V AC
- Horsepower @ Three Phase - 208V AC: 3 hp
- Horsepower @ Three Phase - 240V AC: 3 hp
- Horsepower @ Three Phase - 480V AC: 5 hp
- Horsepower @ Three Phase - 600V AC: 5 hp
- Includes Auxiliary Contacts: No
- Auxiliary Contacts Included: No Auxiliary Contacts Included
- Operator: None
- Includes Pilot Light: No
- Wire Termination Type:Screw Clamp
- NEMA Enclosure Rating: 1
- Overall Height: 10 in
- Overall Width: 6 in
- Overall Depth: 5.56 in
- Standards: CSA; UL Listed
- UNSPSC: 39121521
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 6 hours and 24 minutes.
