SQUARE D 9001BG201 START STOP CONTROL STATION
Quick Overview
Manufactured By: SQUARE D
Manufacturer Part Number: 9001BG201
IMS Product Code: 1743378
Packaging: Sold Individually
Description:

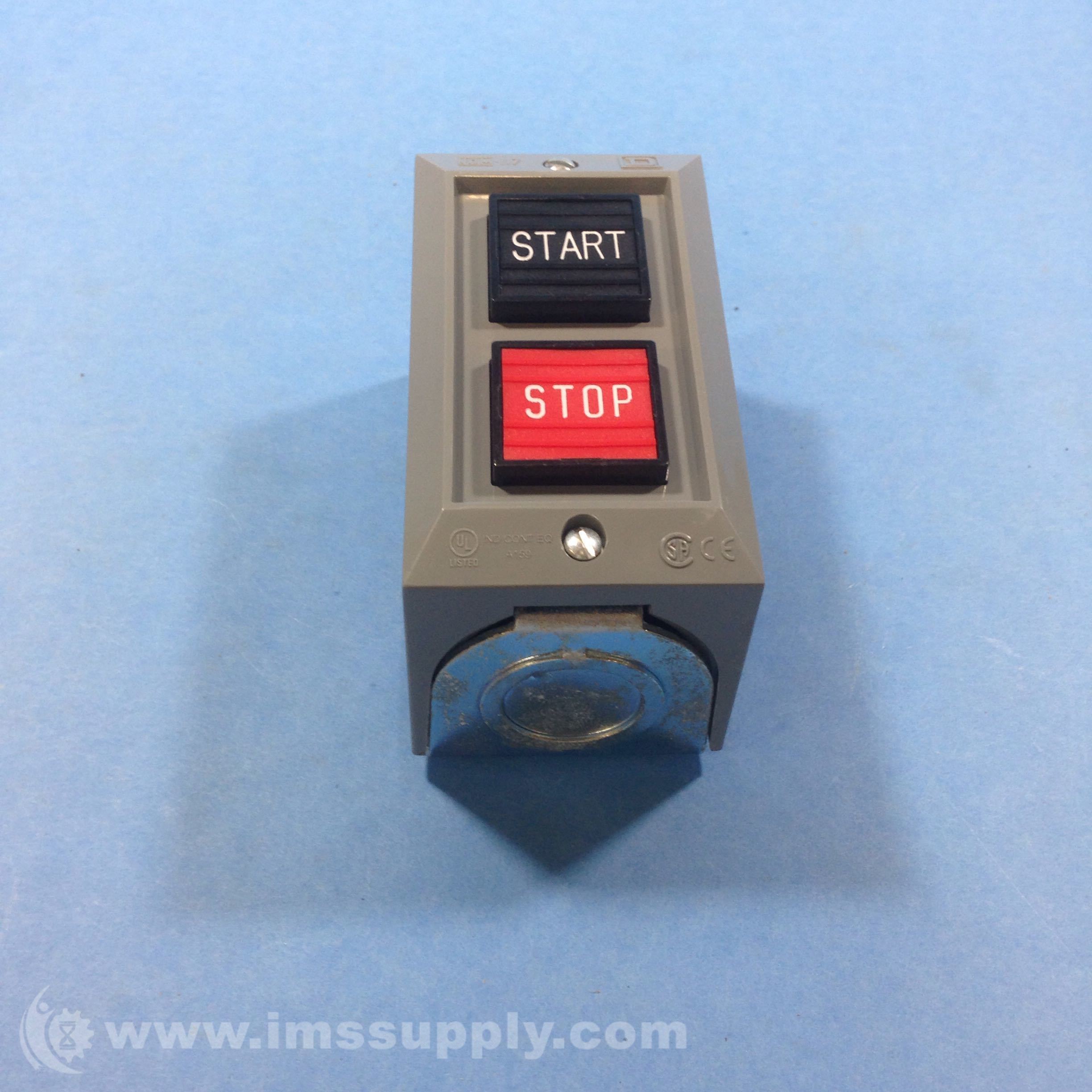

Square D 9001BG201 Start Stop Control Station

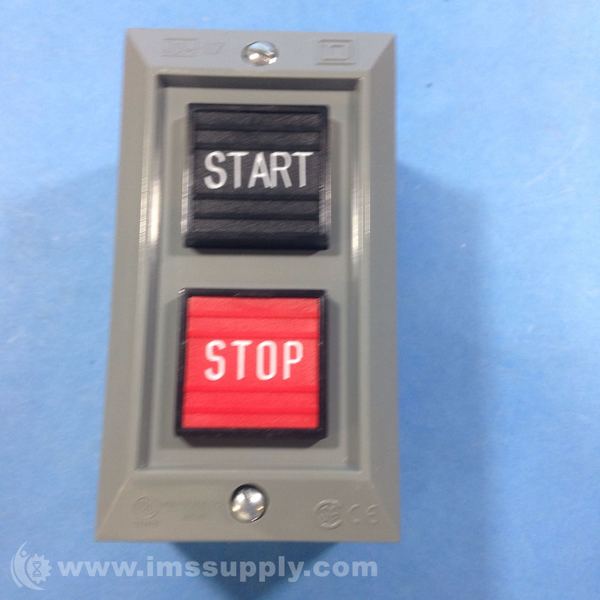

NEMA 1 general-purpose pushbutton control station with start/stop option. It has a START push button with a normally open contact and a STOP push button with a normally closed contact. The enclosure is gray plastic, surface-mounted, and rated IP20. The contacts have a B600 rating for inductive loads and P600 for DC loads.
Specifications
- AC Contact Rating: 0.6 A @ 600 V; 0.75 A @ 480 V; 1.5 A @ 240 V; 3.75 A @ 120 V
- Contact Form: 1NO/1NC
- DC Contact Rating: 0.2 A @ 600 V; 0.55 A @ 240 V; 1.1 A @ 120 V
- Enclosure Color: Gray
- Enclosure Material: Plastic
- Hub Size: 3/4 in
- Hub Style: Feed-Thru
- IP Rating: IP20
- Mounting Style: Surface
- NEMA Enclosure Rating: 1
- Number of Operators: 2
- Number of Pilot Lights: 0
- Operating Temperature - Maximum: 158 degrees F
- Operating Temperature - Minimum: -13 degrees F
- Operator Action: (2) Momentary
- Operator Color: Black; Red
- Operator Configuration: (2) Push Buttons
- Overall Depth: 2.34 in
- Overall Height: 5 in
- Overall Width: 2.06 in
- Push Button Type: Flush
- Standards: CE; CSA LR25490 Class 3211 03; UL E42259 CCN NKCR
- Type: Pushbutton
- Dimensions (HxWxD): 3.69 x 2.34 x 2.06
- Weight: 0.23 lb
- Termination Type: Screw

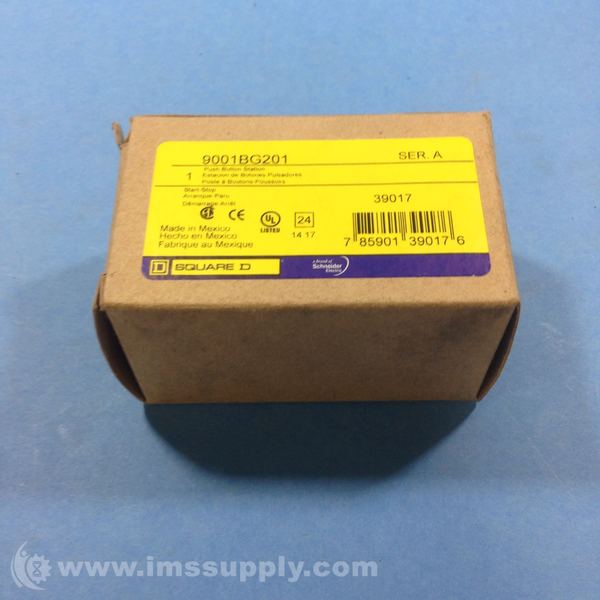

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
