Quick Overview

Manufactured By: SQUARE D
Manufacturer Part Number: 9007C54J
IMS Product Code: 1730034
Packaging: Sold Individually

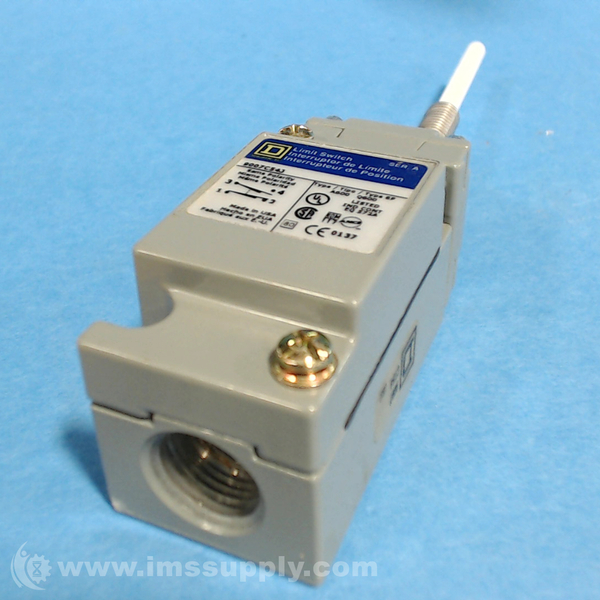

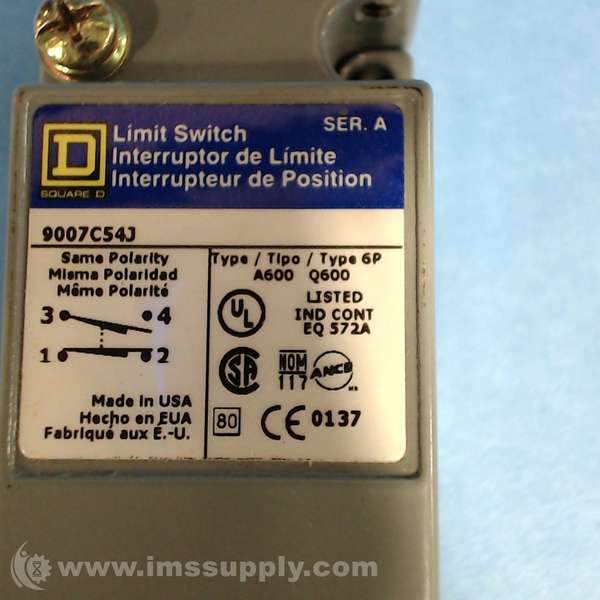

Square D 9007C54J Heavy Duty Limit Switch

  • Item Heavy Duty Limit Switch
  • Actuator Style Wobble Stick
  • Actuator Location Top
  • Amps 10
  • Contact Form 1NO/1NC
  • Voltage Rating 600VAC/DC
  • NEMA Rating 1, 2, 4, 6, 6P, 12, 13
  • Wiring Entry 1/2" NPT
  • Electrical Connection Screw Terminals
  • IP Rating 67
  • Movement Any Direction
  • Travel Total Travel 90 Degrees
  • Series 9007C
  • Operating Temp. Range 0 Degrees to 185 Degrees F
  • Actuator Length 4.25"
  • Body Material Zinc
  • Width 1.55"
  • Height 4.02"
  • Depth 1.79"
  • Operating Force 3.00 in.-lb.
  • Standards UL, CSA, CE
