SQUARE D 9013FHG52J59 PRESSURE SWITCH
Quick Overview
Manufactured By: SQUARE D
Manufacturer Part Number: 9013FHG52J59
IMS Product Code: 2177785
Packaging: Sold Individually
Description:

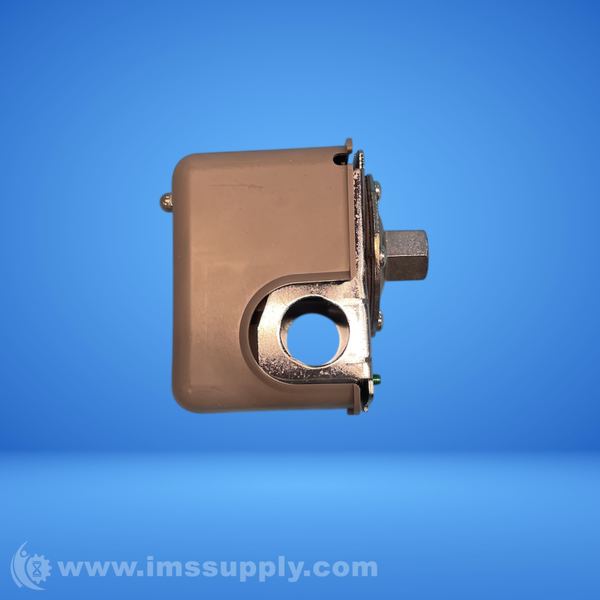

Square D 9013FHG52J59 Pressure Switch
Electromechanical pressure switch for controlling small electrically driven air compressors. Adjustable cut-out set at 175 PSI with 1/4" NPSF internal connection.
Specifications
- Pressure Sensor Name: 9013FH
- Value of Setting: Off at 175 psi
- Electrical Circuit Type: Power circuit
- Type of Operation: Regulation between 2 thresholds
- Scale Type: Fixed differential
- Setting: Internal
- Contacts Type and Composition: 2 NC, snap action, DPST-DB, Form YY
- Electrical Connection: Screw-clamp terminals

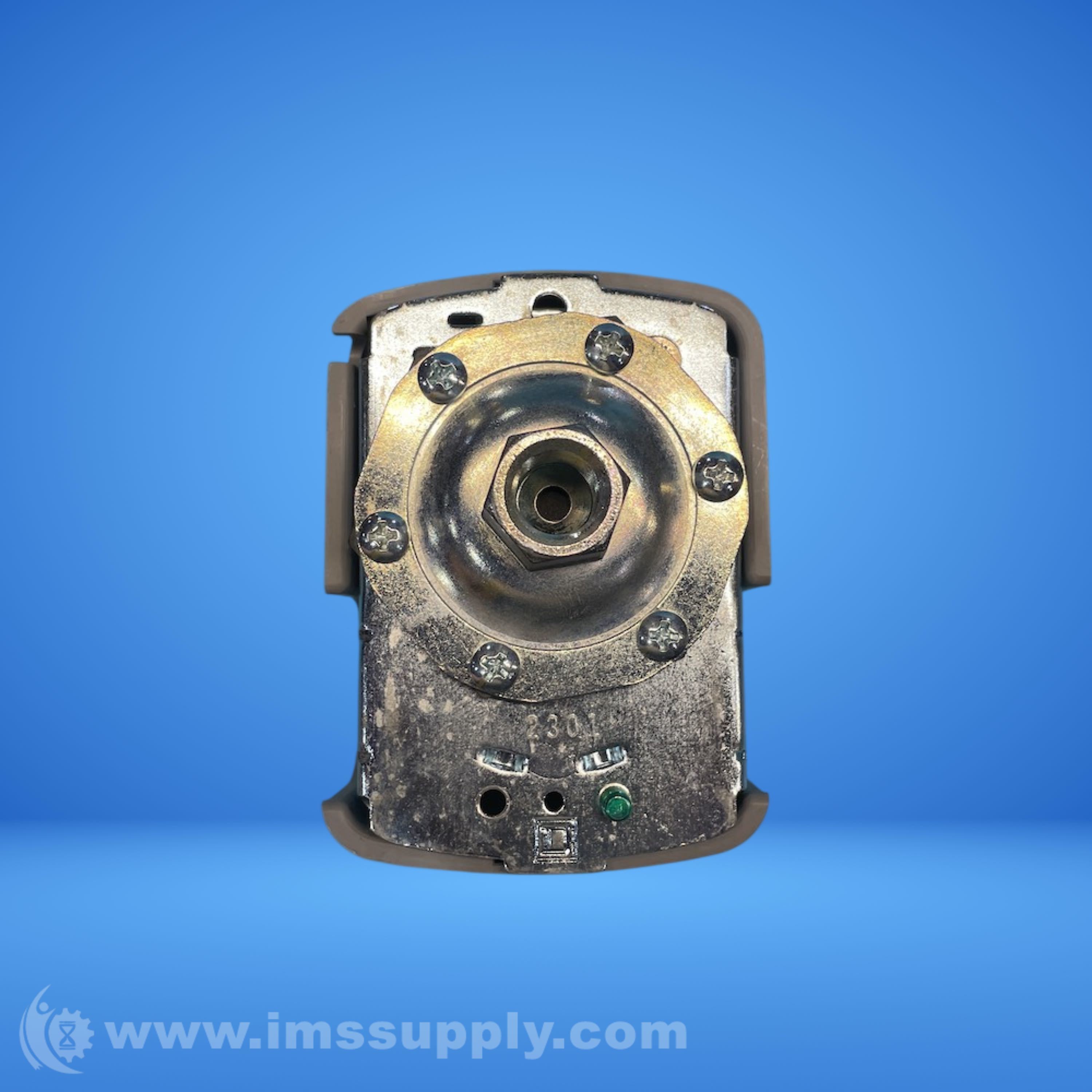

- Fluid Connection Type: 0.25 inch NPSF internal
- Materials in Contact with Fluid: Zinc plated steel or equivalent flange, nitrile (Buna-N) or equivalent rubber diaphragm
- Material: Polypropylene cover, Noryl thermoplastic resin or equivalent cover
- Operating Position: Any position
- Terminal Block Type: 4 terminals
- Operating Rate: 10 cycles per minute
- Repeat Accuracy: +/- 3%
- NEMA Degree of Protection: NEMA 1
- IP Degree of Protection: IP20
- Standards: CE, UL 508
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
