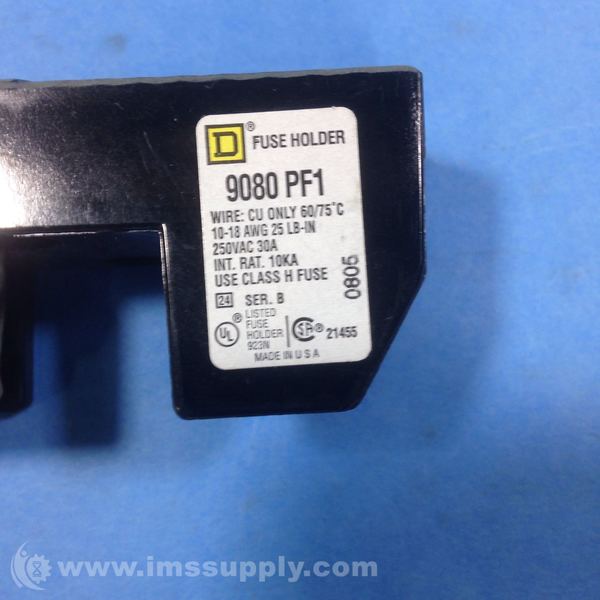

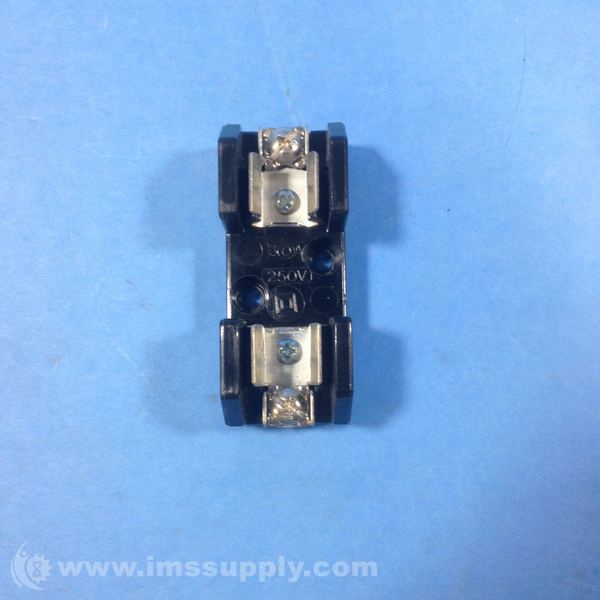

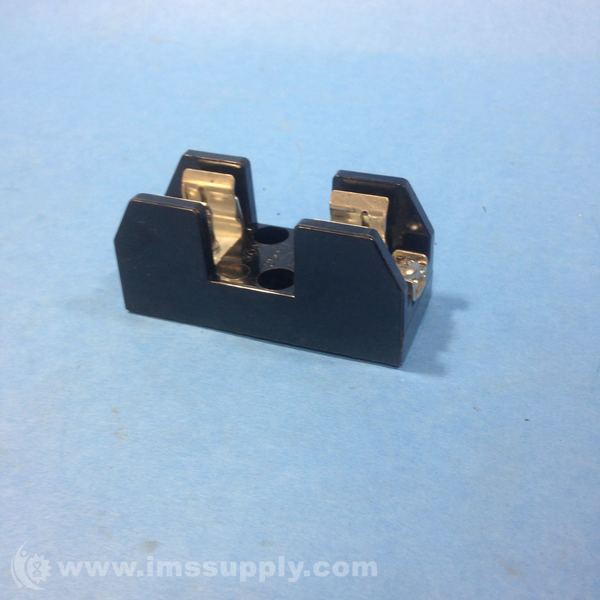

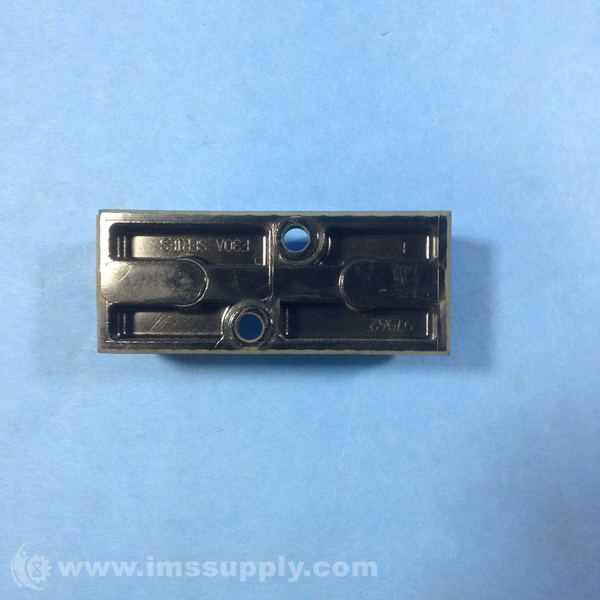

SQUARE D 9080PF1 FUSE HOLDER
Quick Overview
Manufactured By: SQUARE D
Manufacturer Part Number: 9080PF1
IMS Product Code: 1743715
Variation: Unspecified
Unspecified
Series: B
Packaging: Sold Individually
Description:
Square D 9080PF1 Fuse Holder
1 Pole 250V 30A Class H Fuse Holder
Specifications
- Wire Size: 18 to 10 AWG
- Fuse Type: Class H, Class K Fuse Type
- Fuse Current Rating: 30 Ampere
- Fuse Voltage Rating: 250 V
- Terminal Type: Pressure Wire Terminal Type
- Line Rated Current: 30 A
- System Voltage: <= 250 V AC/DC
- Fuse size: 0.5625 x 2 in
- Number of poles: 1
- Electrical connection: Pressure wire clamp
- Wire Gauge: AWG 18...AWG 10 copper or aluminium
- SCCR: 10 kA UL 512
- Operating Temperature: -40…257 °F (-40…125 °C)
- Mounting Type: Surface mount
- Block Material: Thermoplastic block
- wire stripping length: 0.4375 in (11.11 mm)
- Terminal Tightening Torque: screw terminals 25 lbf.in (2.82 N.m) AWG 14...AWG 10 copper
- Height: 3 in (76.20 mm)
- Width: 1.12 in (28.45 mm)
- Depth: 1.38 in (35.05 mm)
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 9 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
