SQUARE D D321N GENERAL DUTY SAFETY SWITCH
Quick Overview
Manufactured By: SQUARE D
Manufacturer Part Number: D321N
IMS Product Code: 2151401
Variation: Unspecified
Unspecified
Series: E3
Packaging: Sold Individually
Description:

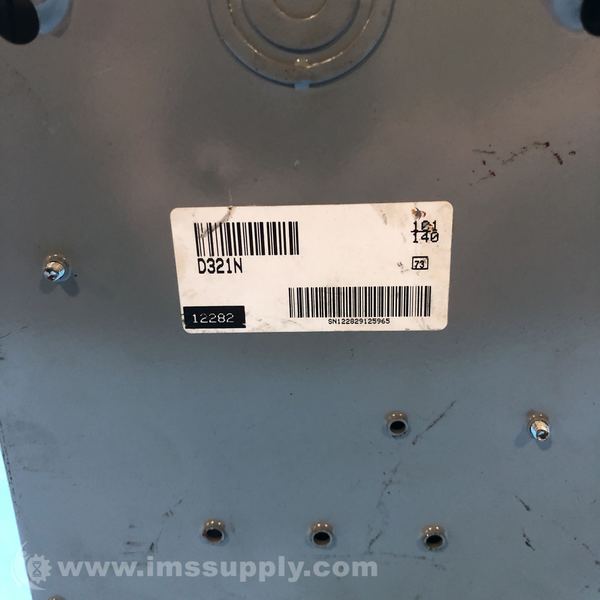

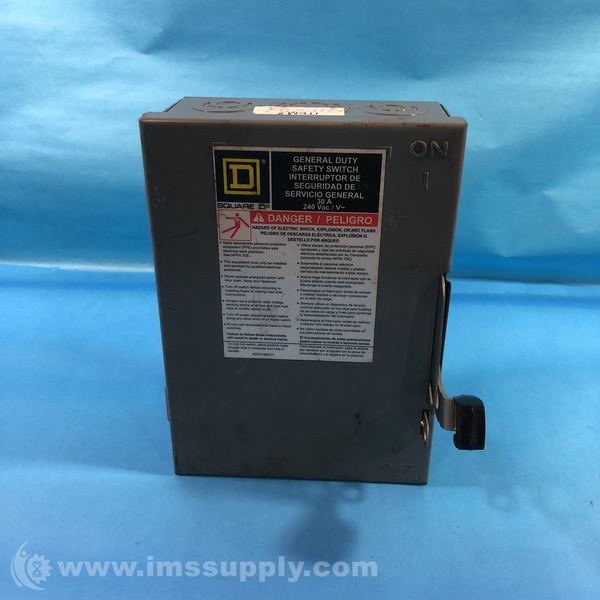

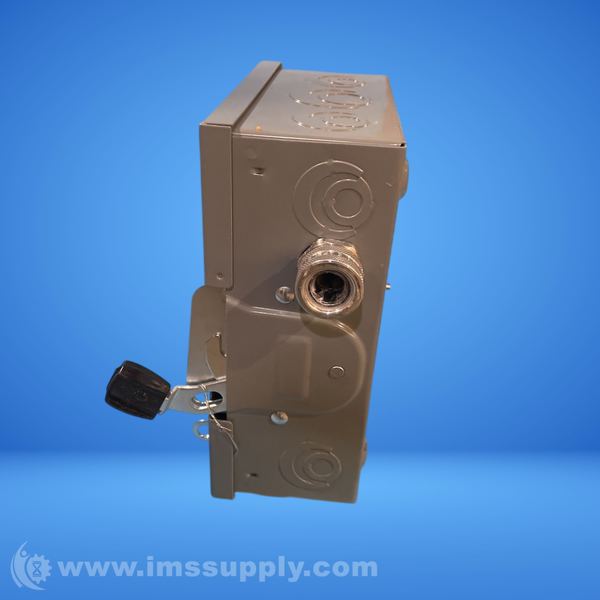

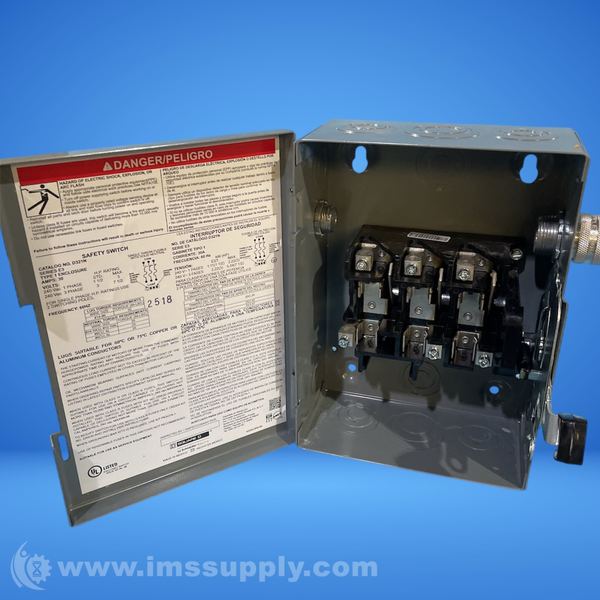

Square D D321N General Duty Safety Switch
Square D general duty safety switch with fusible disconnect, 30A, 240V AC, 3-pole, NEMA 1 enclosure, surface mount, lug terminals, steel construction.
Specifications
- Action: Single Throw
- Ampere Rating: 30A
- Approvals: UL Listed File: E2875
- Contact Form: 3PST
- Current Rating: 30 A
- Depth: 3.63 Inches
- Disconnect Type: Fusible
- Duty: General Duty
- Enclosure Rating: NEMA 1
- Enclosure Type: General Purpose (Indoor)
- Environment: Indoor
- Factory Installed Neutral: Yes
- Finish: Galvanized
- Frequency Rating: 50/60 Hz
- Fuse Type: Cartridge (Class H K or R)
- Height: 9.25 Inches
- Horsepower @ 240V AC: 3 hp
- Material: Steel
- Maximum Voltage Rating: 240VAC
- Mounting Type: Surface
- NEMA Enclosure Rating: 1
- Net Weight: 19.84 lb
- Number of Poles: 3
- Number of Wires: 3
- Phase: 3
- Protection Method: Fusible
- Series: E3
- Short Circuit Current Rating: 100kA
- Terminal Type: Lugs
- Tightening Torque: 30 lbf.in
- Type: Enclosed Fusible
- UL Fuse Class: H; K; R
- Voltage Rating: 240V AC
- Weight: 19.84 lbs
- Width: 6.75 Inches
- Wire Size: #14 to #8 AWG(Al/Cu)
- Wiring Configuration: 4 Wire(S)
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
