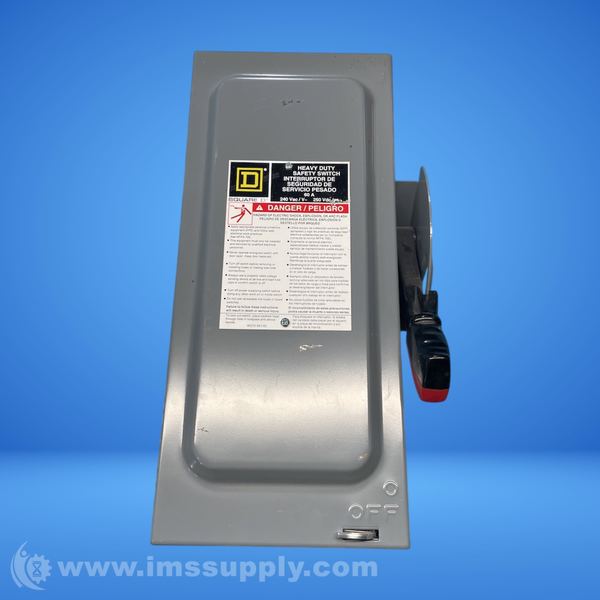

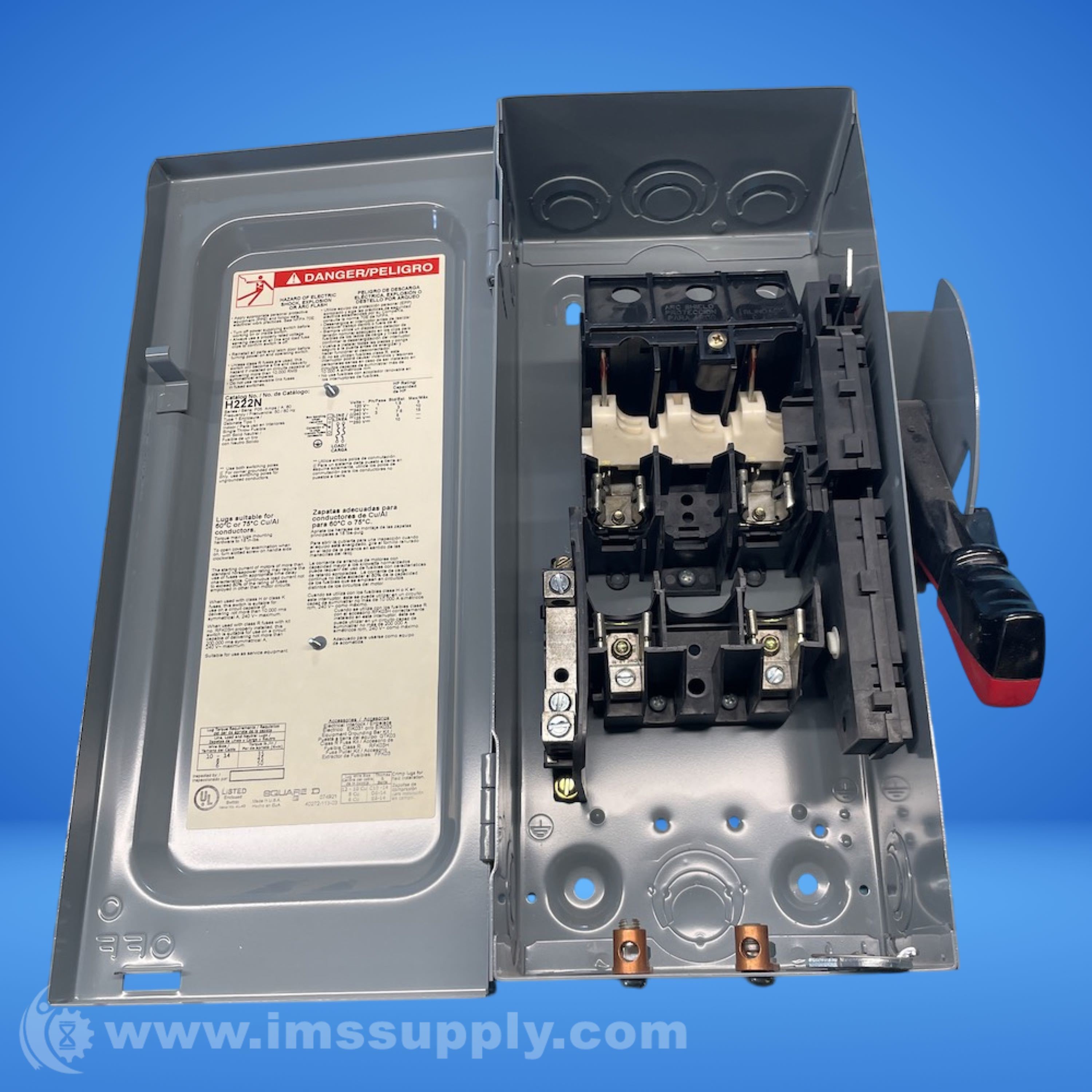

SQUARE D H222N HEAVY DUTY SAFETY SWITCH
Quick Overview
Manufactured By: SQUARE D
Manufacturer Part Number: H222N
IMS Product Code: 2140797
Packaging: Sold Individually
Description:
Square D H222N Heavy Duty Safety Switch
60 Amps, 240 Volts AC, 2 Pole, Heavy Duty, Fused, Nema 1 Enclosed, With Solid Neutral
Specifications
- Amps: 60
- Volts: 240
- Poles: 2
- Duty: Heavy Duty
- Enclosure: Nema 1 Enclosed
- Neutral: With Solid Neutral
- Rated Current: 60 A
- NEMA degree of protection: NEMA 1 steel
- Disconnector device type: Fusible disconnect
- Short-circuit current: 10 kA H or K 200 kA R, J or L
- Device mounting: Surface
- Electrical connection: Lugs
- System Voltage: 240 V AC 250 V DC
- Mounting Type: Surface
- Wire Size: #14 to #3 AWG(Al/Cu)
- Type of Duty: Heavy Duty
- Number of Poles: 2-Pole
- Maximum Voltage Rating: 240 Vac/250 Vdc
- Terminal Type: Lugs
- Action: Single Throw
- Ampere Rating: 60A
- Enclosure Material: Steel
- Enclosure Rating: NEMA 1
- Enclosure Type: General Purpose (Indoor)
- Factory Installed Neutral: Yes
- Disconnect Type: Fusible
- Short Circuit Current Rating: 10kA (Class H or K) - 200kA (Class R or J)
- Size: 7.55 Inch W X 4.88 Inch D X 14.6 Inch H
- Phase: 1 Ph
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
