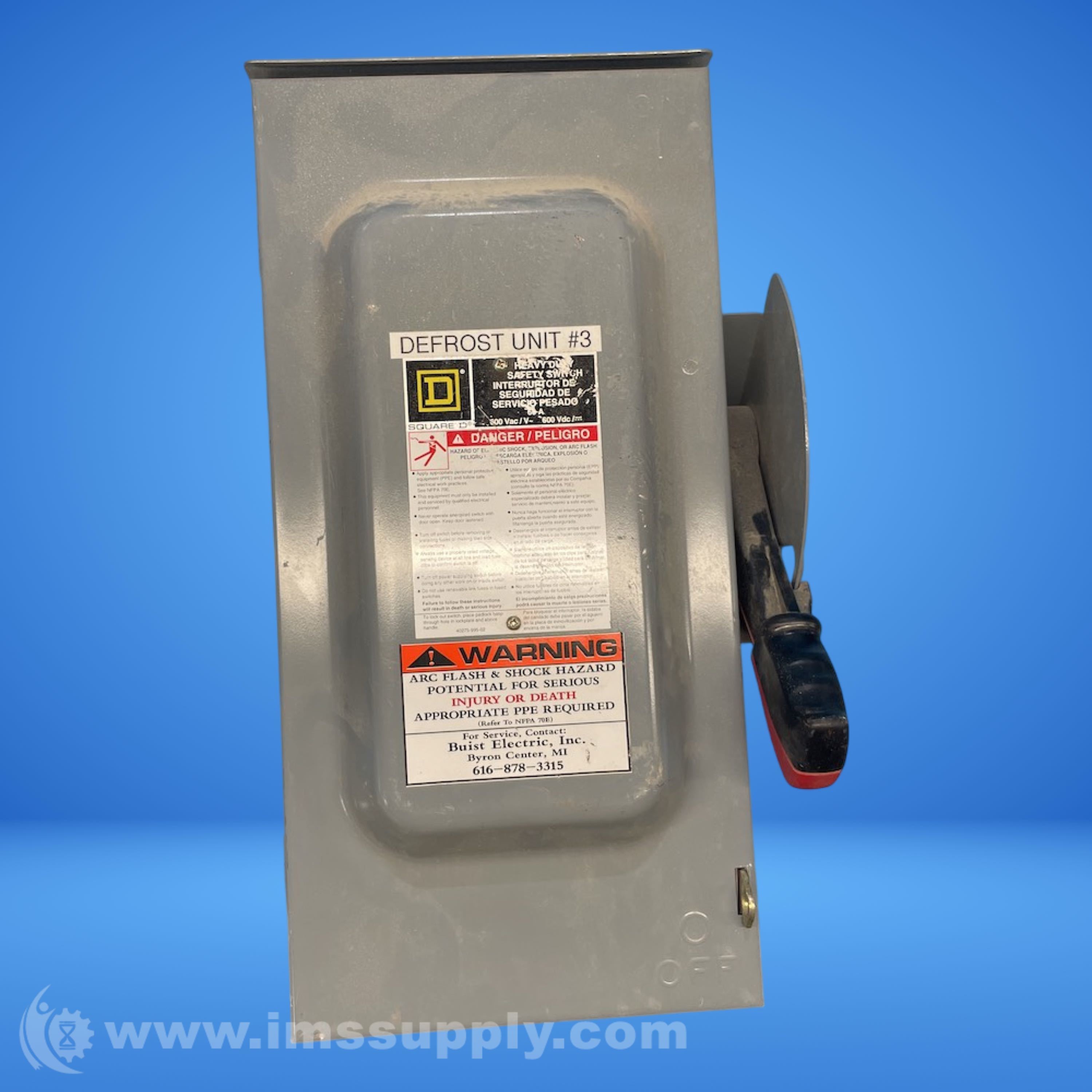

SQUARE D H362RB FUSIBLE SAFETY SWITCH
Quick Overview
Manufactured By: SQUARE D
Manufacturer Part Number: H362RB
IMS Product Code: 2143994
Packaging: Sold Individually
Description:
Square D H362RB Fusible Safety Switch
Heavy duty fusible safety switch with 60A rating and 600V maximum voltage. Surface-mounted with NEMA 3R enclosure rating.
Specifications
- Ampere Rating: 60A
- Maximum Voltage Rating: 600V
- Number of Poles: 3-Pole
- Enclosure Type: Rainproof and Sleet/Ice proof (Indoor/Outdoor)
- Enclosure Rating: NEMA 3R
- Enclosure Material: Galvannealed Steel
- Disconnect Type: Fusible
- Terminal Type: Lugs
- Wire Size: #14 to #3 AWG(Al/Cu)
- Short Circuit Current Rating: 10kA (Class H or K) - 200kA (Class R or J)
- Type of Duty: Heavy Duty
- Action: Single Throw
- Maximum DC Voltage: 600 VDC
- Maximum AC Voltage: 240 VAC
- Dimensions: 17.50 x 9.00 x 6.38 inches
- Weight: 16.00 lbs
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 45 minutes.
