SQUARE D HU365 HEAVY DUTY SAFETY SWITCH
Quick Overview
Manufactured By: SQUARE D
Manufacturer Part Number: HU365
IMS Product Code: 2153407
Packaging: Sold Individually
Description:

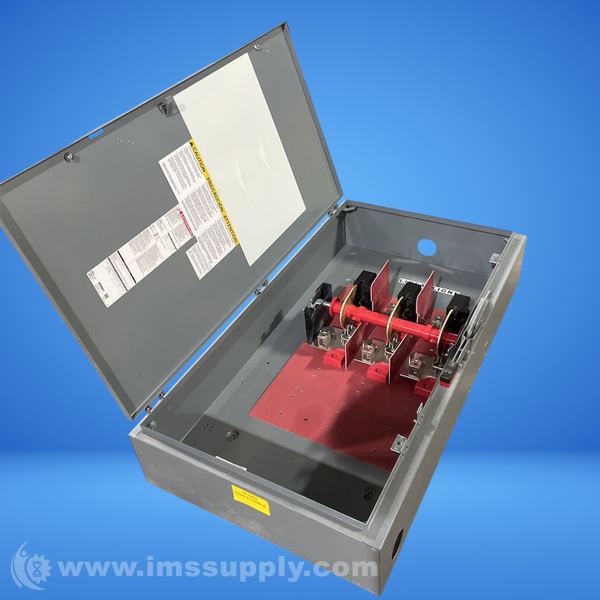

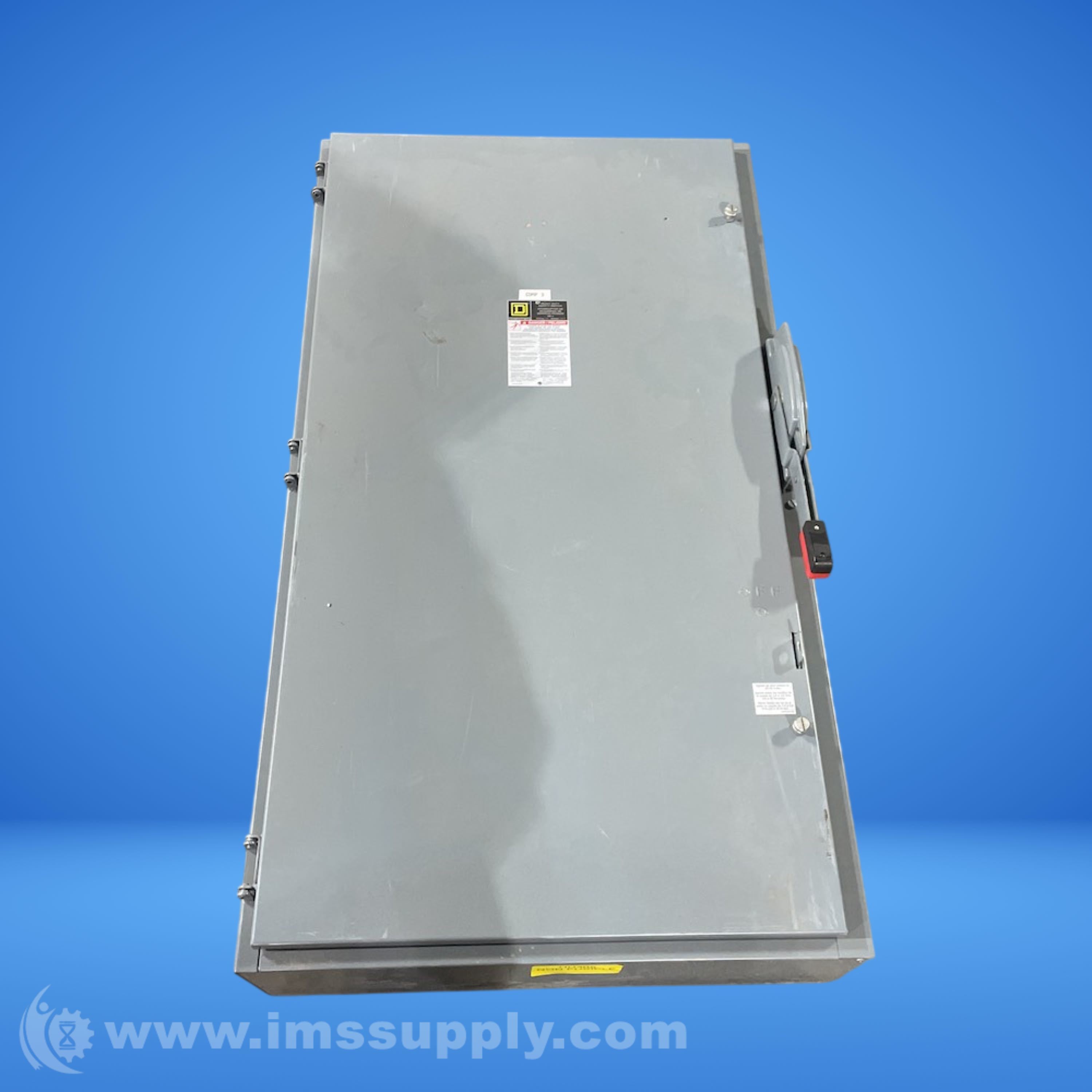

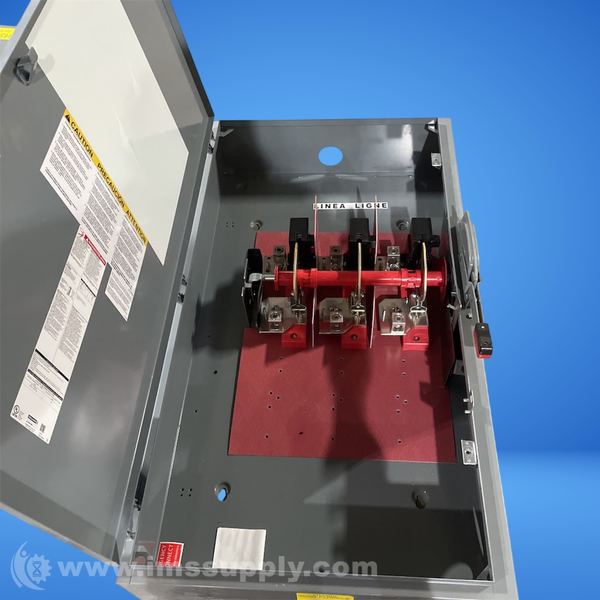

Square D HU365 Heavy Duty Safety Switch
Non-fusible heavy duty safety switch, 400A, 3-pole, 600V AC/DC, NEMA 1 enclosure
Specifications
- Type: Non-Fusible
- Current Rating: 400 Amp
- Voltage Rating: 600 Volt
- Number of Poles: 3-Pole
- Enclosure Type: NEMA 1
- Disconnect Type: Non-Fusible
- Mounting Type: Surface
- Electrical Connection: Lugs
- Wire Size: #1/0 to 750 AWG/kcmil(Al/Cu)
- Tightening Torque: 550 lbf.in (62.14 N.m)
- Dimensions (HxWxD): 50.25" x 27.63" x 10.13"
- Weight: 169.98 lbs
- Short Circuit Current Rating: 200kA@600V
- Enclosure Material: Steel
- UL Listed: File E2875
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
