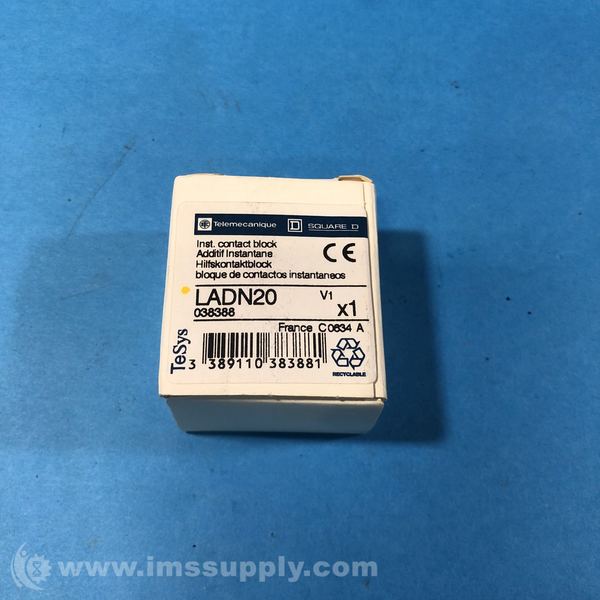

SQUARE D LADN20 AUXILIARY CONTACT BLOCK
Quick Overview
Manufactured By: SQUARE D
Manufacturer Part Number: LADN20
IMS Product Code: 1921502
Packaging: Sold Individually
Description:
Square D LADN20 Auxiliary Contact Block
Auxiliary contact block with 2 normally open contacts, 10A current rating, and 600/690VAC voltage rating. Front mounted with screw clamp terminals. For use with Schneider LC1F contactors.
Specifications
- Amperage: 10
- Approval: EN/IEC, UL, CSA, CB, CCC, EAC, UKCA, GB/T
- Contact Configuration: 2NO
- Height (in): 1.89
- Length (in): 1.65
- Mounting Type: Clip-On
- Number of Poles: 2
- Series: LADN
- Standards: RoHS, REACh
- Temperature Rating: -5 to 60 degrees C
- Terminal Connection: Screw Clamp
- Voltage: 600/690VAC
- Width (in): 1.02
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 7 hours and 51 minutes.
