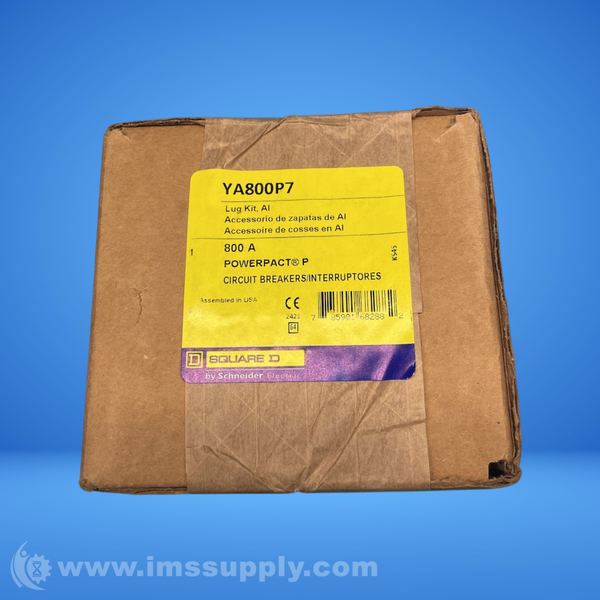

SQUARE D YA800P7 LUG KIT
Quick Overview
Manufactured By: SQUARE D
Manufacturer Part Number: YA800P7
IMS Product Code: 2145876
Packaging: Sold Individually
Description:
Square D YA800P7 Lug Kit
Compression lug kit for PowerPact M/P-frame circuit breakers, 800A, aluminum/copper, unit mount
Specifications
- Series: YA
- Amperage: 800
- Mounting Type: Unit mount, Compression
- Approval: UL, CSA
- Frame Type: MDL, MDM, MDP, MGL, MGM, MGP, MJL, MJM, MJP, MLL, MLM, MLP, PGL, PGM, PGP, PGD, PKL, PKM, PKP, PKD, PLL, PLM, PLP, PLD
- Length (in): 6.4
- Width (in): 4.7
- Height (in): 4.7
- Wire Gauge: 500, 750 kcmil aluminum/copper
- For Use With: Powerpact MDL, MDM, MDP, MGL, MGM, MGP, MJL, MJM, MJP, MLL, MLM, MLP, PGL, PGM, PGP, PGD, PKL, PKM, PKP, PKD, PLL, PLM, PLP, PLD M-,P-Frame molded case circuit breakers
- Body Material: Aluminium
- Type: Aluminum
- Weight: 2.03
- Width: 5.0000
- Tightening Torque: 28-28 N.m 240-400 mm (500...750 kcmil)
- Line Rated Current: 800-800 A
- Country of Origin: United States
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 4 hours and 47 minutes.
