SUMITOMO 19PWBPD, CCMT21.52 ESU GRADE AC630M CARBIDE TURNING
Quick Overview
Manufactured By: SUMITOMO
Manufacturer Part Number: 19PWBPD
IMS Product Code: 1791450
Packaging: Sold Individually
Description:

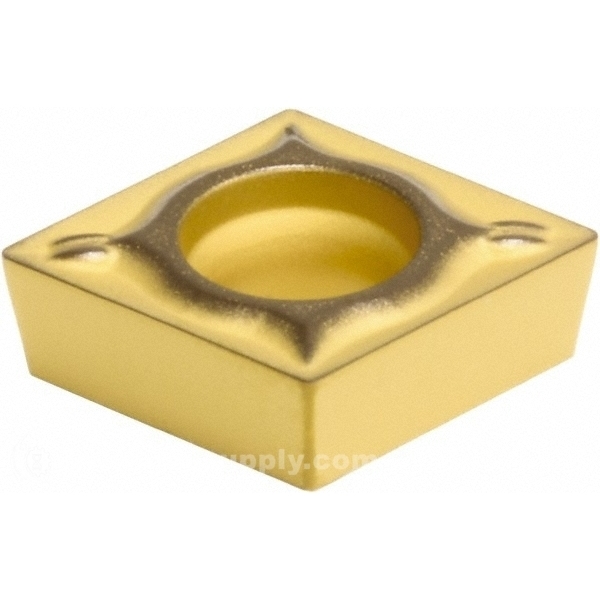

Sumitomo 19PWBPD, CCMT21.52 ESU Grade AC630M Carbide Turning Insert
Specifications:
| Insert Style | CCMT |
| Insert Size | 21.52 |
| Material | Carbide |
| Inscribed Circle | 6.35 |
| Inscribed Circle | 0.2500 |
| Inscribed Circle | 1/4 |
| Thickness | 3/32 |
| Thickness | 0.0938 |
| Corner Radius | 1/32 |
| Corner Radius | 0.0313 |
| Manufacturer's Grade | AC630M |
| Coating | Al2O3 |
| Material Grade | C5/C5A/C6/C7 |
| Chip breaker | ESU |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Rake | Positive |
| Rake Angle | 8 |
| Relief Angle | 7 |
| Coating Process | CVD |
| Included Angle | 80 |
| Insert Holding Method | Screw |
| Shape | Diamond |
