SUMITOMO 19RBW24, CCMT32.52 ENK GRADE AC830P CARBIDE TURNING
Quick Overview
Manufactured By: SUMITOMO
Manufacturer Part Number: 19RBW24
IMS Product Code: 1791392
Packaging: Sold Individually
Description:

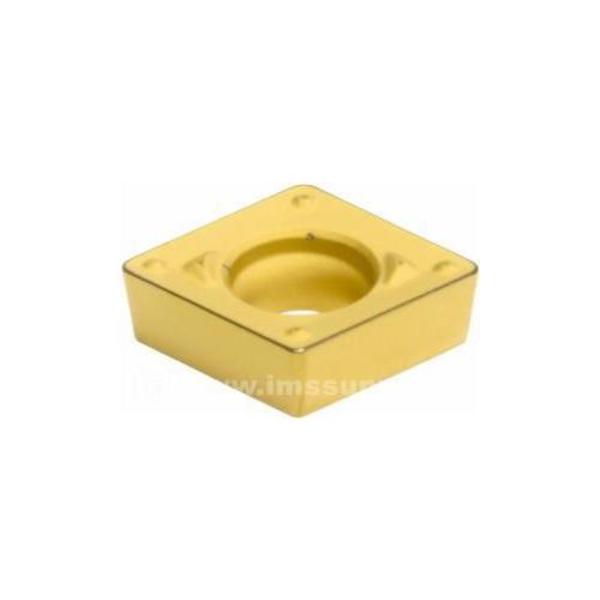

Sumitomo 19RBW24, CCMT32.52 ENK Grade AC830P Carbide Turning Insert Al2O3 Finish, 80° Diamond, 3/8" Inscr Circle, 5/32" Thick, 1/32" Corner Radius
Specifications:
- Insert Style: CCMT
- Insert Size: 32.52
- Material: Carbide
- Inscribed Circle (Decimal Inch): 0.3750
- Inscribed Circle (Inch): 3/8
- Thickness (Inch): 5/32
- Thickness (Decimal Inch): 0.1563
- Corner Radius (Inch): 1/32
- Corner Radius (Decimal Inch): 0.0313
- Manufacturer's Grade: AC830P
- Coating: Al2O3
- Chip breaker: ENK
- Hole Diameter (Decimal Inch): 0.1732
- Rake: Positive
- Rake Angle: 8
- Relief Angle: 7
- Included Angle: 80
- Insert Holding Method: Screw
- Shape: Diamond
