SUMITOMO 19RJ296 INSERT CARBIDE COATED VNMG331ENG-AC820P
Quick Overview
Manufactured By: SUMITOMO
Manufacturer Part Number: 19RJ296
IMS Product Code: 1791012
Packaging: Sold Individually
Description:

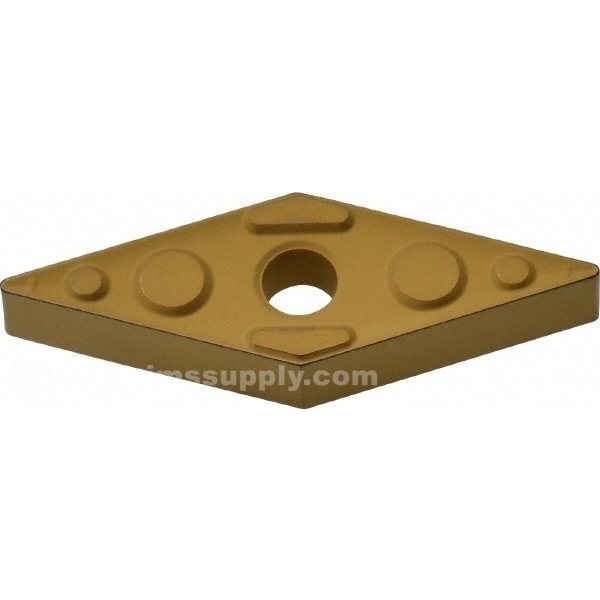

Sumitomo 19RJ296, VNMG331 ENG Grade AC820P Carbide Turning Insert
35° Diamond, 3/8" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Specifications:
| Insert Style | VNMG |
| Insert Size | 331 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | AC820P |
| Material Grade | C5A/C6/C7/C8 |
| Chip breaker | ENG |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Relief Angle | 0 |
| Primary Workpiece Material | P; M |
| Included Angle | 35 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
