SUMITOMO 19RJ339, DNMG432 EGU GRADE AC820P CARBIDE TURNING INSERT
Quick Overview
Manufactured By: SUMITOMO
Manufacturer Part Number: 19RJ339
IMS Product Code: 1791022
Packaging: Sold Individually
Description:

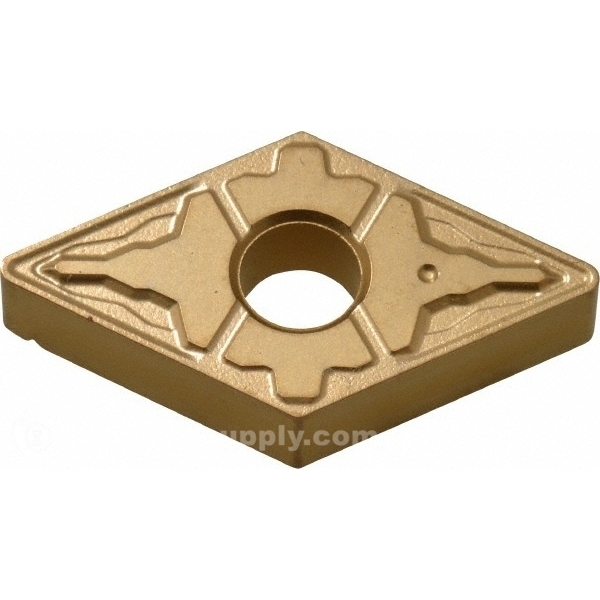

Sumitomo 19RJ339, DNMG432 EGU Grade AC820P Carbide Turning Insert
Al2O3 Finish, 55° Diamond, 1/2" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Specifications:
| Insert Style | DNMG |
| Insert Size | 432 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | AC820P |
| Coating | Al2O3 |
| Chip breaker | EGU |
| Hole Diameter (Decimal Inch) | 0.2031 |
| Rake | Negative |
| Rake Angle | 7 |
| Relief Angle | 0 |
| Included Angle | 55 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
