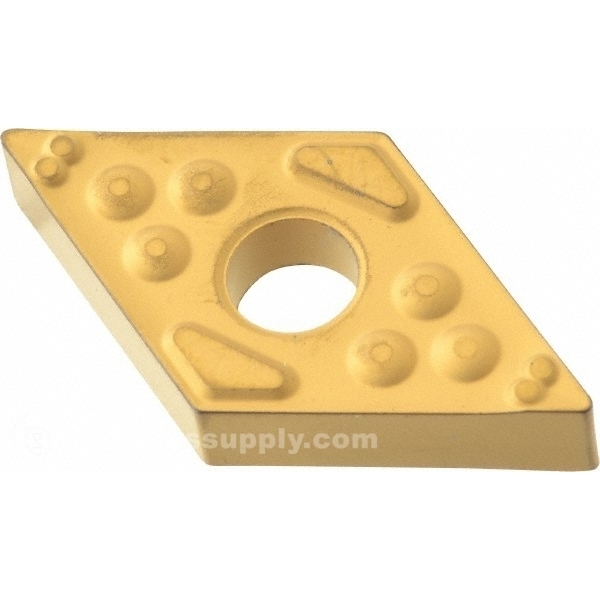

SUMITOMO 19RJ893, DNMG431 ENG GRADE AC820P CARBIDE TURNING INSERT
Quick Overview
Brand: SUMITOMO
Part Number: 19RJ893
IMS Product Code: 1791021
Packaging: Sold Individually
Description:
Sumitomo 19RJ893, DNMG431 ENG Grade AC820P Carbide Turning Insert
55° Diamond, 1/2" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Specifications:
| Insert Style | DNMG |
| Insert Size | 431 |
| Material | Carbide |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | AC820P |
| Material Grade | C5A/C6/C7/C8 |
| Chip breaker | ENG |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Relief Angle | 0 |
| Primary Workpiece Material | P; M |
| Included Angle | 55 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
