SUMITOMO 939 HEAT SHRINK TUBING
Quick Overview
Brand: SUMITOMO
Part Number: 939
IMS Product Code: 2091888
Packaging: Sold Individually
Description:

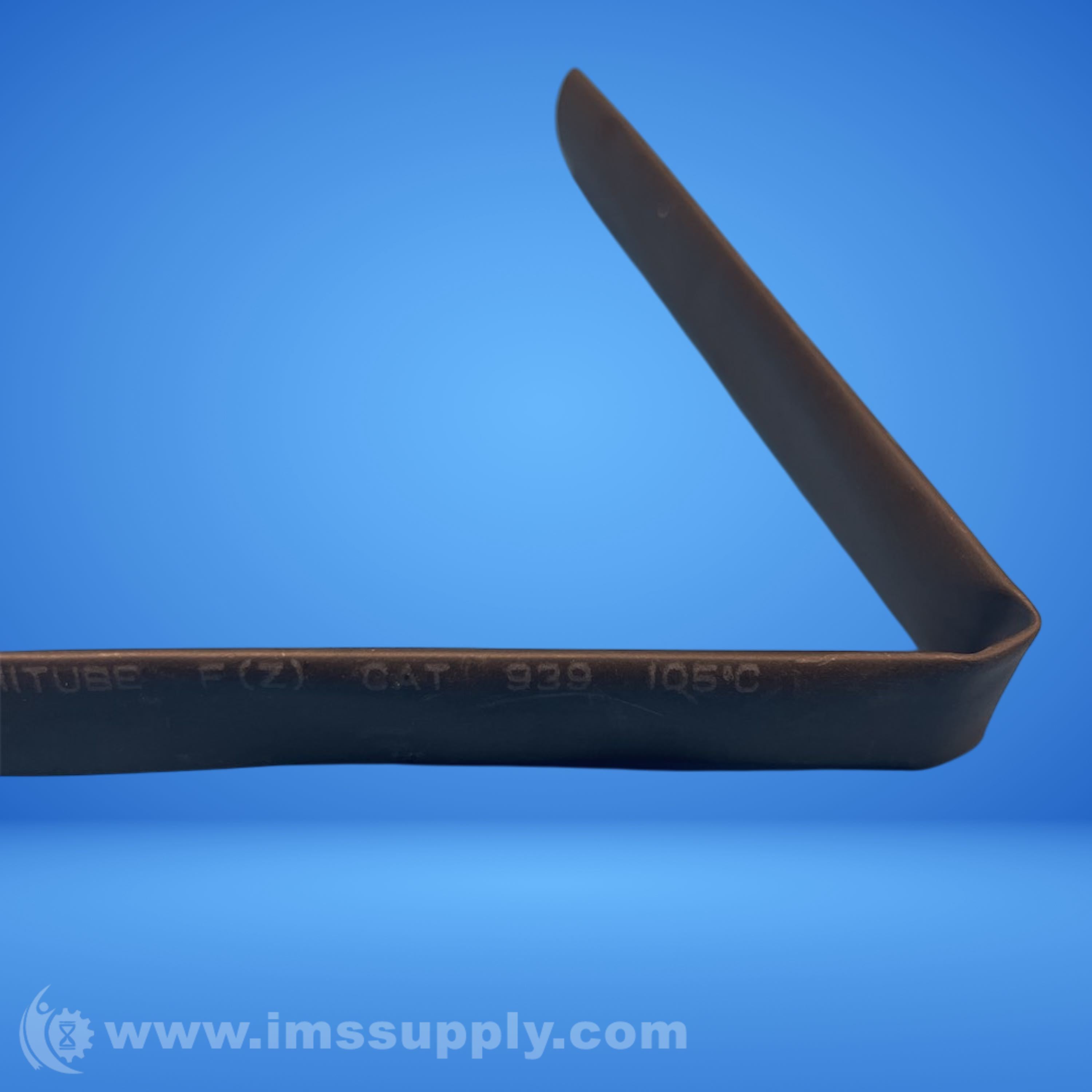

Sumitomo 939 Heat Shrink Tubing
Flexible, flame-retarded heat-shrinkable tubing made of irradiated cross-linked polyolefin, rated for 105? continuous operation.
Specifications
- Material: Irradiated cross-linked flexible flame-retarded polyolefin
- Flammability: Flame Retarded
- Shrink Temperature: min. 90?
- Shrink Ratio: min. 50%
- Longitudinal Change: min. -15%
- Continuous Operating Temperature: -55 to 105?
- Flexibility: Flexible
- Tensile Strength (before aging): min. 10.4MPa
- Tensile Strength (after aging): min. 7.3MPa at 136? x 7 days
- Elongation (before aging): min. 200%
- Elongation (after aging): min. 100% at 136? x 7 days
- Dielectric Withstand (before aging): AC2.5kV x 60 sec., no breakdown
- Dielectric Withstand (after aging): AC2.5kV x 60 sec., no breakdown at 136? x 7 days
- Volume Resistivity: min. 1.0 x 10^14 O�cm
