SUMITOMO TC-F/FB-5B 3 PHASE INDUCTION MOTOR
Quick Overview
Brand: SUMITOMO
Part Number: TC-F/FB-5B
IMS Product Code: 2150362
Packaging: Sold Individually
Description:
Sumitomo TC-F/FB-5B 3 Phase Induction Motor

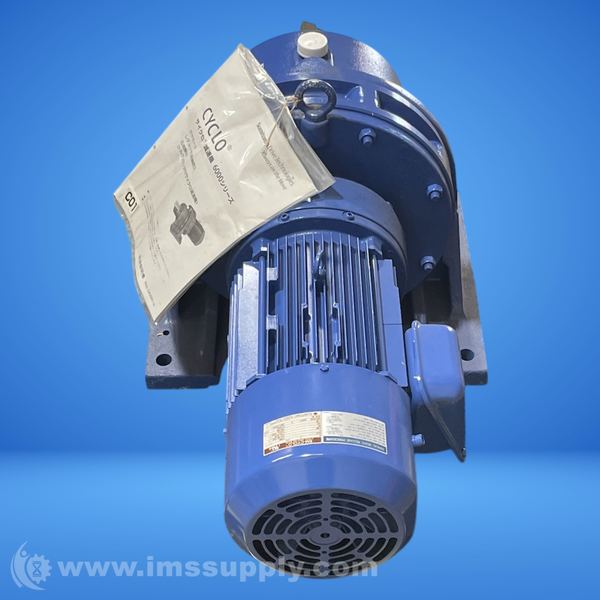

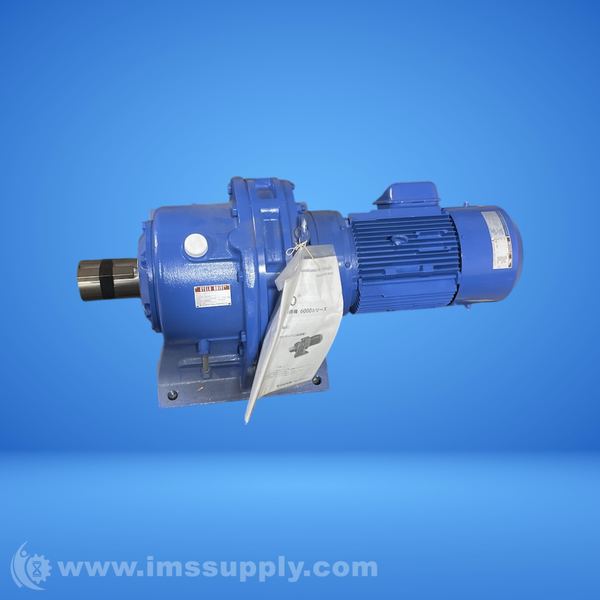

3 Phase Induction Motor with Cyclo Drive gearbox

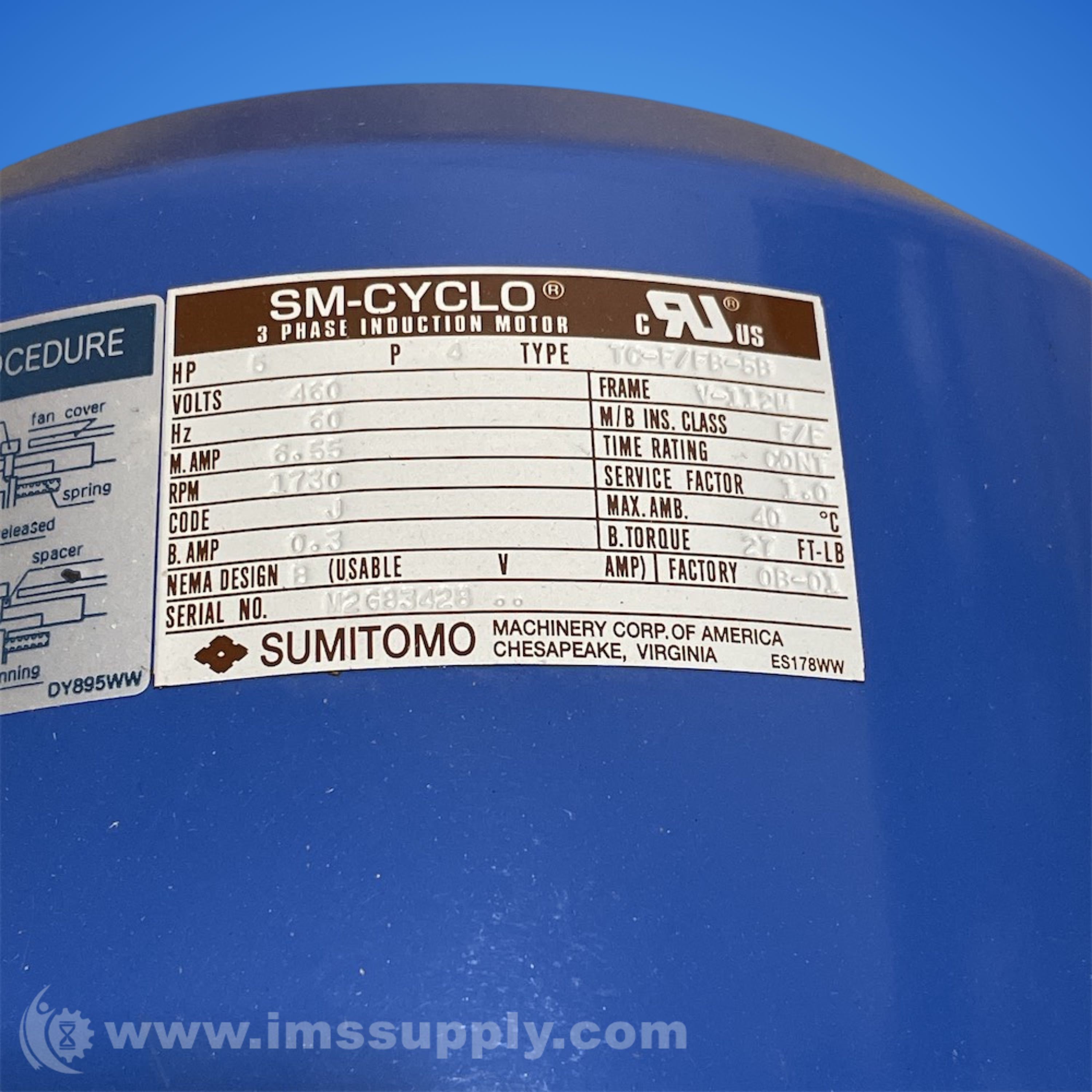

Specifications
- Brand: Sumitomo
- Model: TC-F/FB-5B
- MPN: TC-F/FB-5B
- Model Line: CYCLO 6000
- Output RPM: 12.2 RPM
- Phase: 3PH
- Power: 5 HP
- Shaft OD: 2-3/4 IN
- Voltage (AC): 230 V-AC, 460 V-AC
- Hz: 60
- M.AMP: 6.55
- B.AMP: 0.3
- RPM: 1730
- Frame: V5012H
- M/B Ins. Class: F
- Time Rating: CONT
- Service Factor: 1.0
- Max. Amb.: 40 deg C
- B.Torque: 27 FT-LB
- NEMA Design: B
New (Special):

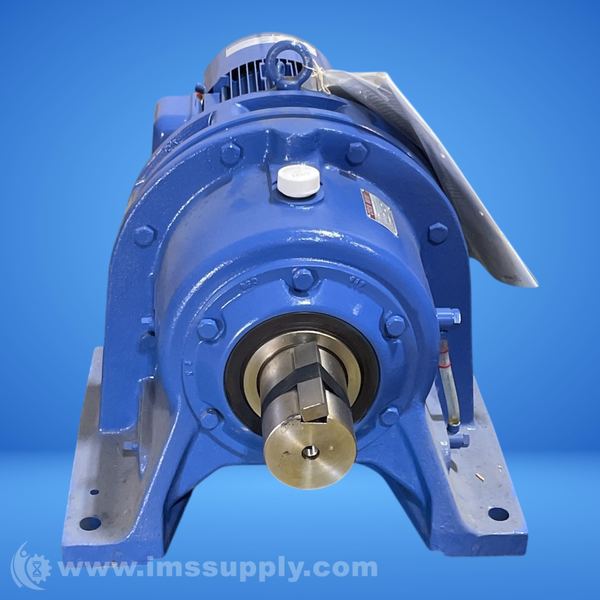

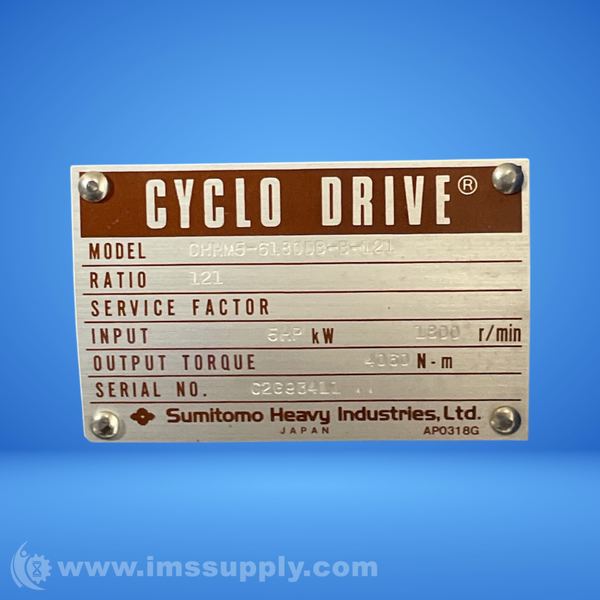

Part comes with Sumitomo Cyclo drive attached part number CHHM5-6130DB-B-121
Availability: 1 In Stock
Ships today if ordered in the next 10 hours and 50 minutes.
