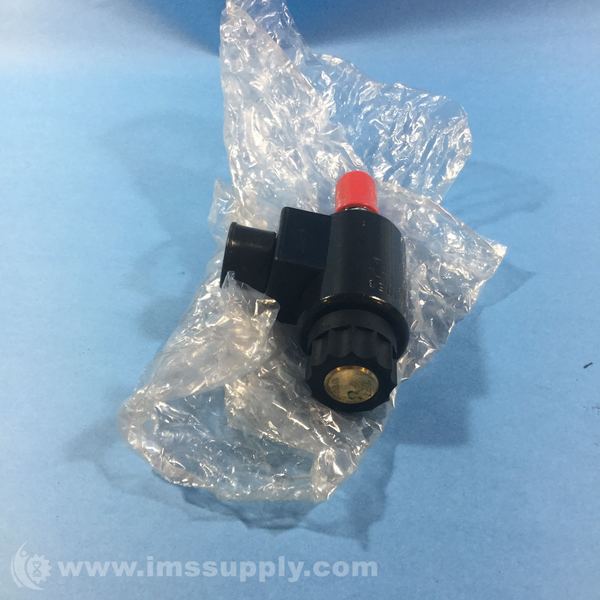

SUN HYDRAULICS RBAPMWN224 RELIEF VALVE, ELECTRO-PROPORTIONAL
Quick Overview
Manufactured By: SUN HYDRAULICS
Manufacturer Part Number: RBAPMWN224
IMS Product Code: 1812009
Packaging: Sold Individually
Description:
Sun Hydraulics RBAPMWN224 Relief Valve, Electro-Proportional
Specifications:
- Cavity: T-8A
- Capacity: .25 gpm, 1 L/min
- Maximum Operating Pressure: 5000 psi, 350 bar
- Maximum Valve Leakage at Reseat: 1.5 in³/min, 25 cc/min
- Manual Override Force Requirement: 10 lbs/1000 psi @ Port 166 N/100 bar @ Port 1
- Reseat: >85% of setting>85% of setting
- Solenoid Tube Diameter: .75 in, 19 mm
- Valve Hex Size: 7/8 in, 22.2 mm
- Valve Installation Torque: 20 - 25 lbf ft, 27 - 33 Nm
- Model Weight (with coil): 1.00 lb, 0.45 kg
