SUN HYDRAULICS RPECLAN PILOT-OPERATED RELIEF VALVE
Quick Overview
Manufactured By: SUN HYDRAULICS
Manufacturer Part Number: RPECLAN
IMS Product Code: 1871679
Packaging: Sold Individually
Description:

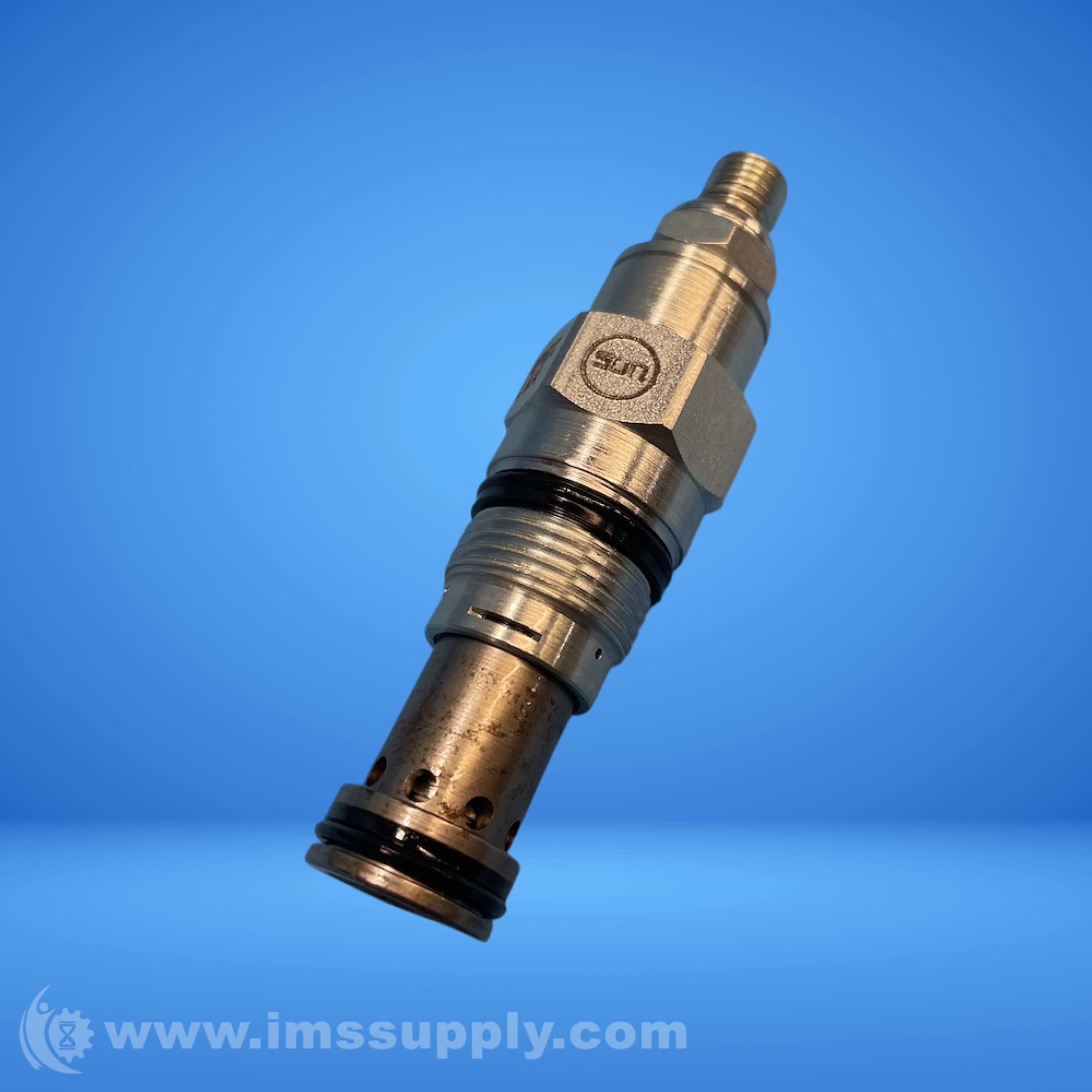

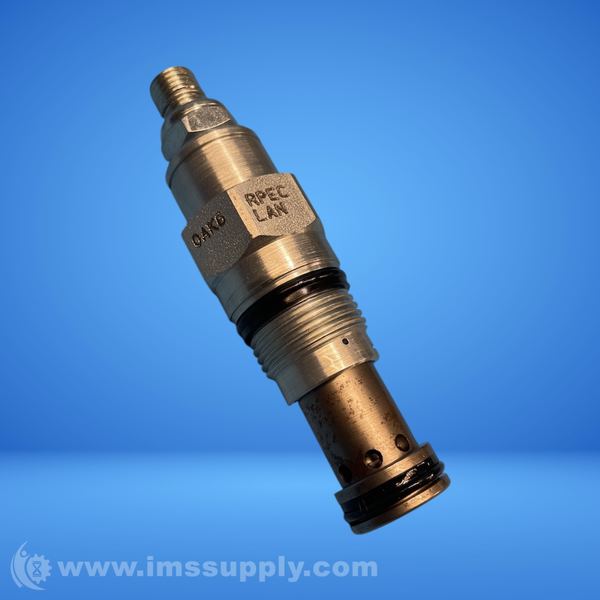

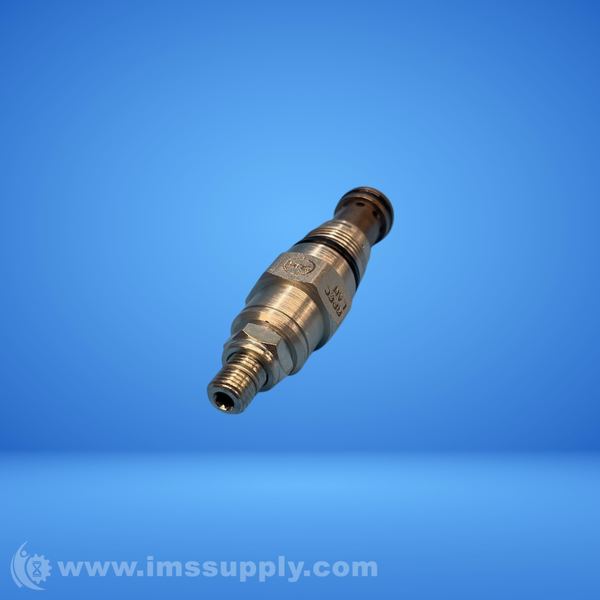

Sun Hydraulics RPECLAN Pilot-Operated Relief Valve
Pilot-operated, balanced-piston relief cartridges are normally closed pressure regulating valves. When the pressure at the inlet (port 1) reaches the valve setting, the valve starts to open to tank (port 2), throttling flow to regulate the pressure.
Specifications
- Cavity: T-10A
- Series: 1
- Capacity: 25 gpm/95 L/min.
- Maximum Operating Pressure: 5000 psi/350 bar
- Factory Pressure Settings Established at: 4 gpm/15 L/min.
- Maximum Valve Leakage at 110 SUS (24 cSt): 2 in³/min.@1000 psi/30 cc/min.@70 bar
- Response Time - Typical: 10 ms
- Adjustment - No. of CW Turns from Min. to Max. setting: 5
- Valve Hex Size: 7/8 in./22.2 mm
- Valve Installation Torque: 30 - 35 lbf ft/41 - 47 Nm
- Adjustment Screw Internal Hex Size: 5/32 in./4 mm
- Locknut Hex Size: 9/16 in./15 mm
- Locknut Torque: 80 - 90 lbf in./9 - 10 Nm
- Model Weight: 0.30 lb/0.15 kg

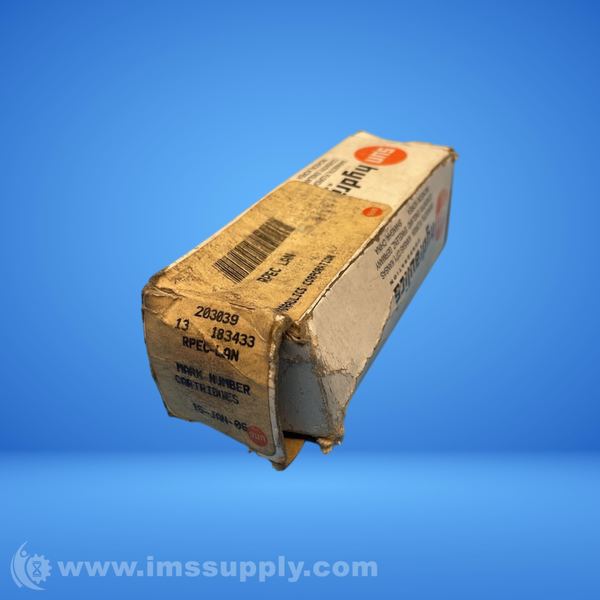

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
