SUNMULON XHL-0 PUSHBUTTON SWITCH
Quick Overview
Manufactured By: SUNMULON
Manufacturer Part Number: XHL-0
IMS Product Code: 2135892
Packaging: Sold Individually
Description:

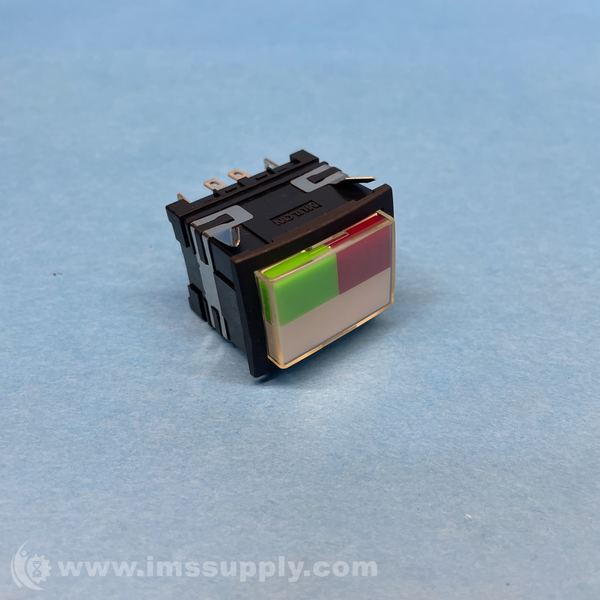

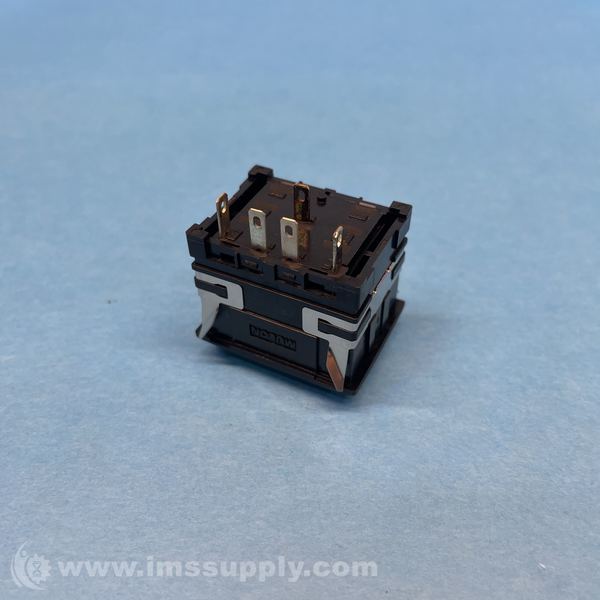

Sunmulon XHL-0 Pushbutton Switch
Pushbutton switch with various illumination options
Specifications
- Brand: Sunmulon
- Model: XHL-0
- Contact Resistance: Less than 30m (Initial) at DC6V 1A
- Insulation Resistance: More than 100M at 500V DC
- Dielectric Strength: 1000V AC RMS between NC and NO terminal, 2000V AC RMS between terminals and ground
- Mechanical Life: more than 1,000,000 operations (Momentary Action)
- Electrical Life: more than 100,000 operations at max. rated load
- Ambient Temperature: 15C to 50C
- Ambient Humidity: 80% RH (max.)
- Operating Force (max.): 4.9N
- Total Travel (max.): 3.5mm
- Depth behind panel: 22.5mm
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 10 hours and 2 minutes.
