SUNX SF4B-H36-D SAFETY LIGHT CURTAIN
Quick Overview
Manufactured By: SUNX LTD
Manufacturer Part Number: SF4B-H36-D
IMS Product Code: 1757133
Packaging: Sold Individually
Description:

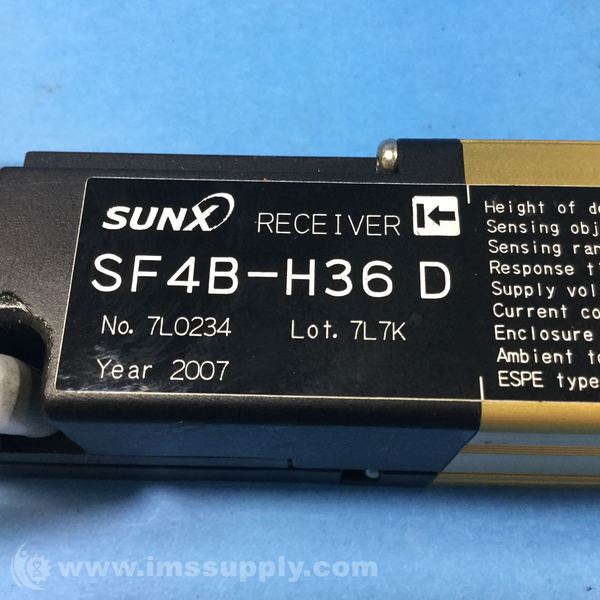

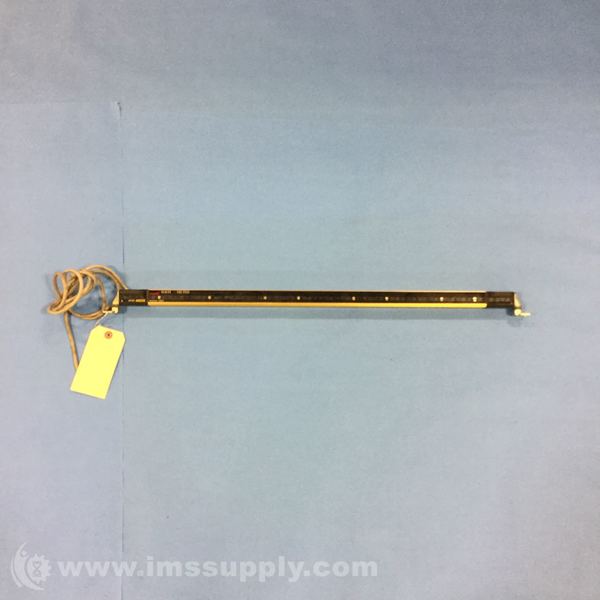

Sunx SF4B-H36-D Safety Light Curtain
Type 4 safety light curtain for hand protection with 36 beam channels and 710 mm protective height
Specifications
- Series: SF4B
- Type: Hand Protection
- Number of Beam Channels: 36
- Beam Pitch: 20 mm
- Protective Height: 710 mm
- Supply Voltage: 24 V dc
- Output Type: NPN, PNP
- Operating Range: 0.3 to 9 m
- Response Time: 14 ms (OFF), 80 to 90 ms (ON)
- IP Rating: IP65, IP67
- Operating Temperature Range: -10 to 55 degrees C
- Material: Aluminium (Enclosure), Iron (Upper and Lower Edges), Polycarbonate and Polyester Resin (Sensing Surface), PBT (Cap)
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
