SUNX GX-18MU CYLINDRICAL PROXIMITY SENSOR
Quick Overview
Manufactured By: SUNX
Manufacturer Part Number: GX-18MU
IMS Product Code: 1922099
Packaging: Sold Individually
Description:

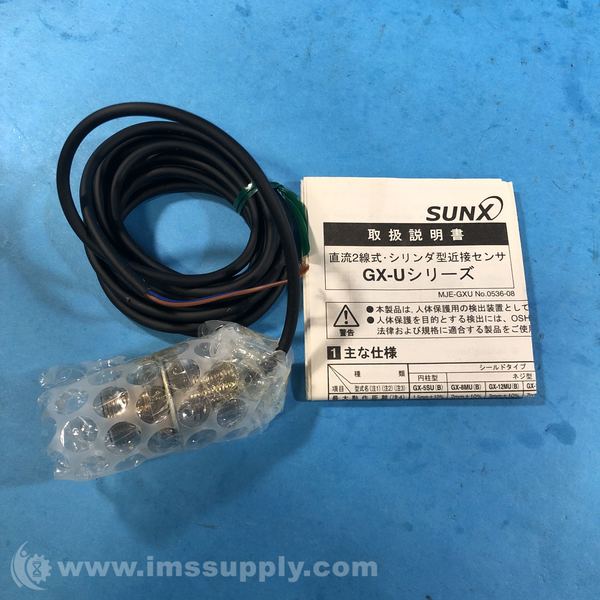

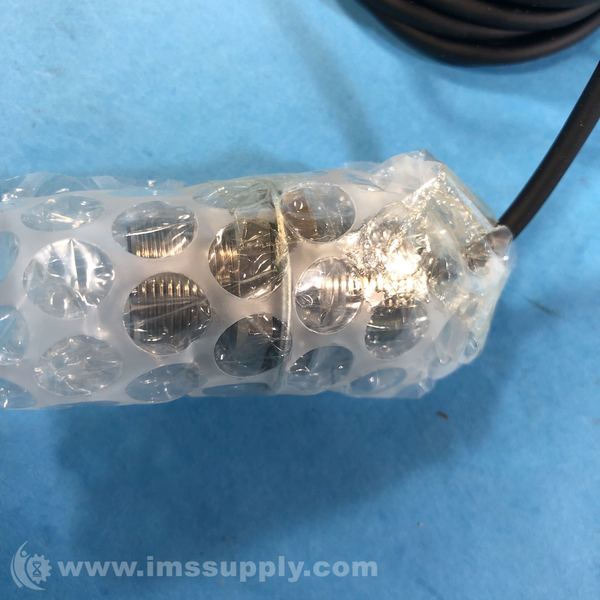

SUNX GX-18MU Cylindrical Proximity Sensor
DC 3-wire Cylindrical Inductive Proximity Sensor
Specifications
- Max. operation distance: 7 mm 0.276 in plus or minus 10 %
- Stable sensing range: 0 to 5.6 mm 0 to 0.220 in
- Standard sensing object: Iron sheet 18 × 18 × t 1 mm 0.709 × 0.709 × t 0.039 in
- Hysteresis: 20 % or less of operation distance (with standard sensing object)
- Supply voltage: 12 to 24 V DC +10 /-15 % Ripple P-P 10 % or less
- Current consumption: 0.8 mA or less
- Output: Non-contact DC 2-wire type
- Load current: 3 to 70 mA
- Residual voltage: 3 V or less
- Output:Short-circuit protection: Incorporated
- Max. response frequency: 500 Hz
- Operation indicator: Normally closed type: Orange LED (lights up when the output is ON)
- 2-color indicator: Lights up in green under stable sensing condition lights up in orange under unstable sensing condition
- Protection: IP67 (IEC), IP67g (JEM)
- Ambient temperature: -25 to +70 ? -13 to +158?, Storage: -30 to +80 ? -22 to +176?
- Ambient humidity: 45 to 85 % RH, Storage: 35 to 95 % RH
- Voltage withstandability: 1,000 V AC for one min.
- Insulation resistance: 50 MO, or more, with 250 V DC megger
- Vibration resistance: 10 to 55 Hz frequency, 1.5 mm 0.059 in double amplitude in X, Y and Z directions for two hours each
- Shock resistance: 1,000 m/s2 acceleration (100 G approx.) in X, Y and Z directions three times each
- Sensing range variation:Temperature characteristics: Over ambient temperature range -25 to +70 ? -13 to +158?: within plus or minus10 % of sensing range at +20 ? +68?
- Sensing range variation:Voltage characteristics: Within plus or minus2 % for plus or minus10 % fluctuation of the supply voltage
- Material: Enclosure: Brass (Nickel plated) Sensing part: Nylon Indicator part: Nylon
- Cable: 0.3 mm2 2-core oil, heat and cold resistant cabtyre cable, 2 m 6.562 ft long
- Cable extension: Extension up to total 50 m 164.042 ft is possible with 0.3 mm2, or more, cable.
- Weight: Net weight:95 g approx.
- Accessories: Nut: 2 pcs., Toothed lock washer: 1 pc.
- Country of Origin: Japan

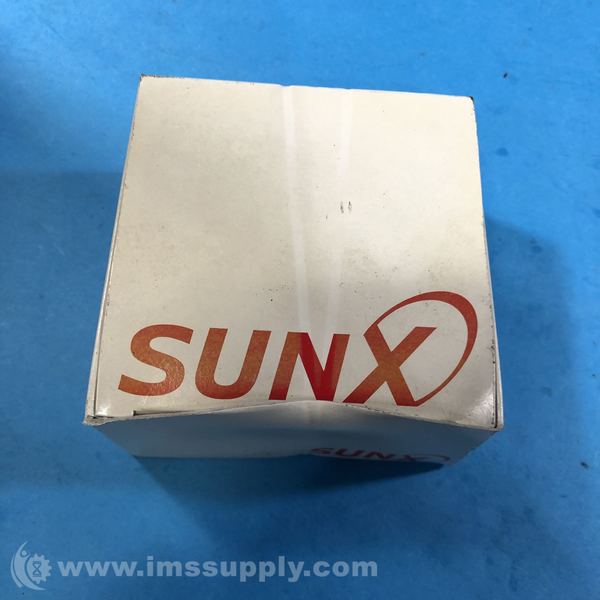

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships Tomorrow
