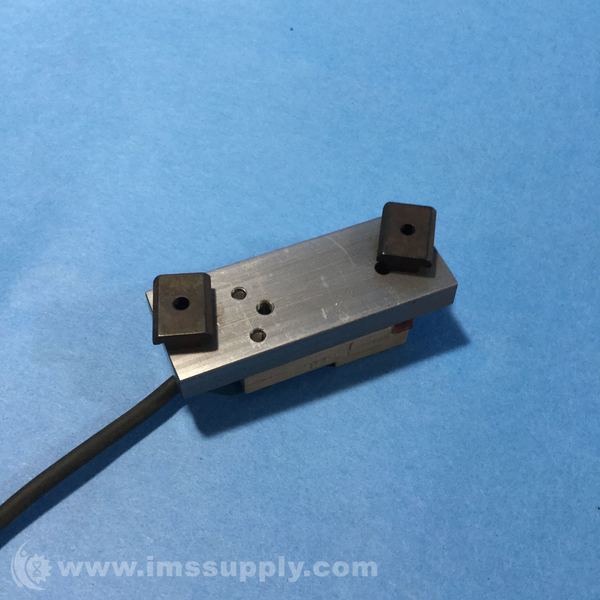

SUNX GXL-15F INDUCTIVE PROXIMITY SENSOR
Quick Overview
Manufactured By: SUNX
Manufacturer Part Number: GXL-15F
IMS Product Code: 1806809
Packaging: Sold Individually
Description:
Sunx GXL-15F Inductive Proximity Sensor (Obsolete)
Specifications:
- Basic Type: Flat rectangular DC 3-wire
- Front, Top, End: Front Sense
- Size: 15mm
- Sensor Body Type: Non-metallic
- GX-F/H Series
- Supply Voltage: 12 to 24VDC
- Supply Voltage Details: 12 to 24VDC, +/-10% Ripple P-P 10% or less
- Current Consumption: 15mA or less
- Maximum Sensing Distance in MM: 5
- Maximum Sensing Distance Details: 5.0mm ±10%
- Stable Sensing Range: 0 to 4.0mm
- Hysteresis: 20% or less
- Repeatability: 0.04mm or less
- Response Time /Operating Frequency: 250Hz
- Output: NPN-NO
- Output Current: 100mA
- LED Indicator: Red LED indicator lights up when output is ON
- Sensing Head Operating Temperature: -10 to +55° C
- Sensing Head Protection: IP67

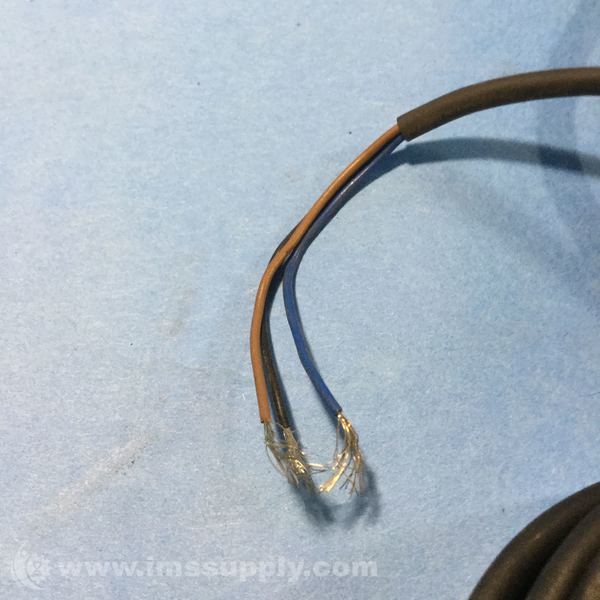

- Connection: 1M Cable
