SUNX SF4B-H96-01 TYPE 4 SAFETY LIGHT CURTAIN
Quick Overview
Manufactured By: SUNX
Manufacturer Part Number: SF4B-H96-01
IMS Product Code: 2121485
Packaging: Sold Individually
Description:

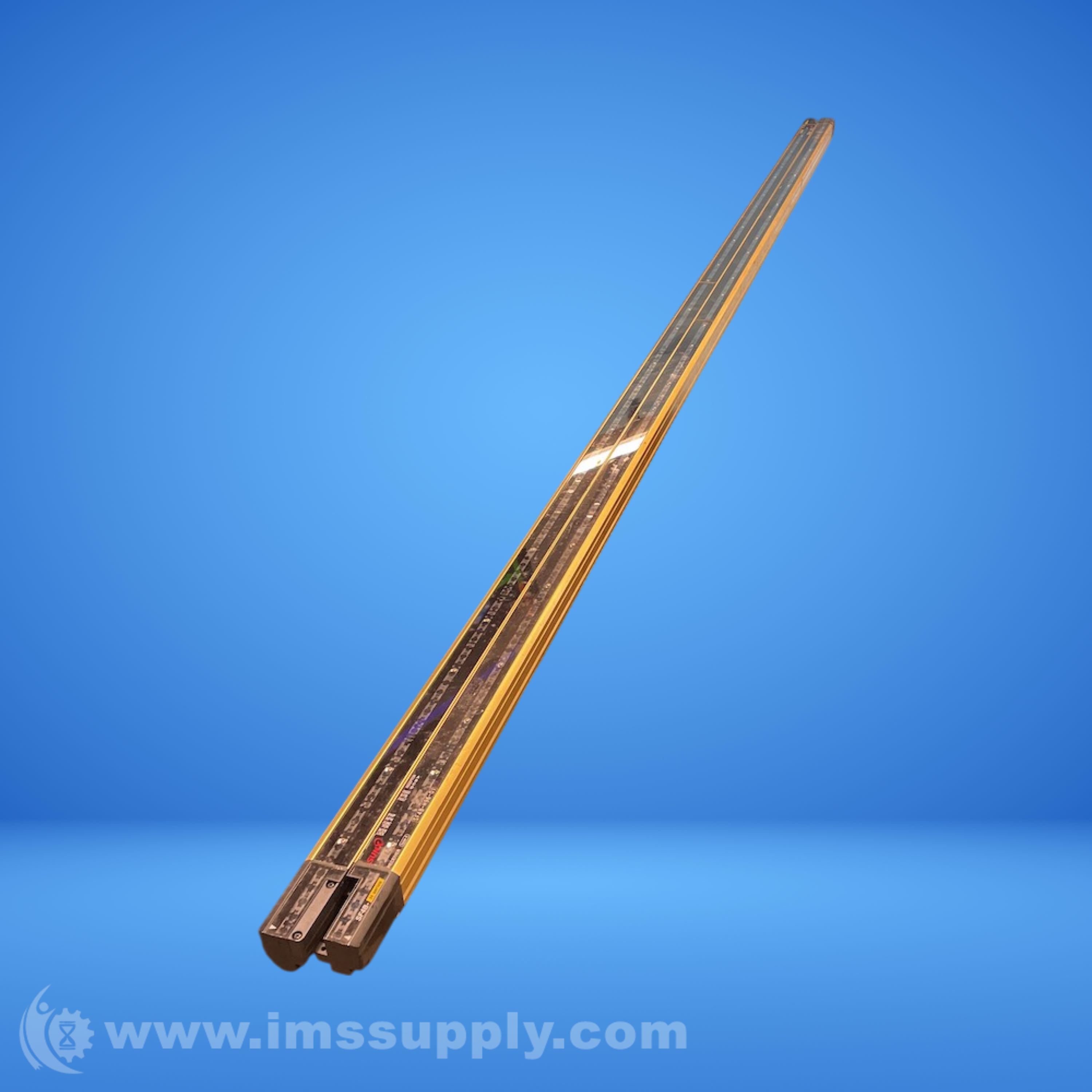

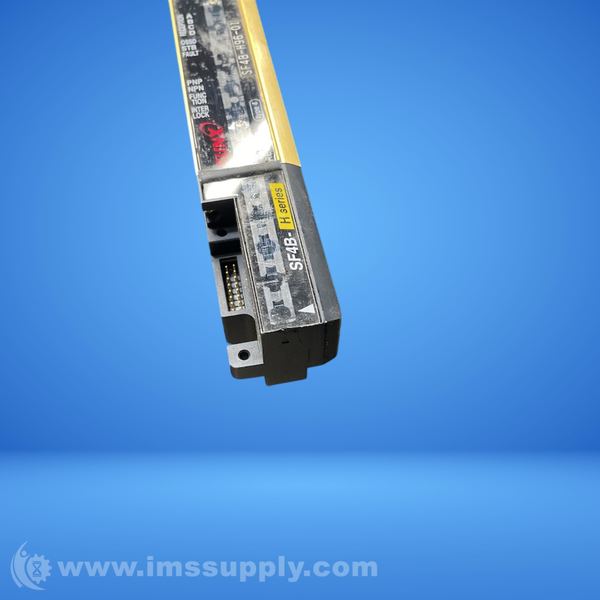

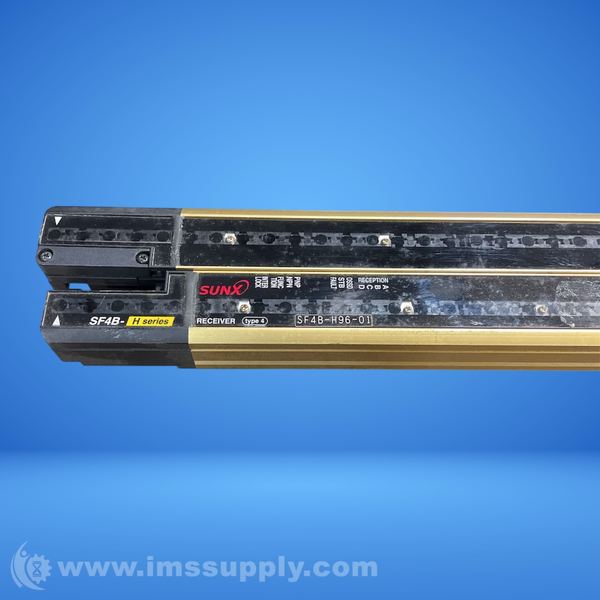

SUNX SF4B-H96-01 Type 4 Safety Light Curtain
Type 4 safety light curtain for hand protection with 96 beam channels and 1910 mm protective height.
Specifications
- Series: SF4B
- Type: Hand Protection
- Number of Beam Channels: 96
- Beam Pitch: 20 mm
- Protective Height: 1910 mm
- Supply Voltage: 24 V dc
- Current Rating: 120 mA (Emitter), 200 mA (Receiver)
- Output Type: NPN, PNP
- Operating Range: 0.3 to 7 m
- Response Time: 14 ms (OFF), 80 to 90 ms (ON)
- IP Rating: IP65, IP67
- Operating Temperature Range: -10 to 55 degrees C
- Relative Humidity: 30 to 85 %
- Material: Aluminium (Enclosure), Iron (Upper and Lower Edges), Polycarbonate and Polyester Resin (Sensing Surface), PBT (Cap)
- Dimensions: 1966 x 42 x 43 mm (Rear Mounting), 1966 x 43 x 55 mm (Side Mounting)
- Standards Met: CE, TUV, UL, OSHA/ANSI, S-Mark
New - Missing Box (Special):

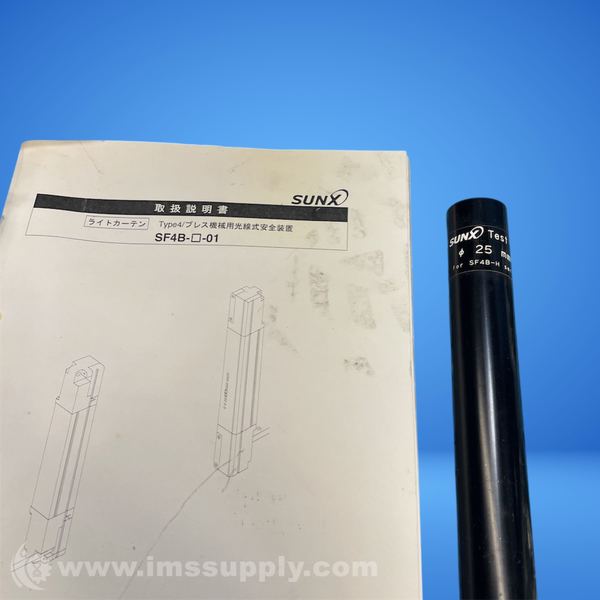

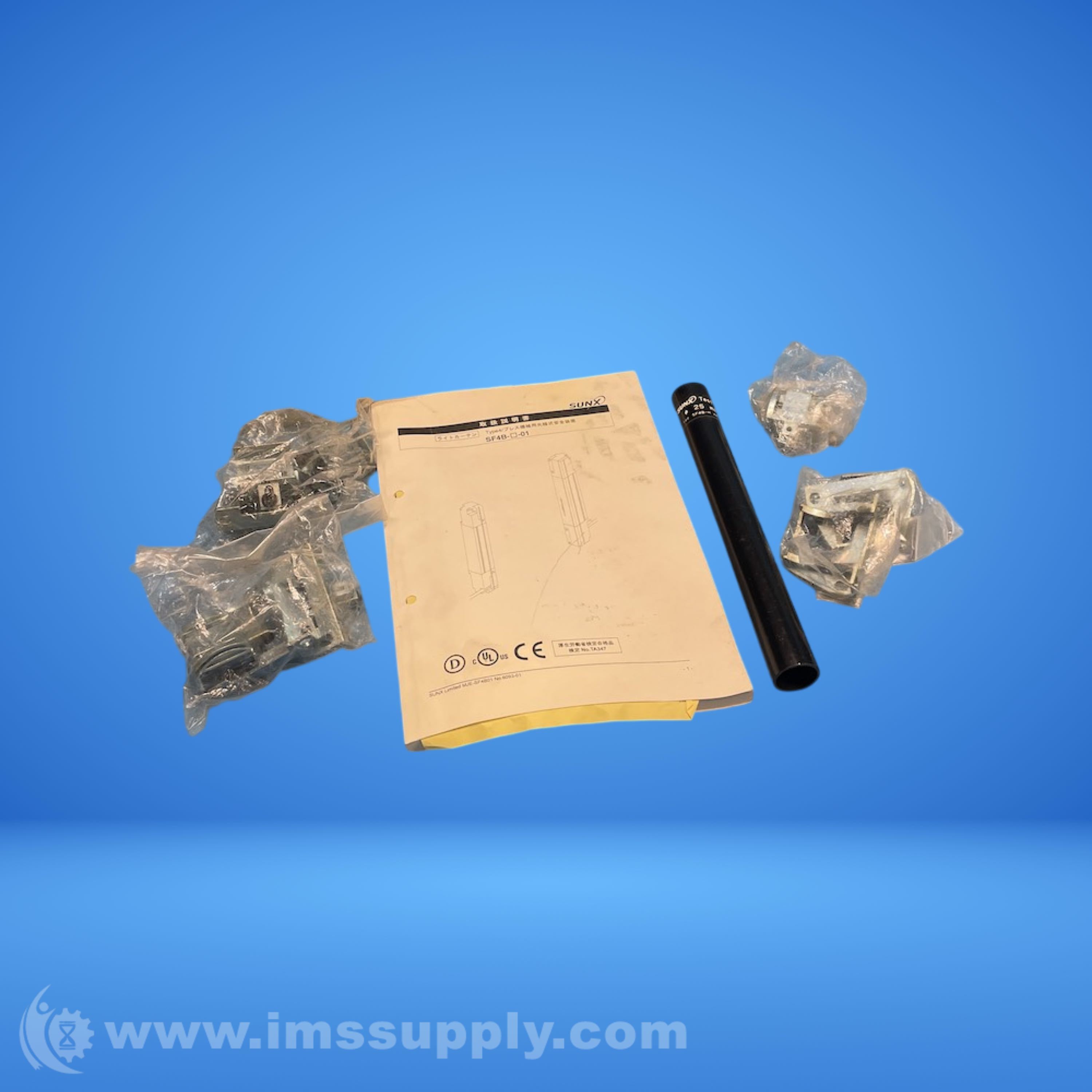

Part has hardware and manual.
Availability: 1 In Stock
Ships today if ordered in the next 2 hours and 48 minutes.
